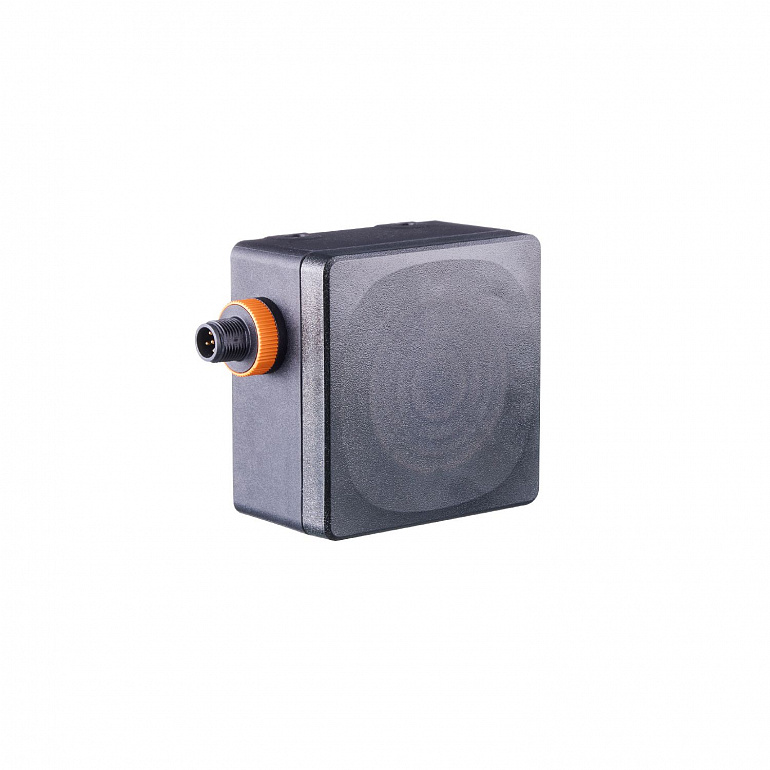

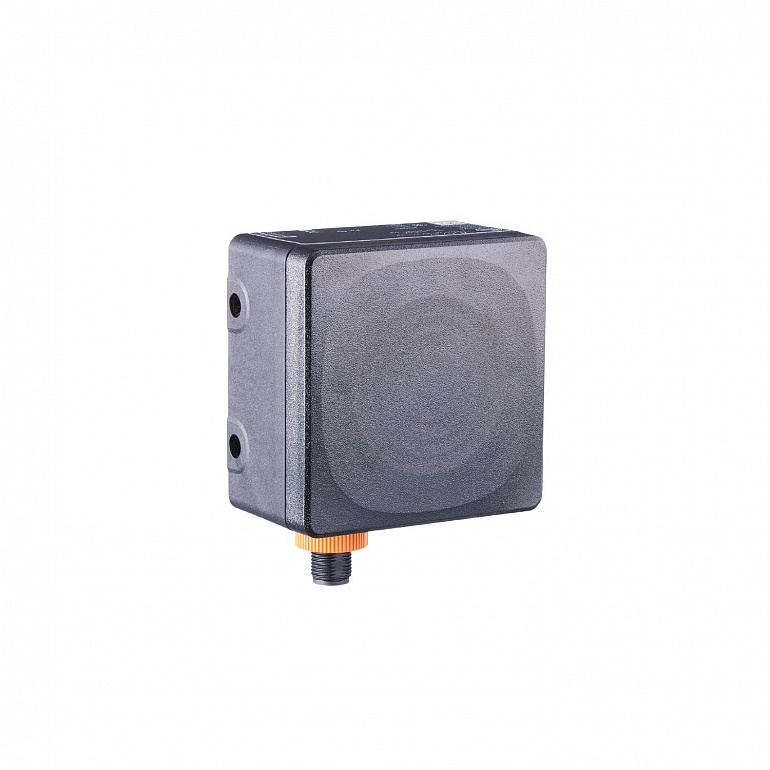

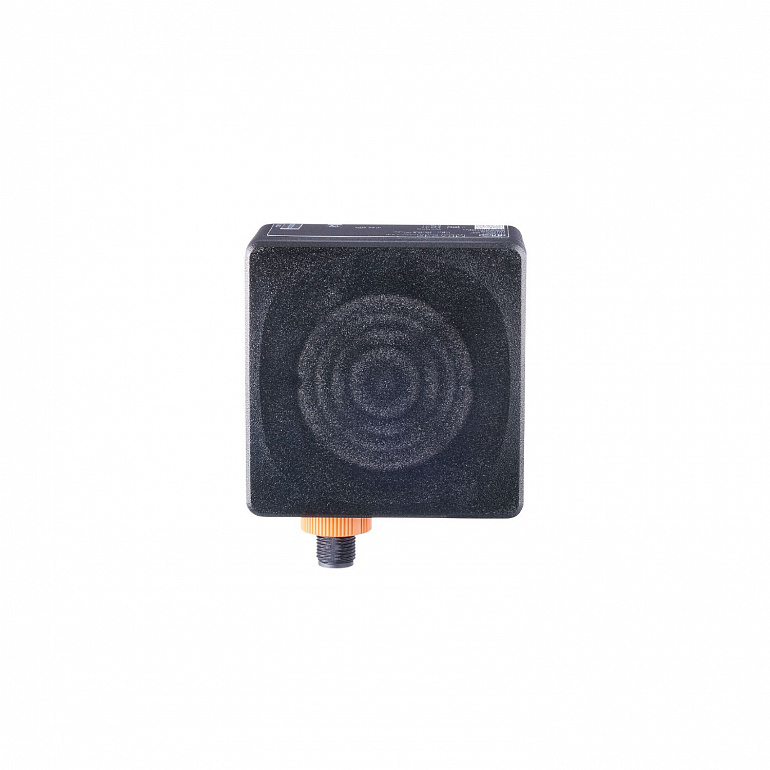

| Communication interface |
IO-Link |
| Housing |
rectangular |
| Dimensions |
80 x 80 x 45 |
| Electrical design |
PNP/NPN; (configurable) |
| Output function |
normally open / closed; (configurable) |
| Max. voltage drop switching output DC |
2.5 |
| Permanent current rating of switching output DC |
200 |
| Radio approval for |
USA; Canada; Chile |
| Operating voltage |
10...30 DC; (to SELV/PELV ; energy-limited circuits according to IEC/UL 61010-1 3rd ed. cl. 9.4) |
| Current consumption |
< 300; (mean value: 150 mA) |
| Power consumption |
21; (maximum) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Max. power-on delay time |
1000 |
| Operating frequency [GHz] |
|
| Radiated peak power EIRP [dBm] |
|
| Total number of inputs and outputs |
3 |
| Inputs |
| IN1 | activation/deactivation of the radar |
|
| Total number of outputs |
2 |
| Output signal |
| OUT1 | switching signal; IO-Link | | OUT2 | switching signal; analog signal |
|
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Analog current output |
4...20, invertible; (scalable) |
| Max. load |
500; (< 250 Ω: Ub 16...30 V DC; 250...500 Ω: Ub 18...30 V DC) |
| Analog voltage output |
0...10, invertible; (scalable) |
| Min. load |
2000 |
| Range |
0.1...35; (referred to a 10 cm corner reflector) |
| Angle of aperture cylindrical |
|
| Measuring range |
0.1...35; (see diagram:) |
| Sampling rate |
20...100 |
| Hysteresis |
5; (configurable) |
| Temperature coefficient analog output |
± 0,1 |
| Repeatability analog output [% of the span] |
|
| Linearity error of analog output [% of the span] |
|
| Precision analog output [% of the span] |
| ± 0,2 (in addition to the accuracy specifications in the further data section) |
|
| Parameter setting options |
only via IO-Link |
| Communication interface |
IO-Link |
| Transmission type |
COM3 (230,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
| BLOB | Binary Large Object transfer | | Common - I&D | Identification and Diagnosis | | Function | Locator | | Function | ProductURI |
|
| SIO mode |
yes |
| Required master port class |
A |
| Min. process cycle time |
3.2 |
| IO-Link process data (cyclical) |
| Function | bit length |
|---|
| Distance | 32 | | speed | 32 | | Power | 8 | | RCS | 8 | | sensor inclination | 1 | | device status | 4 | | binary switching information | 4 |
|
| IO-Link functions (acyclical) |
application specific tag; operating hours counter; number of trigger events; internal temperature; ROI setting |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 1518 |
|
| Ambient temperature |
-40...80 |
| Note on ambient temperature |
| without using the analog output: -40...85 °C |
|
| Storage temperature |
-40...85 |
| Protection |
IP 65; IP 66; IP 67; IP 69K; (with mounted connectors or protective caps) |
| EMC |
| DIN EN 61000-4-2 ESD | 4 kV CD / 8 kV AD | | DIN EN 61000-4-3 HF radiated | 10 V/m | | DIN EN 61000-4-4 Burst | 2 kV | | DIN EN 61000-4-6 HF conducted | 10 V | | DIN EN 61000-6-2 | noise immunity / industrial environments | | EN 55032 emission | class A |
|
| Impact resistance |
|
| Vibration resistance |
| DIN EN 60068-2-6 Fc | 10 g 10 frequency cycles, 1 octave/minute, in 3 axes |
|
| Shock resistance |
| DIN EN 60068-2-27 Ea | 50 g 11 ms half-sine; 10 shocks each in every direction along the 3 coordinate axes |
|
| Continuous shock resistance |
| DIN EN 60068-2-29 Eb | 40 g 6 ms half-sine; 4,000 shocks each in every direction along the 3 coordinate axes |
|
| Fast temperature changes |
| DIN EN 60068-2-14 Na | TA = -40°C; TB = 85°C; t1 = 30 min; t2 = < 30 s; 300 cycles |
|
| Salt spray test |
| DIN EN 60068-2-11 Ka | 8 test cycles |
|
| Electrical safety |
| DIN EN 61010-2-201 | electric shock / electrical supply only via SELV/PELV circuits |
|
| MTTF |
53 |
| UL approval |
| Ta | -40...65 °C | | File number UL | E205959 |
|
| Weight |
413.5 |
| Housing |
rectangular |

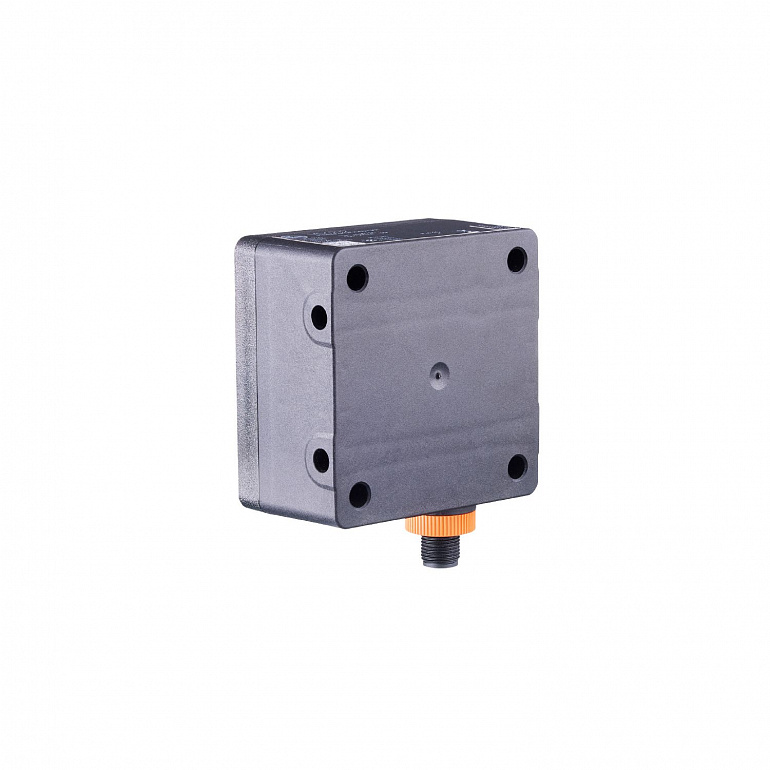

| Mounting |
flush mountable |
| Dimensions |
80 x 80 x 45 |
| Material |
housing: PA; radome: PEI; sealing: HNBR |
| Display |
| Switching status | 2x LED, yellow | | Power | 1x LED, green | | errors | 1x LED, red |
|
| Pack quantity |
1 pcs. |
| Connection |
Connector: 1 x M12; coding: A |
