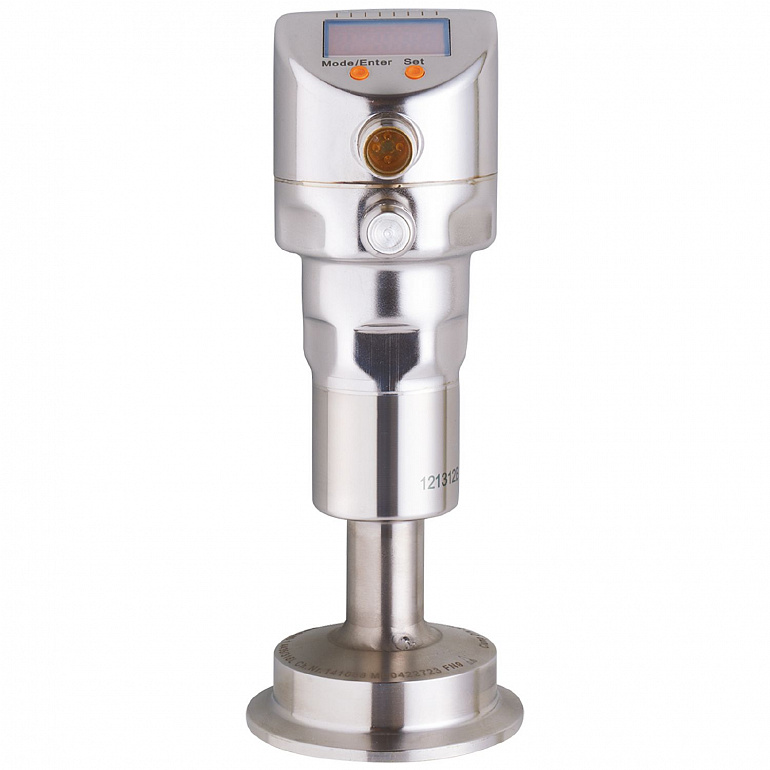

| Number of inputs and outputs |
Number of digital outputs: 2; Number of analog outputs: 1 |
| Measuring range |
| -1...25 bar | -14.4...362.7 psi | -0.1...2.5 MPa |
|
| Process connection |
Clamp DN50 (2") DIN 32676 (ISO 2852) |
| System |
gold-plated contacts |
| Application |
flush mountable for the food and beverage industry |
| Media |
viscous media and liquids with suspended particles; liquids and gases |
| Medium temperature |
-20...200; (-20...90 < 0 bar) |
| Min. bursting pressure |
|
| Pressure rating |
|
| Type of pressure |
relative pressure; vacuum |
| Min. insulation resistance |
100; (500 V DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Integrated watchdog |
yes |
| Step response time analog output |
45 |
| Min. response time of switching output (dAP) |
3 |
| Step response time analog output |
7 |
| Number of inputs and outputs |
Number of digital outputs: 2; Number of analog outputs: 1 |
| Total number of outputs |
2 |
| Output signal |
switching signal; analog signal; IO-Link; (configurable) |
| Electrical design |
PNP/NPN |
| Number of digital outputs |
2 |
| Output function |
normally open / closed; (configurable) |
| Number of analog outputs |
1 |
| Analog current output |
4...20, invertible; (scalable) |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Measuring range |
| -1...25 bar | -14.4...362.7 psi | -0.1...2.5 MPa |
|
| Set point SP |
| -0.96...25 bar | -13.8...362.7 psi | -0.096...2.5 MPa |
|
| Reset point rP |
| -1...24.96 bar | -14.4...362.1 psi | -0.1...2.496 MPa |
|
| Analog start point |
| -1...18.74 bar | -14.4...271.8 psi | -0.1...1.874 MPa |
|
| Analog end point |
| 5.24...25 bar | 76.2...362.7 psi | 0.524...2.5 MPa |
|
| In steps of |
|
| Factory setting |
| SP1 = 6.24 bar | rP1 = 5.74 bar | | SP2 = 18.74 bar | rP2 = 18.24 bar | | ASP = 0.00 bar | AEP = 25.00 bar |
|
| Switch point accuracy |
< ± 0,2; (Turn down 1:1) |
| Repeatability |
< ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1) |
| Characteristics deviation |
< ± 0,2; (Turn down 1:1 , linearity, incl. hysteresis and repeatability , limit value setting to DIN EN IEC 62828-1) |
| Linearity deviation |
< ± 0,15; (Turn down 1:1) |
| Hysteresis deviation |
< ± 0,15; (Turn down 1:1) |
| Long-term stability |
< ± 0,1; (Turn down 1:1; per year) |
| Temperature coefficient zero point |
< ± 0,2; (0...200 °C) |
| Temperature coefficient span |
< ± 0,15; (0...200 °C) |
| Damping process value dAP |
0...30 |
| Damping for the analog output dAA |
0.01...99.99 |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.0 |
| SDCI standard |
IO-Link Communication Specification, Version 1.0, January 2009, Ordner No: 10.002 |
| SIO mode |
yes |
| Required master port class |
A |
| Process data analog |
1 |
| Process data binary |
2 |
| Min. process cycle time |
2.3 |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 156 |
|
| Ambient temperature |
-25...65 |
| Note on ambient temperature |
| Medium temperature: ≤ 200 °C |
|
| Storage temperature |
-25...100 |
| Protection |
IP 67; IP 68; IP 69K |
| EMC |
| DIN EN 61000-6-2 | | | DIN EN 61000-6-3 | |
|
| Shock resistance |
| DIN EN 60068-2-27 | 50 g (11 ms) |
|
| Vibration resistance |
| DIN EN 60068-2-6 | 20 g (10...2000 Hz) |
|
| MTTF |
142 |
| Note on approval |
| Including free 6-point calibration certificate. |
|
| Weight |
1199.2 |
| Housing |
tubular |
| Dimensions |
Ø 50 / L = 163 |
| Material |
stainless steel (1.4404 / 316L); stainless steel (1.4435 / 316L); PBT; PEI; PFA |
| Materials (wetted parts) |
stainless steel (1.4435 / 316L) |
| Min. pressure cycles |
10 million |
| Process connection |
Clamp DN50 (2") DIN 32676 (ISO 2852) |
| Surface characteristics Ra/Rz of the wetted parts |
Ra < 0.38 µm |
| Fill fluid for pressure transfer |
NEOBEE (food grade, FDA compliant) |
| Diaphragm diameter |
47.5 |
| Display |
| Display unit | LED, green | | Switching status | LED, yellow | | Function display | alphanumeric display, 4-digit | | Measured values | alphanumeric display, 4-digit |
|
| Display unit |
bar; psi; MPa; % of the span |
| Pack quantity |
1 pcs. |
|
Connector: 1 x M12; coding: A; Contacts: gold-plated |
