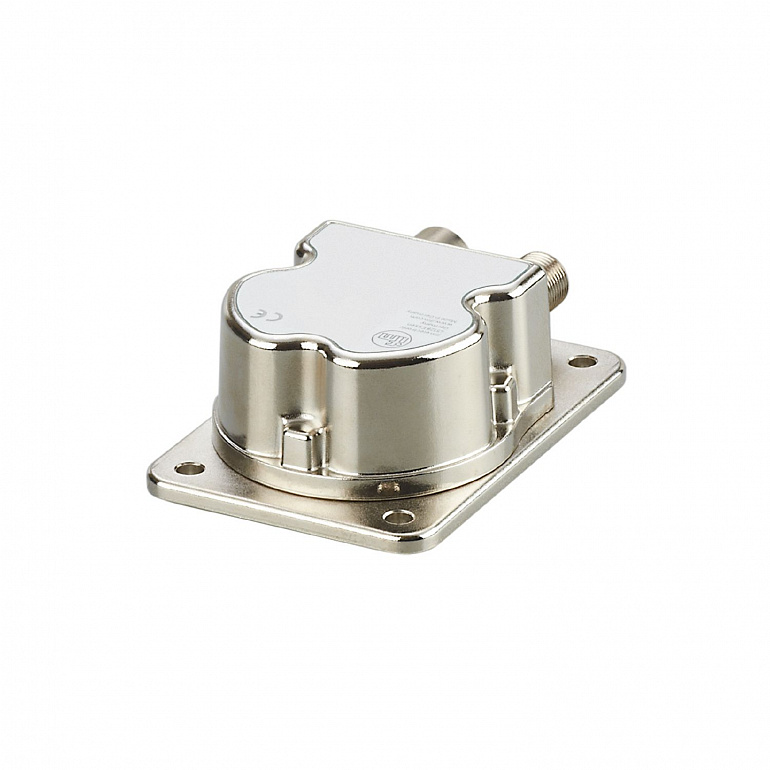

| Measuring principle |
MEMS capacitive |
| Communication interface |
CAN |
| Number of measurement axes |
2 |
| Angular range |
0…360 / ± 180 |
| Limit frequency |
0.5...10; (configurable) |
| Function principle |
static |
| Application |
High-precision inclination measurement in 2 axes for mobile applications |
| Operating voltage |
9.2...30 DC |
| Current consumption |
70; (24 V DC, 25 °C) |
| Max. current consumption |
310; (9,2 V DC; -40 °C) |
| Min. insulation resistance |
100; (500 V DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time |
300; (warm-up time; Max. initialization time: 1000 ms) |
| Measuring principle |
MEMS capacitive |
| Measuring range of vibration |
3200 |
| Frequency range |
0.1...400 |
| Number of measurement axes |
X/Y/Z configurable |
| Accuracy |
≤ ± 0,5; (absolute) |
| Hysteresis |
≤ ± 0.05 |
| Repeatability |
≤ ± 0,1 |
| Resolution |
0.1 |
| Temperature coefficient |
≤ ± 0,02 ° |
| Communication interface |
CAN |
| Number of CAN interfaces |
1 |
| Terminating resistor |
yes; (internal ; configurable) |
| Protocol |
SAE J1939 |
| Factory settings |
| Baud rate: 250 kBit/s | | device address (ECU): 25 |
|
| Ambient temperature |
-40...85 |
| Storage temperature |
-40...85 |
| Protection |
IP 65; IP 67; IP 68; IP 69K |
| EMC |
| DIN EN 61000-4-2 ESD | 4 kV CD / 8 kV AD | | DIN EN 61000-4-3 HF radiated | 10 V/m | | DIN EN 61000-4-4 Burst | 2 kV | | DIN EN 61000-4-6 HF conducted | 10 V | | DIN EN 55022 class B / CISPR 16-2-3 | 30 - 1000 MHz | | CISPR 25 ECE R 10 | 30 - 1000 MHz narrowband and broadband | | ISO 11452-2 ECE R 10 | 20 - 2000 MHz / 30 V/m | | ISO 7637-2 ECE R 10 | pulse 1, 2a, 2b, 3a, 3b, 4, and pulse emission during operation, switching-on, switching-off | | ISO 7637-3 | - 80 V pulse a / + 80 V pulse b |
|
| Shock resistance |
| DIN EN 60068-2-27 | 100 g 1 ms / 10000 Impacts per axis (X/Y) | | DIN EN 60068-2-29 | 30 g 6 ms / 24000 shock (bump) |
|
| Vibration resistance |
| DIN EN 60068-2-64 | 10...2000 Hz Test VII / random, mounting place car body | | DIN EN 60068-2-6 | 10...500 Hz / 10 g 10 cycles/axis, sine |
|
| Salt spray test |
| DIN EN 60068-2-52 | severity level 5 (motor vehicle) |
|
| Damp heat |
| DIN EN 60068-2-30 | 55 °C cyclic upper temperature / 95 % rh 2 cycles of 24 h |
|
| MTTF |
372 |
| Standard |
Compliant with ECE R 10, rev. 5; ISO 7637-3: 2007-07 |
| Weight |
415 |
| Dimensions |
90 x 62 x 33.2 |
| Material |
housing: diecast zinc nickel-plated |
| Mounting orientation |
Horizontal |
| Display |
| Run mode | 1 x LED, green | | fault | 1 x LED, red |
|
| Items supplied |
|
| Remarks |
| the device complies with overvoltage category II |
|
| Pack quantity |
1 pcs. |
|

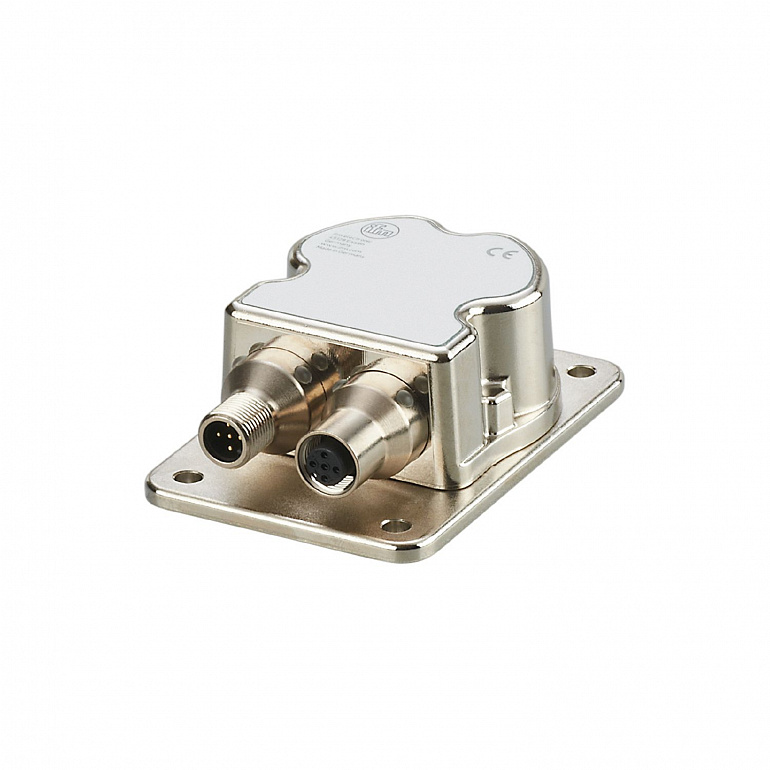

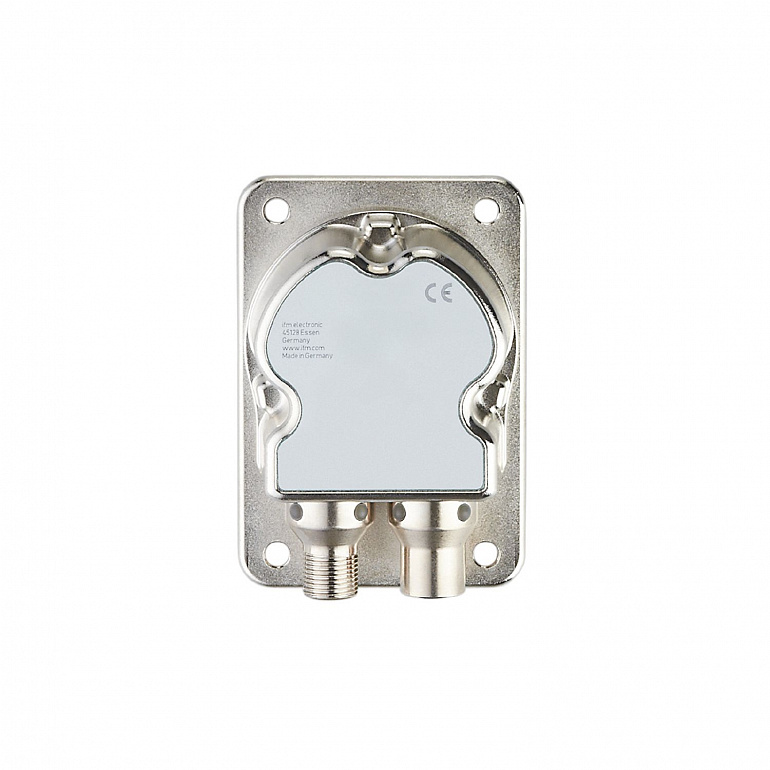

Connector: 1 x M12; coding: A |
|
Connector: 1 x M12; coding: A |
