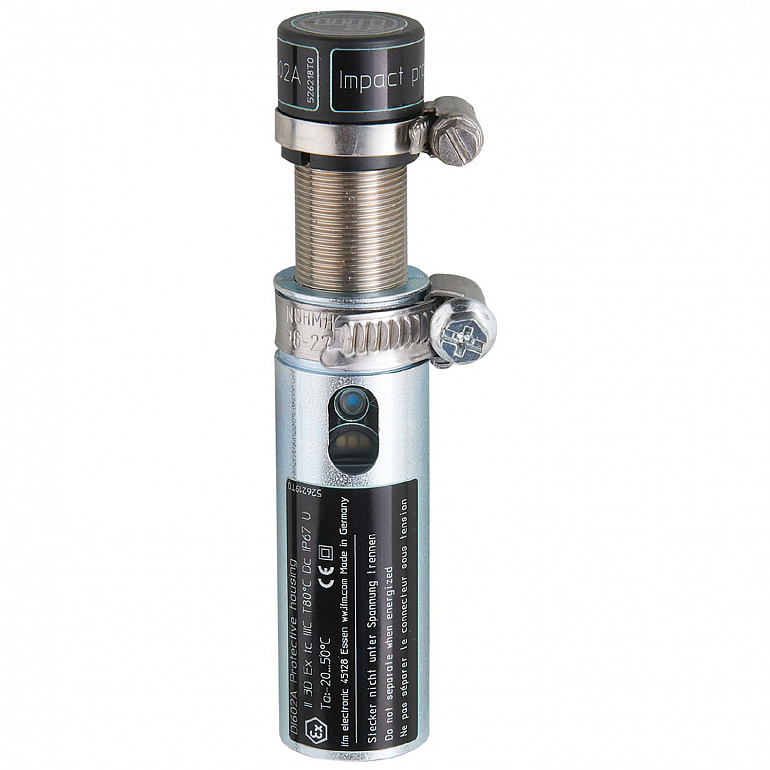

| Electrical design |
PNP |
| Output function |
normally open / closed; (configurable) |
| Sensing range |
8 |
| Housing |
tubular |
| Dimensions |
M18 x 1 / L = 119 |
| System |
gold-plated contacts |
| Application |
evaluation of rotating and linear movements with regard to underspeed; blocking |
| Nominal voltage DC |
10...36 |
| Current consumption |
< 15 |
| Protection class |
II |
| Reverse polarity protection |
yes |
| Electrical design |
PNP |
| Output function |
normally open / closed; (configurable) |
| Max. voltage drop switching output DC |
2.5 |
| Permanent current rating of switching output DC |
150; (when used outside the hazardous area: 250; Pulse output: 15) |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Sensing range |
8 |
| Sensing range adjustable |
no |
| Operating distance |
0...6 |
| Setting range |
3...6000 |
| Measuring principle |
inductive |
| Correction factor |
steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 |
| Hysteresis |
10 |
| Start-up delay |
0...15 |
| Max. damping frequency |
18000 |
| Adjustment of the switch point |
Teach function |
| Ambient temperature |
-20...50 |
| Note on ambient temperature |
| when used outside the hazardous area: -20...60 °C |
|
| Storage temperature |
-25...60 |
| Protection |
IP 67 |
| ATEX marking |
II 3D Ex tc IIIC T80°C Dc IP67 U |
| Note on ATEX marking |
| only in conjunction with the impact protective housing |
|
| EMC |
|
| MTTF |
1051 |
| Weight |
177 |
| Housing |
tubular |
| Mounting |
non-flush mountable |
| Dimensions |
M18 x 1 / L = 119 |
| Thread designation |
M18 x 1 |
| Material |
housing: stainless steel (1.4571/316Ti ); PBT; TPE-U |
| Display |
| Switching status | 1 x LED, yellow | | Power | 1 x LED, green | | input signal | 1 x LED, green |
|
| Items supplied |
| lock nuts: 2 | | impact protection housing | | Mounting clamp |
|
| Pack quantity |
1 pcs. |
| Connection |
Connector: 1 x M12; coding: A; Contacts: gold-plated |
