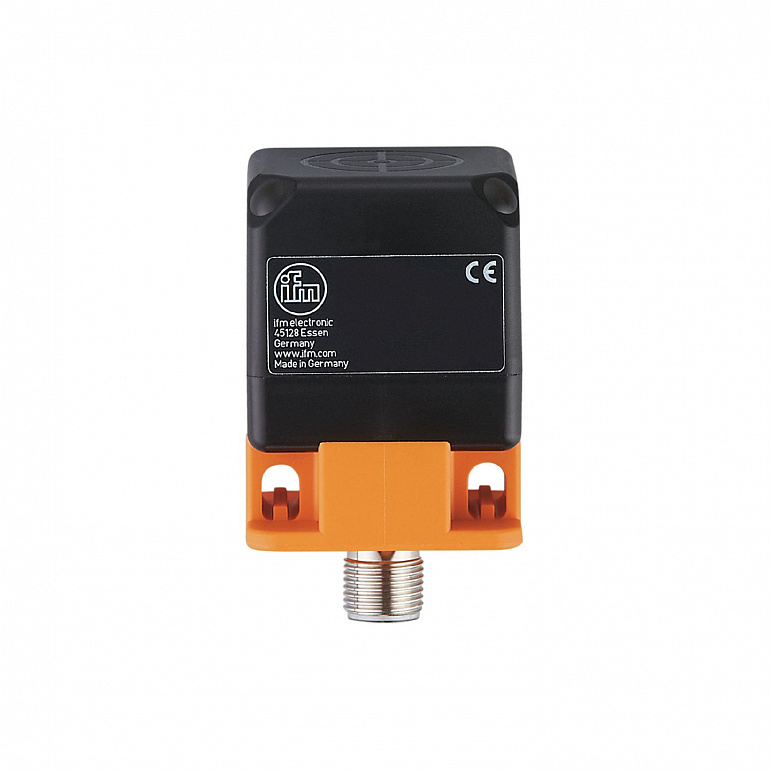

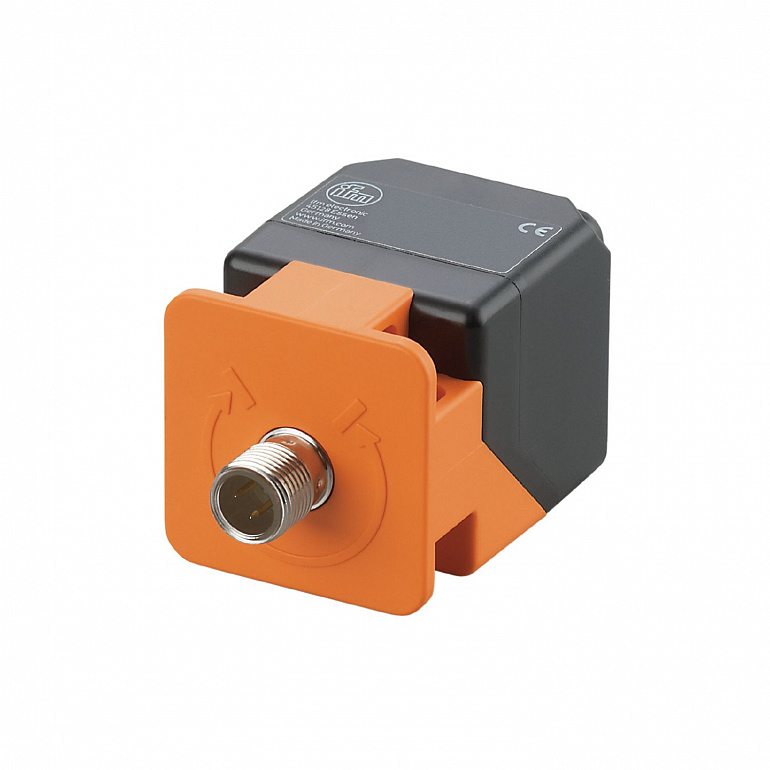

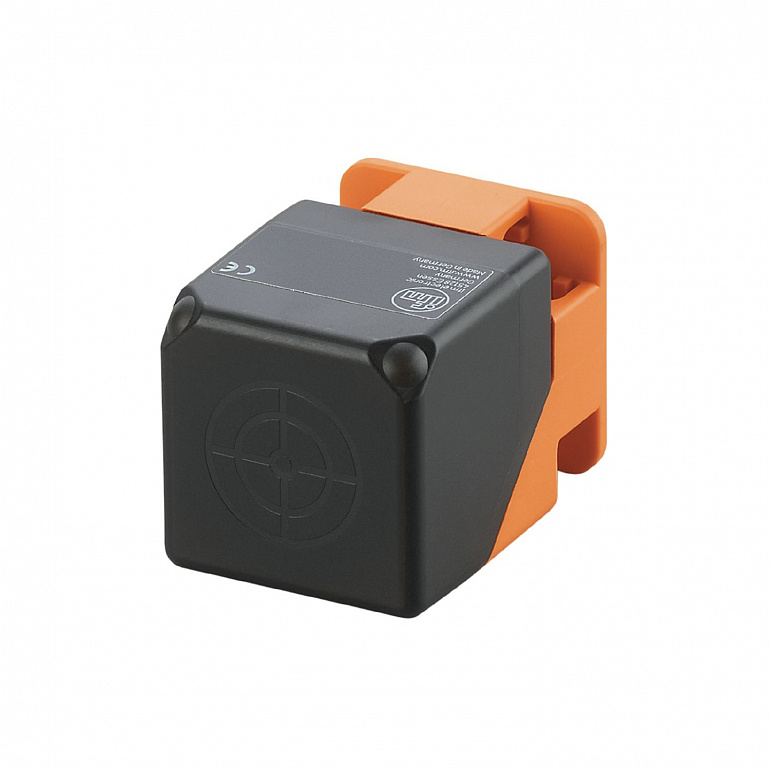

| Electrical design |
PNP/NPN |
| Output function |
normally open / closed; (configurable) |
| Sensing range |
24 |
| Communication interface |
IO-Link |
| Housing |
rectangular |
| Dimensions |
40 x 40 x 54 |
| Application |
simple evaluation of rotating and linear movement with regard to underspeed; blocking |
| Nominal voltage DC |
10...30 |
| Current consumption |
< 10 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Electrical design |
PNP/NPN |
| Output function |
normally open / closed; (configurable) |
| Max. voltage drop switching output DC |
2.5 |
| Permanent current rating of switching output DC |
100 |
| Short-circuit proof |
yes |
| Overload protection |
yes |
| Sensing range |
24 |
| Sensing range adjustable |
no |
| Operating distance |
0...19.44 |
| Setting range |
5...9600 |
| Measuring principle |
inductive |
| Correction factor |
steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 |
| Hysteresis |
10 |
| Start-up delay |
0...30; (In steps of: 100 ms; default: 15 s) |
| Max. damping frequency |
12000 |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| Profiles |
| Smart Sensor - SSP 0 | Generic Profiled Sensor | | Function | Device identification | | Function | Multiple switching signal | | Function | Process data variable | | Function | Device diagnosis | | Function | Teach channel |
|
| Min. process cycle time |
3.2 |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 913 |
|
| Ambient temperature |
-40...85 |
| Storage temperature |
-25...85 |
| Protection |
IP 67 |
| EMC |
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD | | EN 61000-4-3 HF radiated | 10 V/m | | EN 61000-4-4 Burst | 2 kV | | EN 61000-4-6 HF conducted | 10 V | | EN 55011 | class B | | EN 60947-5-2 | |
|
| MTTF |
636 |
| UL approval |
|
| Weight |
182 |
| Housing |
rectangular |
| Mounting |
non-flush mountable |
| Dimensions |
40 x 40 x 54 |
| Material |
housing: PA |
| Display |
| Power | LED, green | | SIO mode | | | output stage supplied with current | 4 x LED, yellow | | IO-Link mode | | | target in measuring range | 4 x LED, yellow | | target outside measuring range | 4 x LED, yellow flashing |
|
| Pack quantity |
1 pcs. |
| Connection |
Connector: 1 x M12; coding: A; Moulded body: brass, white bronze coated |
