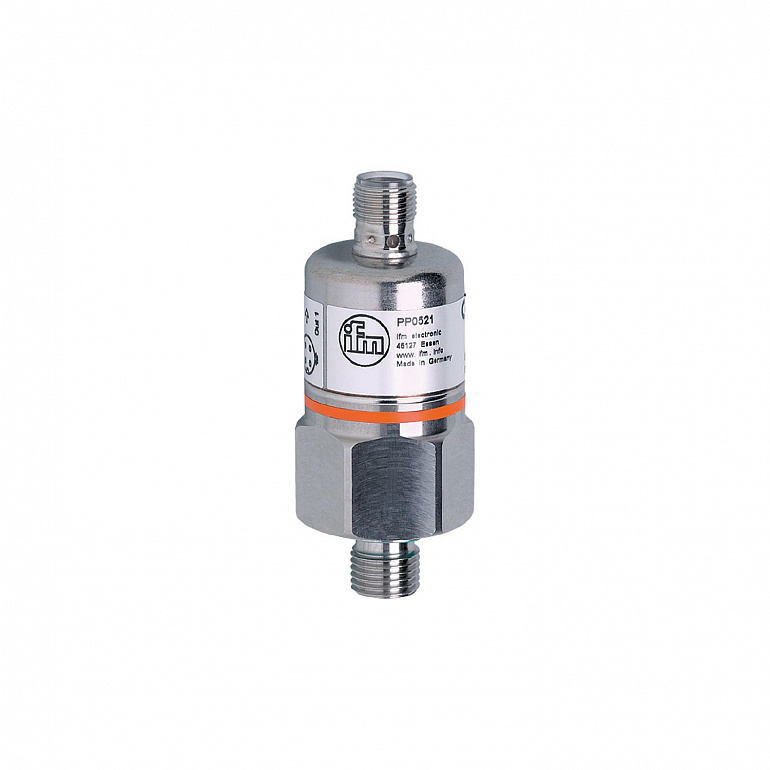

| Number of inputs and outputs |
Number of digital outputs: 2 |
| Measuring range |
| 0...25 bar | 0...363 psi | 0...2.5 MPa |
|
| Process connection |
threaded connection G 1/4 external thread Internal thread:M5 |
| Application |
for industrial applications |
| Media |
liquids and gases |
| Medium temperature |
-25...90 |
| Min. bursting pressure |
|
| Pressure rating |
|
| Type of pressure |
relative pressure |
| Operating voltage |
9.6...36 DC; (communication mode: 18...32) |
| Current consumption |
< 45 |
| Min. insulation resistance |
100; (500 V DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time |
0.3 |
| Number of inputs and outputs |
Number of digital outputs: 2 |
| Total number of outputs |
2 |
| Output signal |
switching signal |
| Electrical design |
NPN |
| Number of digital outputs |
2 |
| Output function |
normally open / closed; (configurable) |
| Max. voltage drop switching output DC |
2 |
| Permanent current rating of switching output DC |
250 |
| Switching frequency DC |
170 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Measuring range |
| 0...25 bar | 0...363 psi | 0...2.5 MPa |
|
| Set point SP |
| 0.2...25 bar | 4...362 psi | 0.02...2.5 MPa |
|
| Reset point rP |
| 0.1...24.9 bar | 2...360 psi | 0.01...2.49 MPa |
|
| In steps of |
|
| Factory setting |
| SP1 = 6.3 bar | rP1 = 5.8 bar | | SP2 = 18.8 bar | rP2 = 18.3 bar | | OUT1 = Hno | OUT2 = Hno |
|
| Switch point accuracy |
< ± 0,5 |
| Repeatability |
< ± 0,1; (with temperature fluctuations < 10 K) |
| Characteristics deviation |
< ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting) |
| Hysteresis deviation |
< ± 0,1 |
| Long-term stability |
< ± 0,1; (per year) |
| Temperature coefficient zero point |
< ± 0,2; (0...80 °C) |
| Temperature coefficient span |
< ± 0,2; (0...80 °C) |
| Response time |
< 3 |
| Damping process value dAP in steps |
0,003 - 0,006 - 0,010 - 0,017 - 0,060 - 0,125 - 0,250 - 0,500 |
| Ambient temperature |
-25...85 |
| Storage temperature |
-40...100 |
| Protection |
IP 68; (7 days / 1 m water depth / 0.1 bar) |
| EMC |
| noise immunity | EN 61000-6-2 | | EN 61000-4-2 ESD | 4 kV contact discharge / 15 kV air discharge | | EN 61000-4-3 HF radiated | 20 V/m | | EN 61000-4-4 Burst | 4 kV coupling clamp | | EN 61000-4-5 Surge | 0,5 kV supply / 1 kV signal for DC units | | EN 61000-4-6 HF conducted | 30 V |
|
| Shock resistance |
| DIN IEC 60068-2-27 / DIN IEC 60068-2-29 | 1000 g | | DIN EN 61373 | Category 3 |
|
| Vibration resistance |
| DIN IEC 68-2-6 | 20 g (10...2000 Hz) | | DIN EN 60068-2-64 | 14 g | | DIN EN 61373 | Category 2 |
|
| MTTF |
309 |
| Pressure equipment directive |
sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Weight |
227 |
| Housing |
tubular |
| Dimensions |
Ø 30 / L = 79.5 |
| Material |
stainless steel (1.4301 / 304); FKM; EPDM/X; PA |
| Materials (wetted parts) |
stainless steel (1.4305 / 303); ceramics; FKM |
| Min. pressure cycles |
100 million |
| Process connection |
threaded connection G 1/4 external thread Internal thread:M5 |
| Restrictor element integrated |
no (can be retrofitted) |
| Display |
| Power | 2 x LED, green | | Switching status | 2 x LED, yellow |
|
| Teach function |
yes |
| Pack quantity |
1 pcs. |
| Connection |
Connector: 1 x M12; coding: A |
