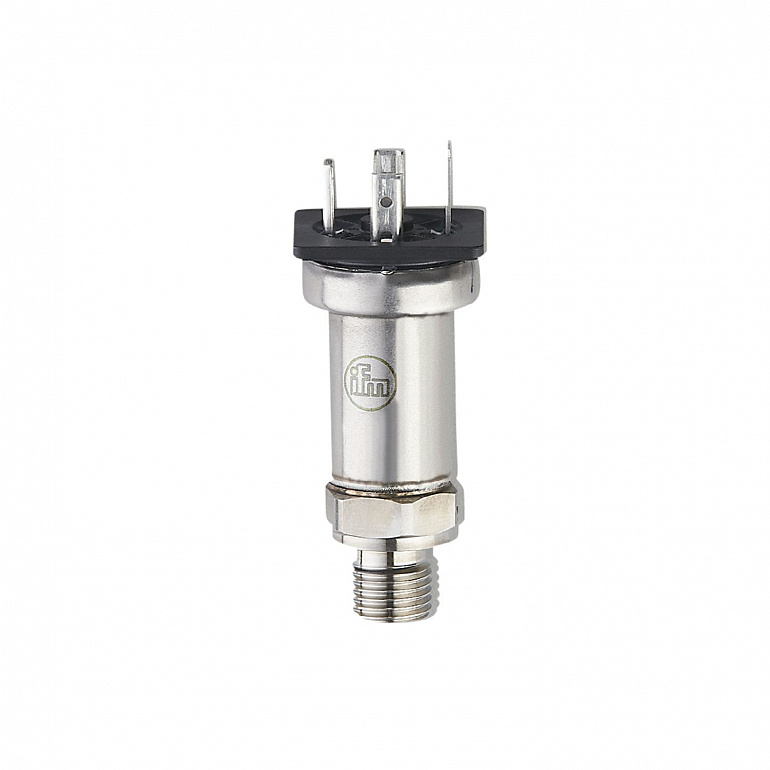

| Number of inputs and outputs |
Number of analog outputs: 1 |
| Measuring range |
| 0...160 bar | 0...2320 psi | 0...16 MPa |
|
| Process connection |
threaded connection G 1/4 external thread (DIN EN ISO 1179-2) |
| Measuring element |
metallic thin film cell |
| Application |
for mobile applications; for industrial applications |
| Media |
liquids and gases |
| Medium temperature |
-40...125 |
| Min. bursting pressure |
|
| Pressure rating |
|
| Note on pressure rating |
|
| Vacuum resistance |
|
| Type of pressure |
relative pressure |
| Operating voltage |
8...36 DC |
| Min. insulation resistance |
100; (500 V DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time |
< 0.1 |
| Number of inputs and outputs |
Number of analog outputs: 1 |
| Total number of outputs |
1 |
| Output signal |
analog signal |
| Number of analog outputs |
1 |
| Analog current output |
4...20 |
| Max. load |
(Ub - 8 V) / 21,5 mA ; @8V= 0 Ω ; @12V max. 200 Ω: @24V max. 750 Ω |
| Short-circuit proof |
yes |
| Overload protection |
yes |
| Measuring range |
| 0...160 bar | 0...2320 psi | 0...16 MPa |
|
| Repeatability |
< ± 0,05; (with temperature fluctuations < 10 K) |
| Characteristics deviation |
< ± 0,5; (incl. drift when overtightened, zero point and span error, non-linearity, hysteresis) |
| Linearity deviation |
< ± 0,1 (BFSL) / < ± 0,2 (LS) |
| Hysteresis deviation |
< ± 0,2 |
| Long-term stability |
< ± 0,1; (per 6 months) |
| Temperature coefficient zero point |
< ± 0,1 (0...80 °C); < ± 0,2 (-40...0 °C / 80...125 °C) |
| Temperature coefficient span |
< ± 0,1 (0...80 °C); < ± 0,2 (-40...0 °C / 80...125 °C) |
| Step response time analog output |
2 |
| Ambient temperature |
-40...100 |
| Storage temperature |
-40...100 |
| Protection |
IP 67 |
| EMC |
| Compliant with ECE R 10, rev. 5 | (E1 compliant) | | DIN EN ISO 13766-1 : 2018 | earth-moving and construction machines | | DIN EN ISO 14982 : 2009 | agricultural and forestry machines | | ISO 11452-2 | 100 V/m | | ISO 7637-2 : 2011 pulse 1 | Test severity III. function state C | | ISO 7637-2 : 2011 pulse 2b | test severity IV. function state C | | DIN EN 61326-1 | |
|
| Shock resistance |
| DIN EN 60068-2-27 | 500 g (1 ms) |
|
| Vibration resistance |
| DIN EN 60068-2-6 | 20 g (10...2000 Hz) |
|
| MTTF |
715 |
| UL approval |
| UL approval number | J033 | | File number UL | E174189 |
|
| Pressure equipment directive |
sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Weight |
68 |
| Housing |
tubular |
| Dimensions |
Ø 19 / L = 71 |
| Material |
stainless steel (630/1.4542/17-4 PH); stainless steel (1.4404 / 316L); PPS |
| Materials (wetted parts) |
stainless steel (630/1.4542/17-4 PH); stainless steel (1.4305 / 303) |
| Min. pressure cycles |
60 million; (at 1.2 times nominal pressure) |
| Tightening torque |
25...35; (recommended tightening torque; Depends on lubrication, seal and pressure rating) |

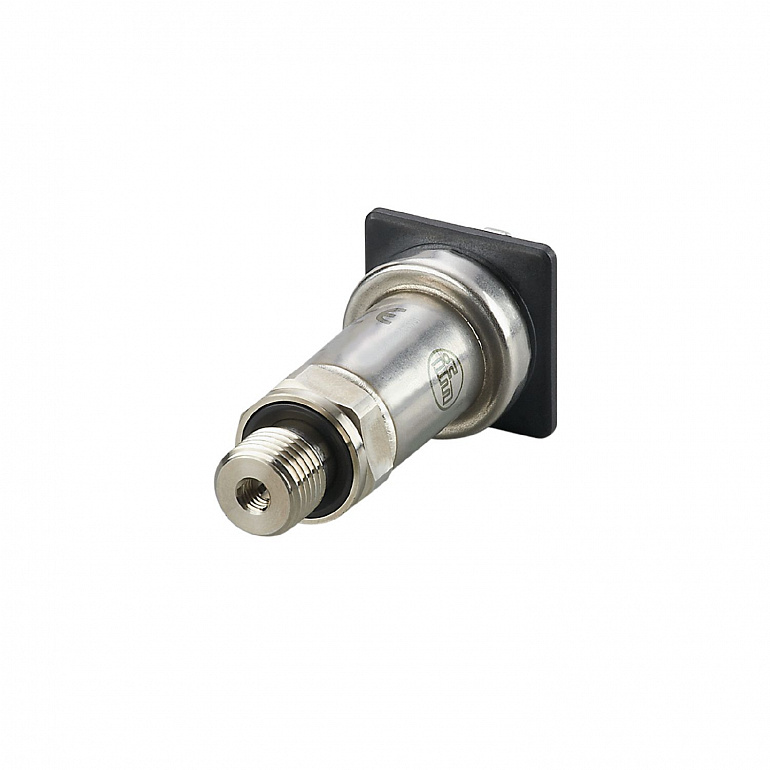

| Process connection |
threaded connection G 1/4 external thread (DIN EN ISO 1179-2) |
| Process connection sealing |
FKM (DIN EN ISO 1179-2) |
| Restrictor element integrated |
yes |
| Remarks |
| BFSL = Best Fit Straight Line | | LS = limit value setting |
|
| Pack quantity |
1 pcs. |

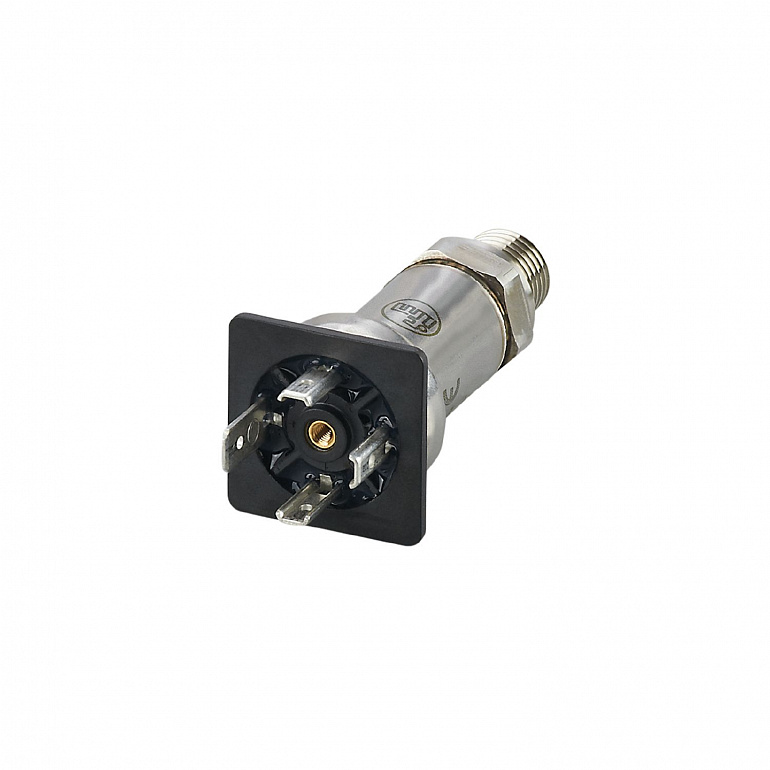

| Connection |
Connector: 1 x valve plug type A DIN (EN175301-803-A) |
