| Type of light |
red light |
| Laser protection class |
1 |
| Housing |
rectangular |
| Operating voltage |
10...30 DC; (cULus - Class 2 source required) |
| Current consumption |
< 200; (10 V) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time |
2 |
| Type of light |
red light |
| Wave length |
650 |
| Number of inputs and outputs |
Number of digital inputs: 1; Number of digital outputs: 2 |
| Trigger |
external |
| Number of digital inputs |
1 |
| Electrical design |
PNP/NPN; (configurable) |
| Number of digital outputs |
2 |
| Output function |
2 x normally open / normally closed; (configurable) |
| Max. current load per output |
100 |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Measuring distance (Z-direction) |
150...300 |
| Width of the measuring range (X-direction) at min. measuring distance |
45; (distance = 150mm) |
| Width of the measuring range (X-direction) at max. measuring distance |
90; (distance = 300mm) |
| Sampling rate |
5 |
| Measured value resolution |
| Z-direction 200 µm | | X-direction 250 µm |
|
| Accuracy |
| Z-direction ± 500 µm | | X-direction ± 500 µm | | Background white (90 % remission) |
|
| Number of profiles which can be stored |
10 |
| Number of regions of interest |
2 |
| Communication interface |
IO-Link |
| Transmission type |
COM3 (230,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
| BLOB | Binary Large Object transfer | | Common - I&D | Identification and Diagnosis | | Function | Multiple switching signal | | Function | Measurement data, standard resolution |
|
| SIO mode |
yes |
| Required master port class |
A |
| Min. process cycle time |
2.3 |
| IO-Link process data (cyclical) |
| Function | bit length |
|---|
| process value | 16 | | device status | 4 | | binary switching information | 1 |
|
| IO-Link functions (acyclical) |
operating hours counter; number of trigger events; ROI setting |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 1261 |
|
| Note |
| For further information please see the IODD PDF file at "Downloads" |
|
| Ambient temperature |
-10...55 |
| Storage temperature |
-40...60 |
| Protection |
IP 65 |
| Max. immunity to extraneous light |
20 |
| EMC |
|
| Laser protection class |
1 |
| Notes on laser protection |
| Caution: | Laser light | | laser class: | 1 | | EN / IEC60825-1:2007 | | EN / IEC60825-1:2014 | | Complies with 21 CFR 1040.10 except for conformance with IEC 60825-1 Ed. 3, as described in Laser Notice No. 56, dated May 8, 2019. |
|
| MTTF |
155 |
| UL approval |
| Ta | -10...55 °C | | Enclosure type | Type 1 | | voltage supply | Class 2 | | File number UL | E174191 |
|
| Weight |
534.5 |

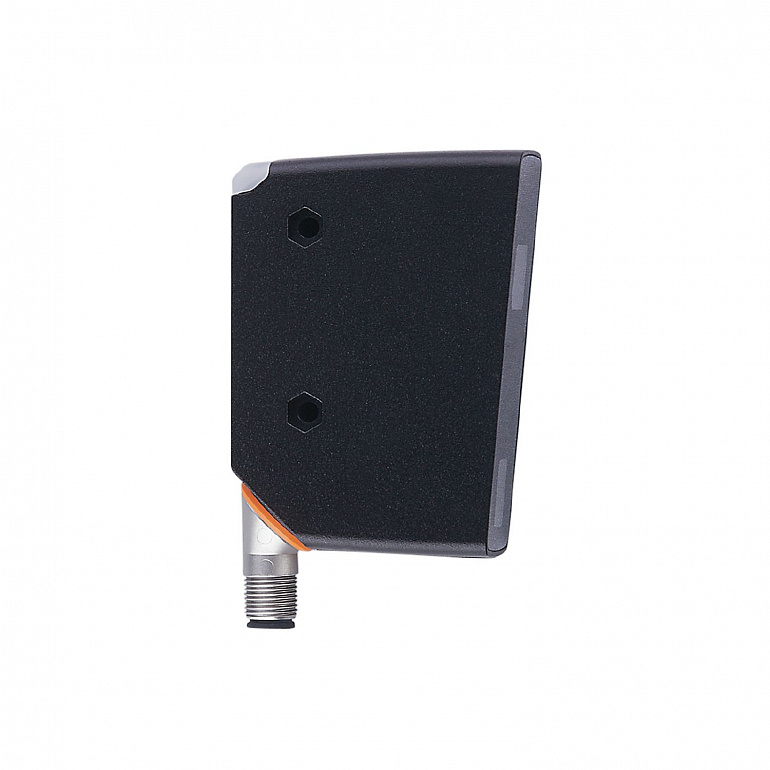

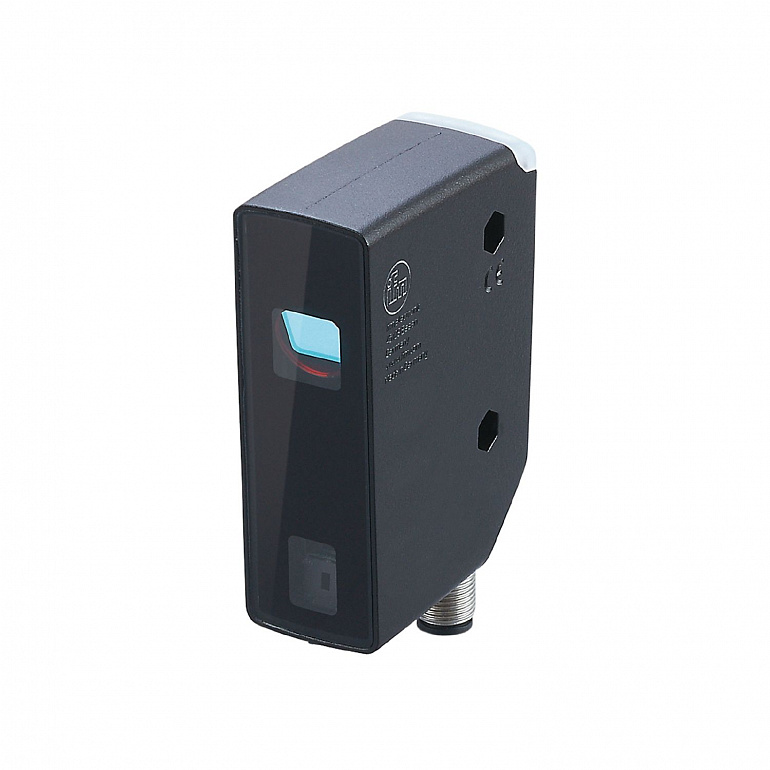

| Housing |
rectangular |
| Dimensions |
88 x 28.5 x 65 |
| Material |
housing: diecast zinc; PPSU; ABS; PMMA; PBT / PC; EPDM; front lens: PMMA |

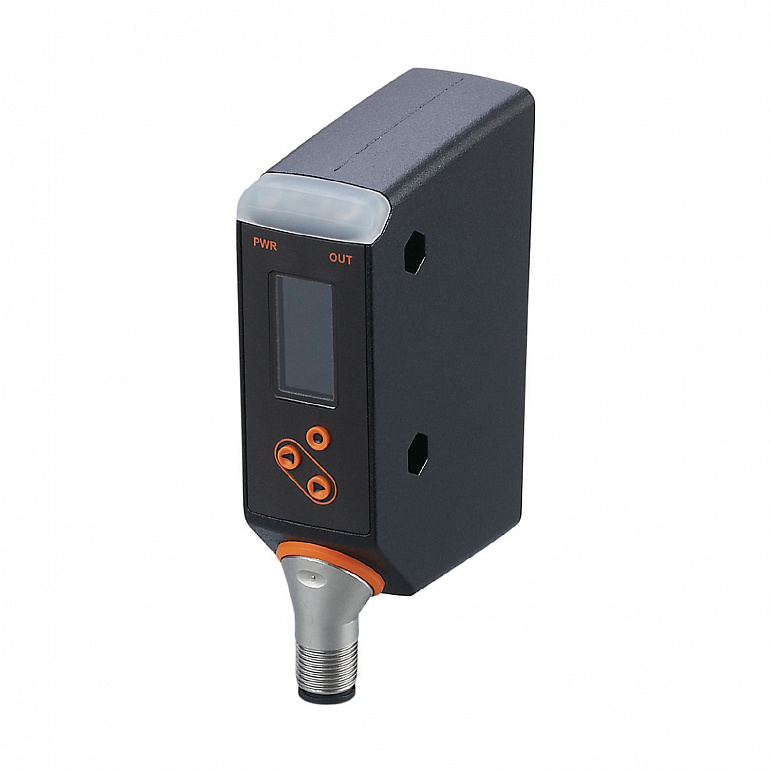

| Display |
| Switching status | 1 x LED, yellow | | Display operation | 1 x LED, green | | Color display |
|
| Pack quantity |
1 pcs. |
| Connection |
Connector: 1 x M12; coding: A |
