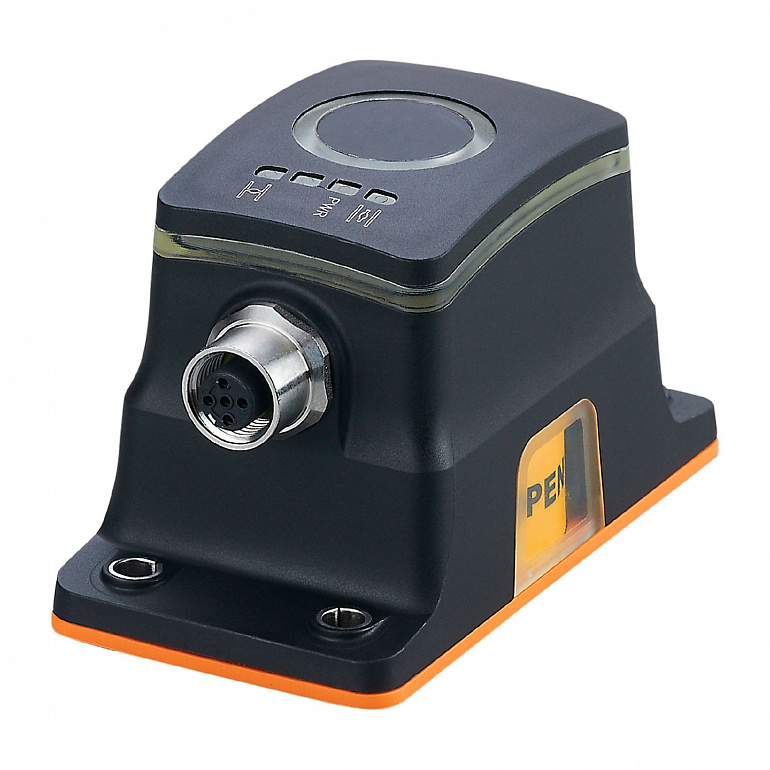

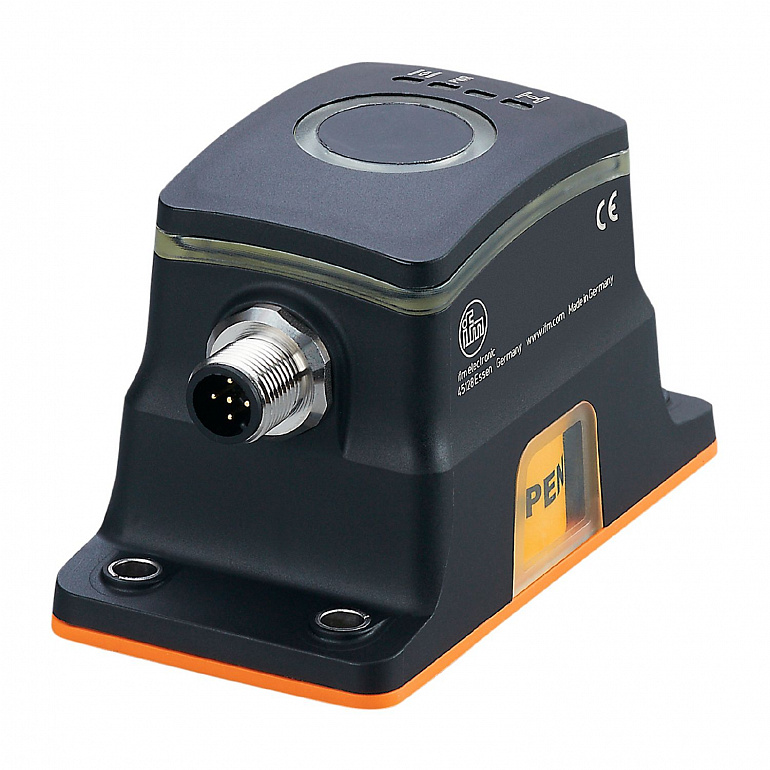

| Communication interface |
IO-Link |
| Housing |
rectangular |
| Dimensions |
95 x 50 x 57 |
| Electrical design |
PNP |
| Output function |
2 x normally open / normally closed; (selectable) |
| Max. voltage drop switching output DC |
2.5 |
| Max. current load per output |
100 |
| Short-circuit protection |
yes |
| Overload protection |
yes |
| Output function |
2 x normally open |
| Max. current load per output |
200 |
| Short-circuit protection |
yes |
| Overload protection |
yes |
| Principle of operation |
magnetic |
| Application |
angle of rotation detection absolute; actuator control |
| Operating voltage |
10...30 DC |
| Current consumption |
< 40 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Max. power-on delay time |
300 |
| Number of inputs and outputs |
Number of digital inputs: 1; Number of digital outputs: 2 |
| Number of digital inputs |
1 |
| Number of digital outputs |
2 |
| Monitoring range |
360 |
| Accuracy |
± 1 |
| Resolution |
0.1 |
| Temperature drift |
0,02 |
| Repeatability |
0,1 |
| Tolerance |
0.1...15; (Factory setting 10) |
| Hysteresis |
0.1...5; (Factory setting 3) |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 CDV |
| Profiles |
| BLOB | Binary Large Object transfer | | Common - I&D | Identification and Diagnosis | | Function | Multiple switching signal | | Function | Teach channel | | Function | Measurement data, standard resolution |
|
| SIO mode |
yes |
| Required master port class |
A |
| Min. process cycle time |
4 |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 1190 |
|
| Ambient temperature |
-25...70 |
| Protection |
IP 65; IP 67; (Target puck area dust-protected) |
| EMC |
| EN 61000-4-2 | 4 kV CD / 8 kV AD | | EN 61000-4-3 | 10 V/m | | EN 61000-4-4 | 2 kV | | EN 61000-4-6 | 10 V | | EN 55011 | class B |
|
| Vibration resistance |
| EN 60068-2-6 Fc | 1 mm (10...55 Hz) / 1 octave per minute in 3 axes |
|
| Shock resistance |
| EN 60068-2-27 Ea | 30 g 11 ms half-sine; 6 shocks each in every direction along the three coordinate axes |
|
| MTTF |
363 |
| Embedded software included |
yes |
| UL approval |
|
| Weight |
192 |
| Housing |
rectangular |
| Dimensions |
95 x 50 x 57 |
| Material |
housing, target puck: PA; plug: stainless steel (316L / 1.4404) |
| Tightening torque |
target puck: 1,2; housing: 3,0; housing on plastic mounting plate: 1,5 |

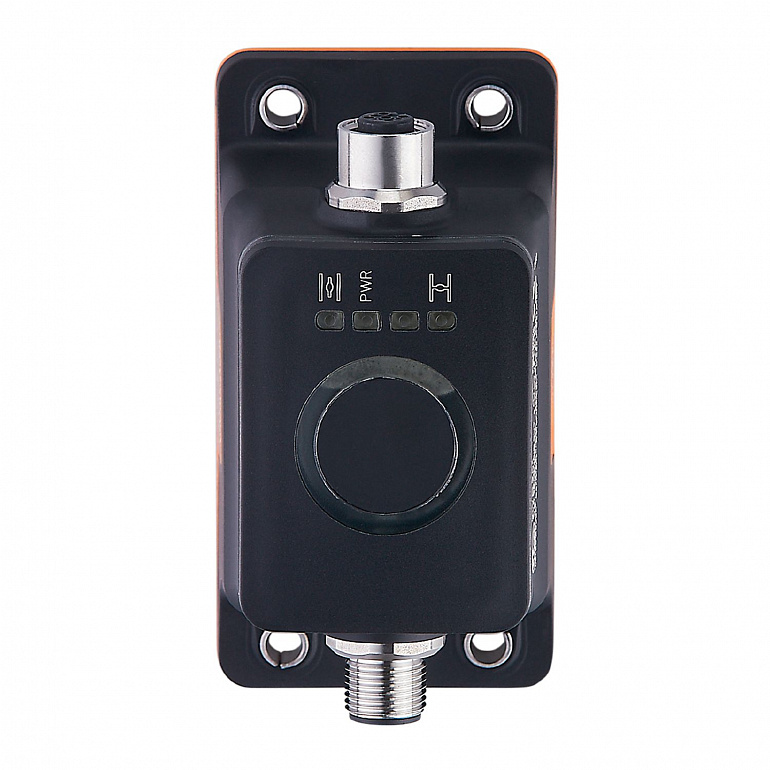

| Display |
| Power | 1 x LED, green | | Switching status | 2 x LED, white | | Switching status | 1 x LED, RGB |
|
| Items supplied |
| socket head screws: 4 x (M5 x 16 mm), stainless steel |
|
| Pack quantity |
1 pcs. |
|
Connector: 1 x M12; coding: A; Moulded body: stainless steel |
