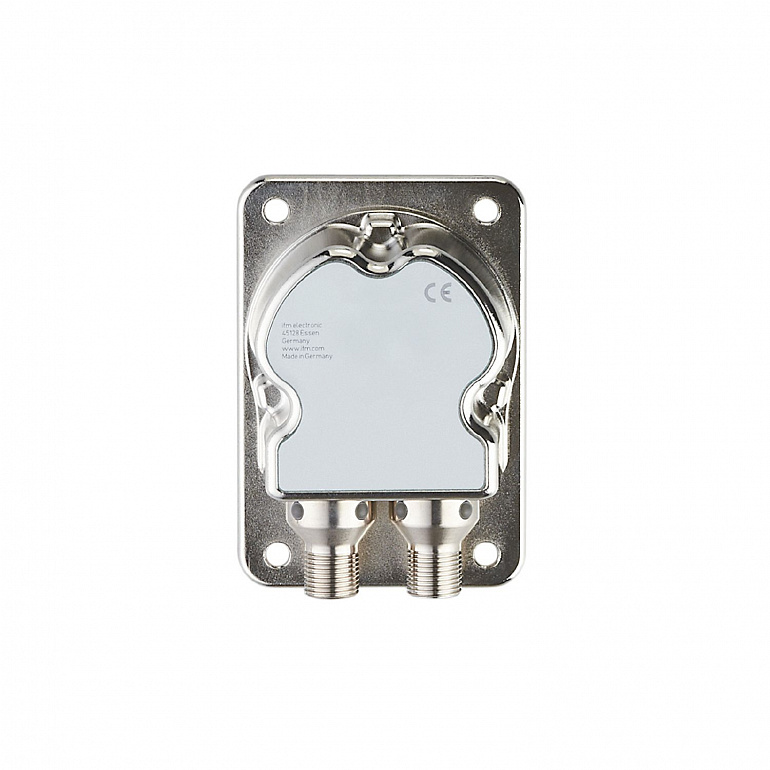

| Measuring principle |
MEMS capacitive |
| Communication interface |
IO-Link |
| Number of measurement axes |
2 |
| Angular range |
± 45 |
| Limit frequency |
0.5...10; (configurable) |
| Function principle |
static |
| Application |
High-precision inclination measurement in 2 axes for mobile and industrial applications |
| Operating voltage |
9.2...30 DC; (voltage output: 12...30 DC; IO-Link: 18...30 DC) |
| Current consumption |
100; (24 V DC, 25 °C) |
| Max. current consumption |
380; (9,2 V DC; -40 °C) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time |
300; (warm-up time; Max. initialization time: 1000 ms) |
| Number of inputs and outputs |
Number of digital outputs: 2; Number of analog outputs: 2 |
| Total number of outputs |
4 |
| Output signal |
analog signal; switching signal |
| Electrical design |
PNP/NPN |
| Number of digital outputs |
2 |
| Output function |
normally open / closed; (programmable) |
| Max. voltage drop switching output DC |
2.5 |
| Permanent current rating of switching output DC |
125; (125 mA (85° C); 200 mA (60° C); 250 mA (40° C)) |
| Number of analog outputs |
2 |
| Analog current output |
4...20; (in case of a fault: 2 mA) |
| Max. load |
220; (220 (9,2…15 V) / 500 (15…30 V)) |
| Analog voltage output |
2...10; (in case of a fault: 1 V) |
| Min. load resistance |
1000; (10000 (12...13,5 V) / 1000 (13,5...30 V)) |
| Precision analog output |
≤ 1 |
| Short-circuit protection |
yes |
| Overload protection |
yes |
| Measuring principle |
MEMS capacitive |
| Accuracy |
≤ ± 0,01; (absolute) |
| Hysteresis |
≤ ± 0,05 |
| Repeatability |
≤ ± 0,01 |
| Resolution |
0.01 |
| Temperature coefficient |
≤ ± 0,0008 ° |
| Parameter setting options |
angle (X/Y); hysteresis / window; Switch points; switching logic; fault indication; self-test; current/voltage output |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 CDV |
| Profiles |
| Smart Sensor - SSP 0 | Generic Profiled Sensor | | Function | Device identification | | Function | Process data variable | | Function | Device diagnosis |
|
| SIO mode |
yes |
| Required master port class |
A |
| Process data analog |
2 |
| Process data binary |
2 |
| Min. process cycle time |
5 |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 417 |
|
| Ambient temperature |
-40...85 |
| Storage temperature |
-40...85 |
| Protection |
IP 65; IP 67; IP 68; IP 69K |
| EMC |
| DIN EN 61000-4-2 ESD | 4 kV CD / 8 kV AD | | DIN EN 61000-4-3 HF radiated | 10 V/m | | DIN EN 61000-4-4 Burst | 2 kV | | DIN EN 61000-4-6 HF conducted | 10 V | | DIN EN 55022 class B / CISPR 16-2-3 | 30 - 1000 MHz | | CISPR 25 ECE R 10 | 30 - 1000 MHz narrowband and broadband | | ISO 11452-2 ECE R 10 | 20 - 2000 MHz / 30 V/m | | ISO 7637-2 ECE R 10 | pulse 1, 2a, 2b, 3a, 3b, 4, and pulse emission during operation, switching-on, switching-off | | ISO 7637-3 | - 80 V pulse a / + 80 V pulse b |
|
| Shock resistance |
| DIN EN 60068-2-27 | 100 g 1 ms / 10000 Impacts per axis (X/Y) | | DIN EN 60068-2-29 | 30 g 6 ms / 24000 shock (bump) |
|
| Vibration resistance |
| DIN EN 60068-2-64 | 10...2000 Hz Test VII / random, mounting place car body | | DIN EN 60068-2-6 | 10...500 Hz / 10 g 10 cycles/axis, sine |
|
| Salt spray test |
| DIN EN 60068-2-52 | severity level 5 (motor vehicle) |
|
| Damp heat |
| DIN EN 60068-2-30 | 55 °C cyclic upper temperature / 95 % rh 2 cycles of 24 h |
|
| MTTF |
176 |
| Standard |
Compliant with ECE R 10, rev. 5; ISO 7637-3: 2007-07 |
| Weight |
451 |

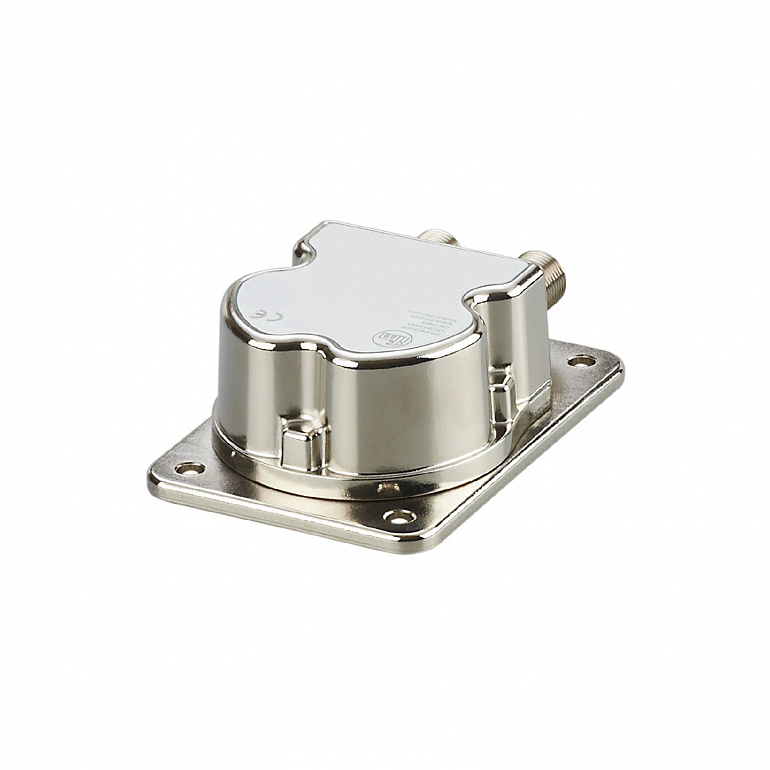

| Dimensions |
90 x 62 x 33.2 |
| Material |
housing: diecast zinc nickel-plated |
| Mounting orientation |
Horizontal |
| Display |
| Power | 1 x LED, green | | Set point | 1 x LED, yellow |
|
| Items supplied |
|
| Remarks |
| the device complies with overvoltage category II |
|
| Pack quantity |
1 pcs. |
|

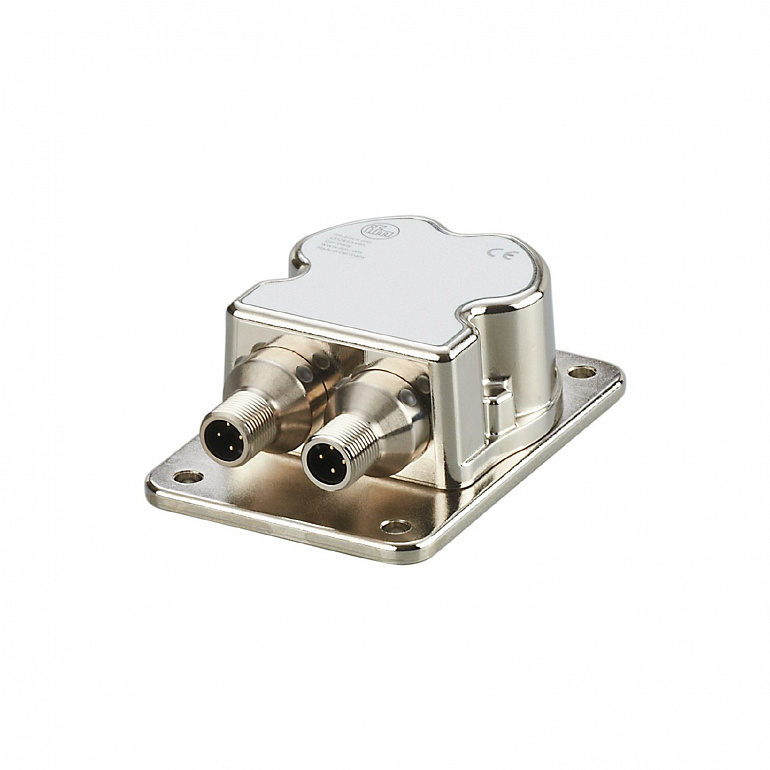

Connector: 1 x M12; coding: A |
|
Connector: 1 x M12; coding: A |
