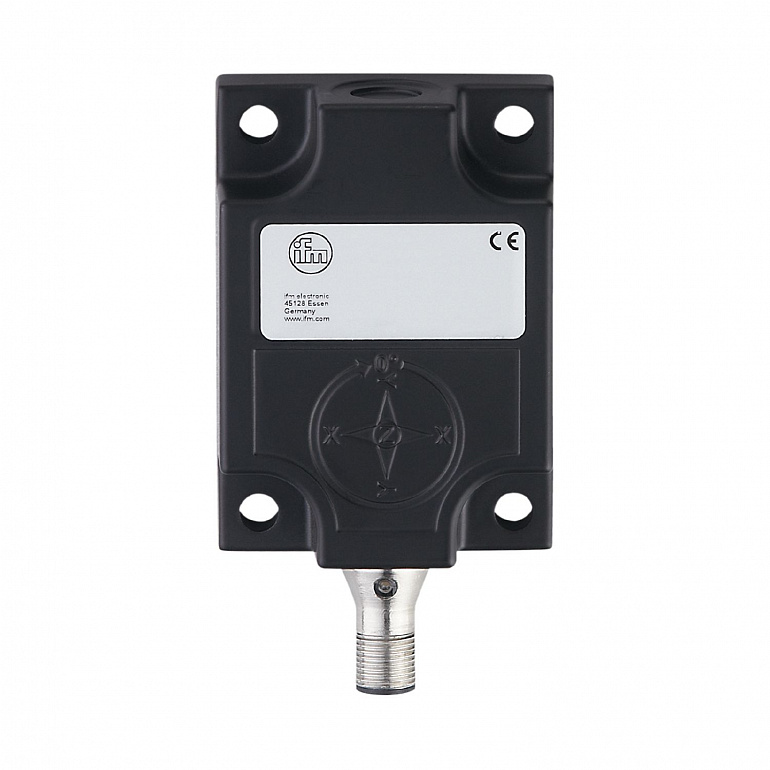

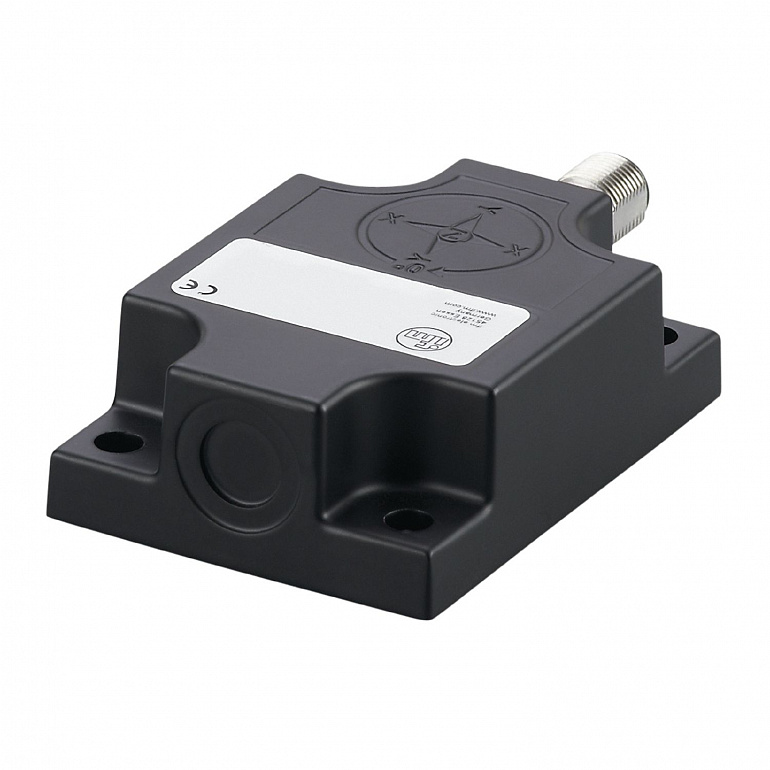

| Measuring principle |
MEMS capacitive; (Accelerometer ; gyroscope) |
| Number of measurement axes |
1; (Z) |
| Communication interface |
CAN |
| Angular range |
0...360 |
| Measuring range acceleration |
± 4 |
| Measuring range vehicle yaw rate |
± 500 |
| Function principle |
dynamic / IMU |
| Application |
High-precision inclination measurement in dynamic applications |
| Operating voltage |
9...30 DC |
| Current consumption |
< 65; (9 ... 30 V DC) |
| Min. insulation resistance |
100; (500 V DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Measuring principle |
MEMS capacitive; (Accelerometer ; gyroscope) |
| Number of measurement axes |
1; (Z) |
| Hysteresis |
≤ ± 0,05 |
| Repeatability |
± 0,05 |
| Resolution |
0.01; (configurable) |
| Temperature coefficient |
≤ ± 0,008° |
| Accuracy |
± 0,5 |
| Accuracy |
± 0,3 |
| Communication interface |
CAN |
| Number of CAN interfaces |
1 |
| Terminating resistor |
yes; (internal ; configurable) |
| Protocol |
CANopen |
| Factory settings |
| Baud rate: 125 kBit/s | | node ID: 10 |
|
| Version |
CiA DS301 V4.2.0; DSP-410 V2.0.0; CiA 306 V1.3.0 |
| Ambient temperature |
-40...85 |
| Storage temperature |
-40...85 |
| Protection |
IP 67; IP 68; IP 69K |
| EMC |
| DIN EN 61000-6-2 | | | DIN EN 61000-6-4 | |
|
| Shock resistance |
|
| Vibration resistance |
|
| MTTF |
260 |
| Weight |
197.5 |
| Dimensions |
27 x 59 x 105.3 |
| Material |
housing: diecast aluminium black; potting compound: polyurethane resin |
| Mounting orientation |
vertical |
| Display |
| preoperational mode | 1 x LED, green | | operational mode | 1 x LED, green flashing | | fault | 1 x LED, red |
|
| Items supplied |
|
| Pack quantity |
1 pcs. |
|

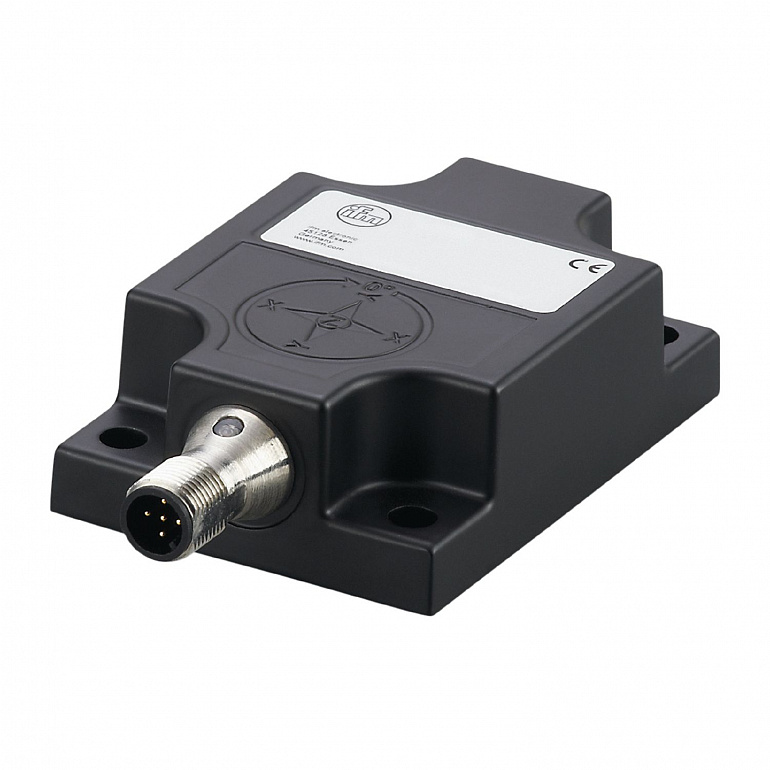

Connector: 1 x M12; coding: A |
