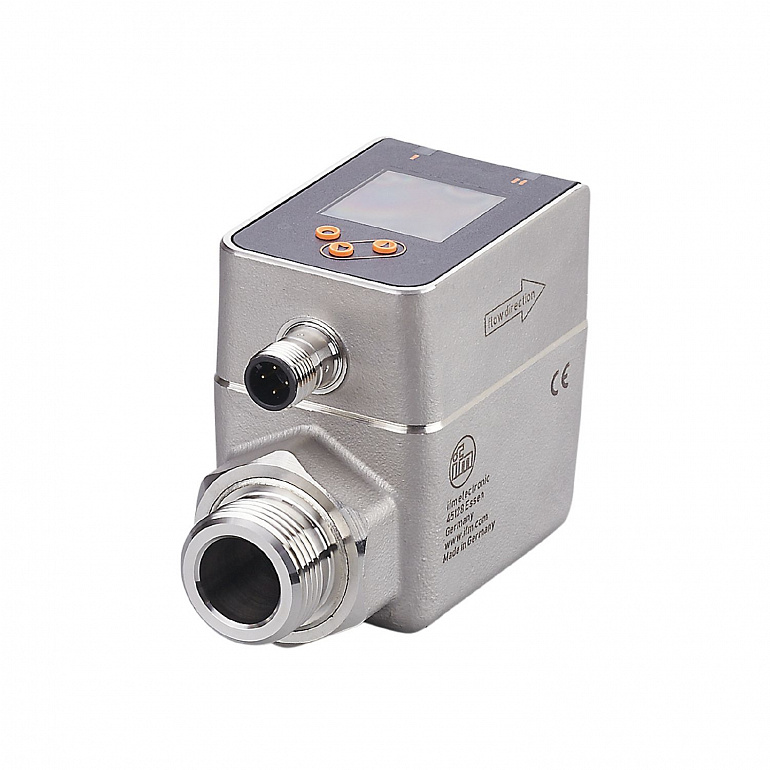

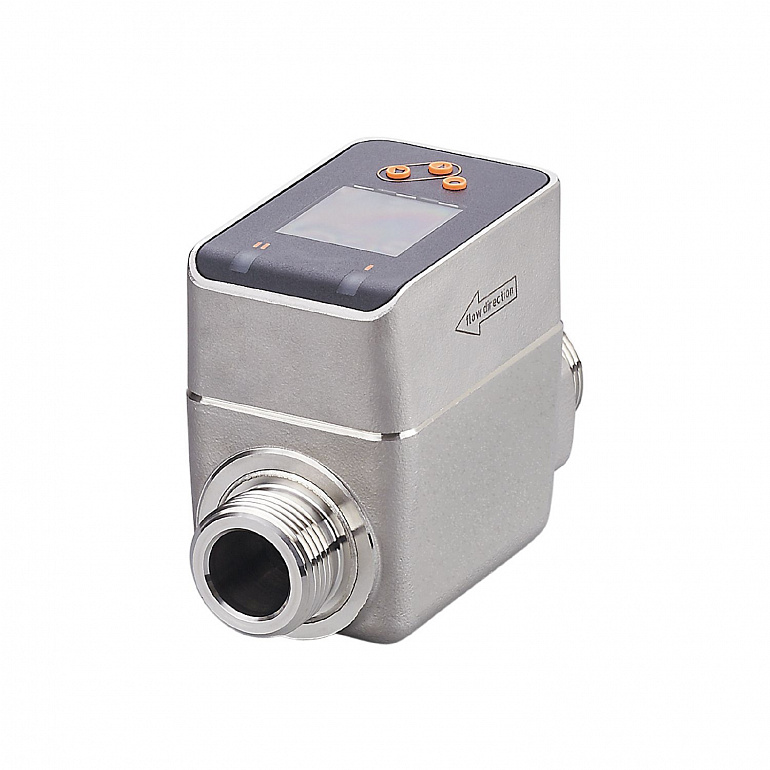

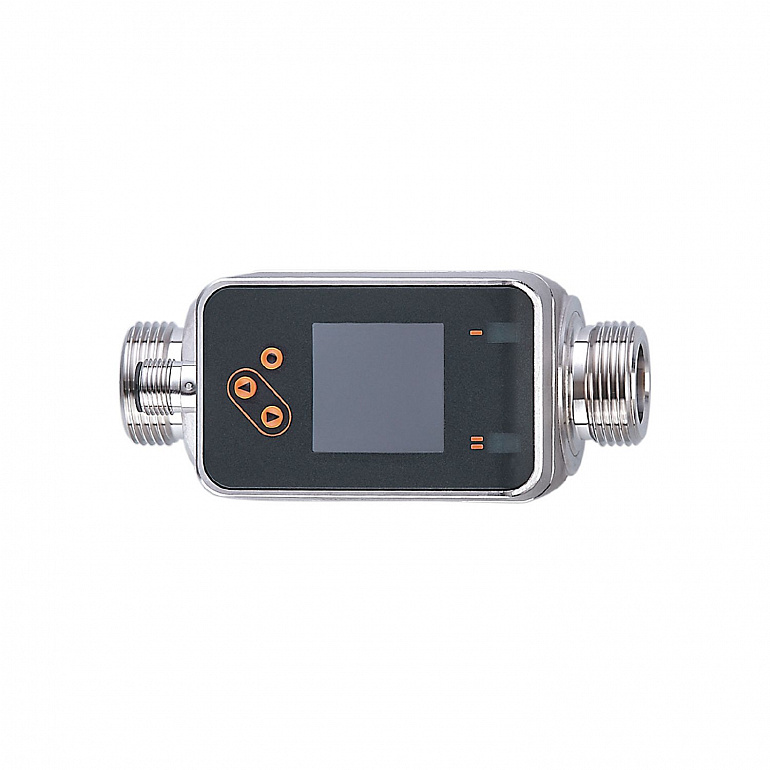

Фото
Видео
Характеристики
| Output function | normally open / closed; (configurable); analog |
| Materials (wetted parts) | Pipe section: stainless steel (1.4404 / 316L); Process connection sealing: NBR fiber-reinforced Gasket; PEEK; EPDM; carbon fiber PEEK |
| Measuring range | 0.006...4.5 |
| Electrical design | PNP/NPN |
| Process connection | G 3/4 external thread DN20 |
Все характеристики
| Number of inputs and outputs | Number of digital outputs: 2; Number of analog outputs: 1 | ||||||||||||
| Measuring range |
|
||||||||||||
| Process connection | threaded connection G 3/4 external thread DN20 flat seal | ||||||||||||
| System | gold-plated contacts | ||||||||||||
| Media | Conductive liquids; water; water-based media | ||||||||||||
| Note on media |
|
||||||||||||
| Medium temperature | -20...90 | ||||||||||||
| Pressure rating |
|
||||||||||||
| Operating voltage | 18...30 DC; (to SELV/PELV) | ||||||||||||
| Current consumption | < 80 | ||||||||||||
| Protection class | III | ||||||||||||
| Reverse polarity protection | yes | ||||||||||||
| Power-on delay time | 5 | ||||||||||||
| Measuring principle | magnetic-inductive | ||||||||||||
| Number of inputs and outputs | Number of digital outputs: 2; Number of analog outputs: 1 | ||||||||||||
| Inputs | counter reset | ||||||||||||
| Total number of outputs | 2 | ||||||||||||
| Output signal | switching signal; analog signal; pulse signal; IO-Link; frequency signal; (configurable) | ||||||||||||
| Electrical design | PNP/NPN | ||||||||||||
| Number of digital outputs | 2 | ||||||||||||
| Output function | normally open / closed; (configurable) | ||||||||||||
| Max. voltage drop switching output DC | 2 | ||||||||||||
| Permanent current rating of switching output DC | 100 | ||||||||||||
| Number of analog outputs | 1 | ||||||||||||
| Analog current output | 4...20; (scalable) | ||||||||||||
| Max. load | 500 | ||||||||||||
| Pulse output | flow rate meter | ||||||||||||
| Short-circuit protection | yes | ||||||||||||
| Type of short-circuit protection | yes (non-latching) | ||||||||||||
| Overload protection | yes | ||||||||||||
| Measuring range |
|
||||||||||||
| Display range |
|
||||||||||||
| Resolution |
|
||||||||||||
| Set point SP |
|
||||||||||||
| Reset point rP |
|
||||||||||||
| Analog start point ASP |
|
||||||||||||
| Analog end point AEP |
|
||||||||||||
| Low flow cut-off LFC |
|
||||||||||||
| Frequency end point, FEP |
|
||||||||||||
| Frequency at the end point FRP | 1...10000 | ||||||||||||
| Pulse length | 0.003...2 | ||||||||||||
| Pulse value | 0.01...99990000 I | ||||||||||||
| Response time | 15; (Q > 10 % MEW, T09) | ||||||||||||
| Start-up delay | 0...50 | ||||||||||||
| Response time | < 0.25; (dAP = 0, T09) | ||||||||||||
| Damping process value dAP | 0...5 | ||||||||||||
| Parameter setting options | hysteresis / window; normally open / closed; switching logic; Frequency output; current/pulse output; Start-up delay; display can be deactivated; Display unit | ||||||||||||
| Communication interface | IO-Link | ||||||||||||
| Transmission type | COM2 (38,4 kBaud) | ||||||||||||
| IO-Link revision | 1.1 | ||||||||||||
| SDCI standard | IEC 61131-9 | ||||||||||||
| Profiles |
|
||||||||||||
| SIO mode | yes | ||||||||||||
| Required master port class | A | ||||||||||||
| Process data analog | 3 | ||||||||||||
| Process data binary | 2 | ||||||||||||
| Min. process cycle time | 8 | ||||||||||||
| Supported DeviceIDs |
|
||||||||||||
| Ambient temperature | -20...60 | ||||||||||||
| Storage temperature | -25...80 | ||||||||||||
| Protection | IP 65; IP 67 | ||||||||||||
| EMC |
|
||||||||||||
| CPA approval |
|
||||||||||||
| Shock resistance |
|
||||||||||||
| Vibration resistance |
|
||||||||||||
| MTTF | 114 | ||||||||||||
| UL approval |
|
||||||||||||
| Pressure equipment directive | sound engineering practice; can be used for group 2 fluids; group 1 fluids on request | ||||||||||||
| Weight | 798 | ||||||||||||
| Housing | rectangular | ||||||||||||
| Dimensions | 110 x 48 x 73 | ||||||||||||
| Material | stainless steel (1.4408/316); stainless steel (1.4404 / 316L); PC; PBT+PC-GF30 | ||||||||||||
| Materials (wetted parts) | Pipe section: stainless steel (1.4404 / 316L); Process connection sealing: NBR fiber-reinforced Gasket; PEEK; EPDM; carbon fiber PEEK | ||||||||||||
| Process connection | threaded connection G 3/4 external thread DN20 flat seal | ||||||||||||
| Display |
|
||||||||||||
| Remarks |
|
||||||||||||
| Pack quantity | 1 pcs. | ||||||||||||
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
Приемущества
| Precise measurement of flow, consumption and medium temperature |
| High accuracy, repeatability and measurement dynamics |
| With switching output, analog output and pulse output |
| Clearly readable color display with red/green color change |
| No inlet and output pipe lengths required |
| Convenient operation via buttons or parameter setting via IO-Link |
