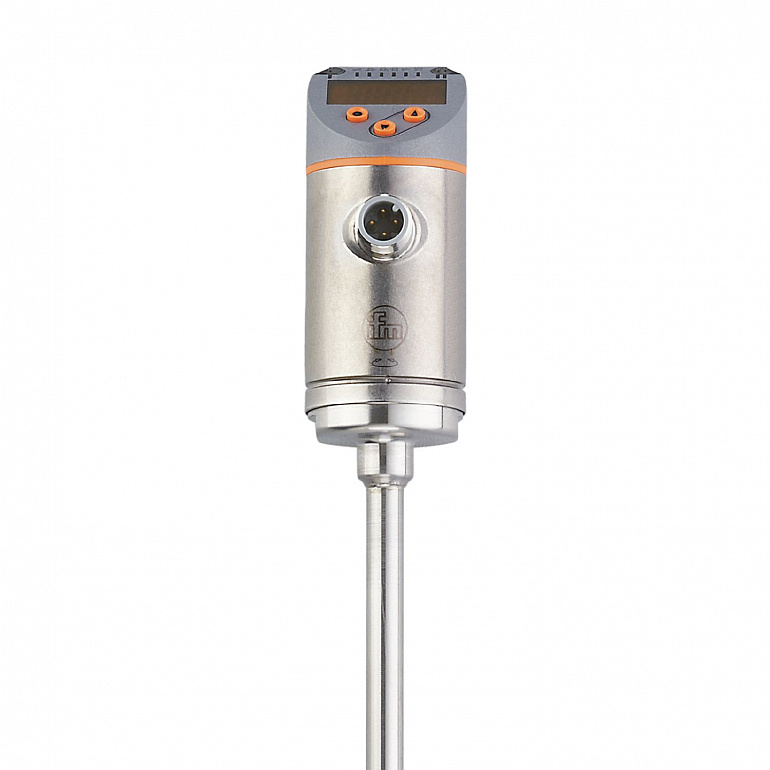

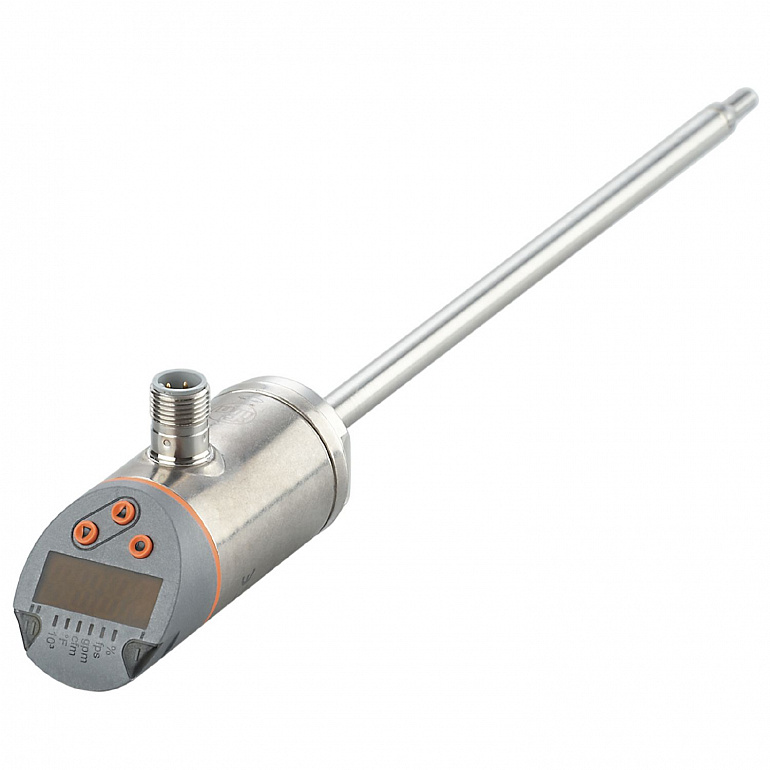

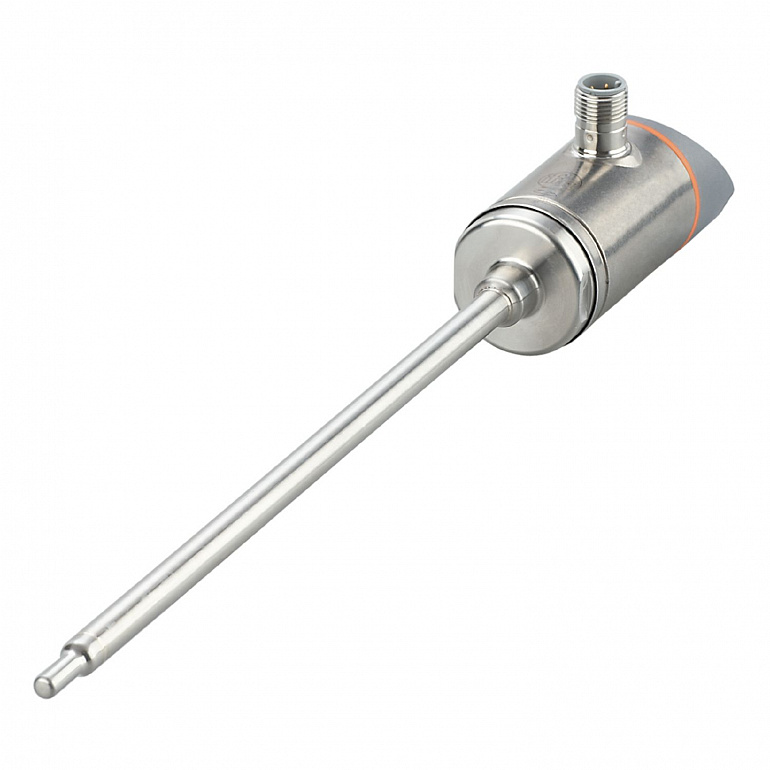

| Product characteristics |
|
| Number of inputs and outputs |
Number of analog outputs: 2 |
| Process connection |
Clamp fitting Ø 8 mm |
| Application |
|
| System |
gold-plated contacts |
| Media |
water; glycol solutions; air; oils |
| Note on media |
<table><tr><td>low-viscosity oils with viscosity: ≤ 40 mm²/s (104 °F)</td></tr><tr><td>high-viscosity oils with viscosity: > 40 mm²/s (104 °F)</td></tr></table> |
| Medium temperature |
-4...212 |
| Pressure rating |
<table><tr><td>50 bar</td><td>5 MPa</td></tr></table> |
| Electrical data |
|
| Operating voltage |
18...30 DC |
| Current consumption |
< 100 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time |
10 |
| Measuring principle |
calorimetric |
| Inputs / outputs |
|
| Number of inputs and outputs |
Number of analog outputs: 2 |
| Outputs |
|
| Total number of outputs |
2 |
| Output signal |
analog signal |
| Number of analog outputs |
2 |
| Analog current output |
4...20; (scalable) |
| Max. load |
350 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Measuring/setting range |
|
| Probe length L |
200 |
| Operating mode |
relative; absolutely liquid; absolutely gaseous; (absolute: reference measurement recommended; Factory setting: relative) |
| Liquids |
|
| Resolution |
0.05 |
| Analog start point ASP |
0...7.95 |
| Analog end point AEP |
1.9...9.85 |
| Gases |
|
| Resolution |
2 |
| Analog start point ASP |
0...264 |
| Analog end point AEP |
64...328 |
| Temperature monitoring |
|
| Dynamic response T05 / T09 |
1,5 (T09); (water; Flow velocity: 1...9,85 fps) |
| Liquid media - absolute operating mode |
|
| Setting range |
0.15...9.85 |
| Greatest sensitivity |
0.15...9.85 |
| Liquid media - relative operating mode |
|
| Setting range |
0.15...19.5 |
| Greatest sensitivity |
0.15...9.85 |
| Gases - operating mode "absolute" |
|
| Setting range |
6...328 |
| Greatest sensitivity |
6...328 |
| Gases - operating mode "relative" |
|
| Setting range |
6...656 |
| Greatest sensitivity |
6...328 |
| Accuracy / deviations |
|
| Temperature drift |
0,01 fps x 1/K (< 68 °F; > 158 °F) |
| Max. temperature gradient of medium |
100 |
| Absolute operating mode |
|
| Repeatability |
0,05 m/s; (water; Flow velocity: 0,05...3 m/s) |
| Relative operating mode |
|
| Accuracy |
± (7 % MW + 2 % MEW); (for relative mode in the range of maximum sensitivity under the following conditions:; water: 68...158 °F; inlet length: 5 ft; DN25 (DIN 2448); mounting position according to instructions; Accuracy can differ for other media and mo |
| Repeatability |
0,05 m/s; (water; Flow velocity: 0,05...3 m/s) |
| Reaction times |
|
| Response time |
0.5; (T09; water; glycol: 0,8 s; air: 7 s; oil: 1,8 s; each T09) |
| Software / programming |
|
| Parameter setting options |
medium selection; Damping; Teach function; display can be rotated and switched off; standard unit of measurement; process value color |
| Operating conditions |
|
| Ambient temperature |
-40...176 |
| Storage temperature |
-40...212 |
| Protection |
IP 65; IP 67 |
| Tests / approvals |
|
| EMC |
<table><tr><td>DIN EN 60947-5-9</td><td></td></tr></table> |
| Shock resistance |
<table><tr><td>DIN EN 60068-2-27</td><td>50 g (11 ms)</td></tr></table> |
| Vibration resistance |
<table><tr><td>DIN EN 60068-2-6</td><td>5 g (10...2000 Hz)</td></tr></table> |
| MTTF |
179 |
| UL approval |
<table><tr><td>UL approval number</td><td>I018 </td></tr><tr><td>File number UL</td><td>E174189 </td></tr></table> |
| Mechanical data |
|
| Weight |
310.5 |
| Housing |
tubular |
| Dimensions |
Ø 8 / L = 292 |
| Material |
stainless steel (1.4404 / 316L); PBT-GF20; PBT-GF30 |
| Materials (wetted parts) |
stainless steel (1.4404 / 316L) |
| Process connection |
Clamp fitting Ø 8 mm |
| Displays / operating elements |
|

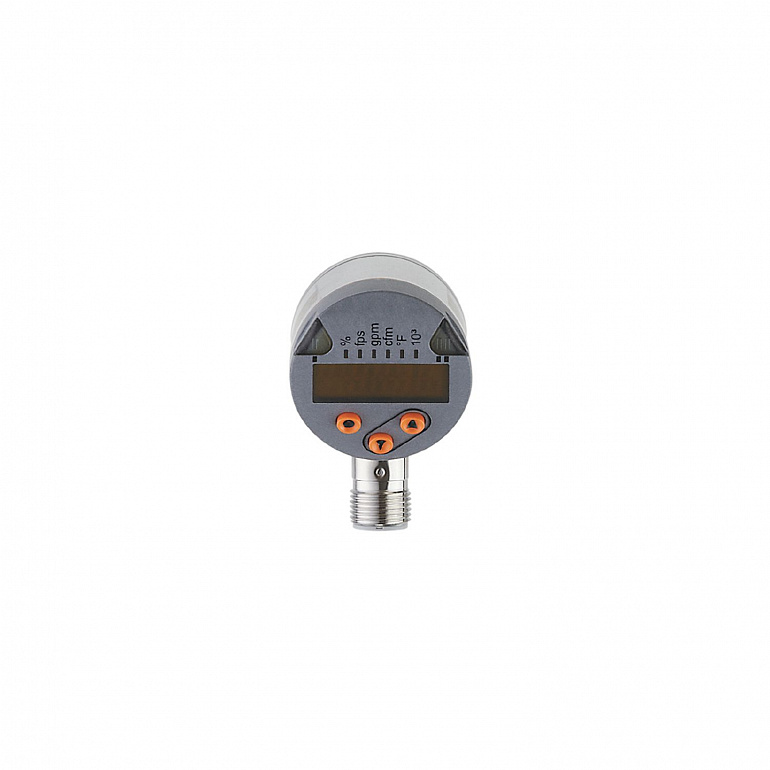

| Display |
<table><tr><td>Display unit</td><td>6 x LED, green (%, fps, gpm, cfm, °F, 10³)</td></tr><tr><td>Measured values</td><td>alphanumeric display, red/green 4-digit</td></tr></table> |
| Remarks |
|
| Remarks |
<table><tr><td>MW = Measured value</td></tr><tr><td>MEW = Final value of the measuring range</td></tr></table> |
| Pack quantity |
1 pcs. |
| Electrical connection |
|
| Connection |
Connector: 1 x M12; coding: A; Contacts: gold-plated |
