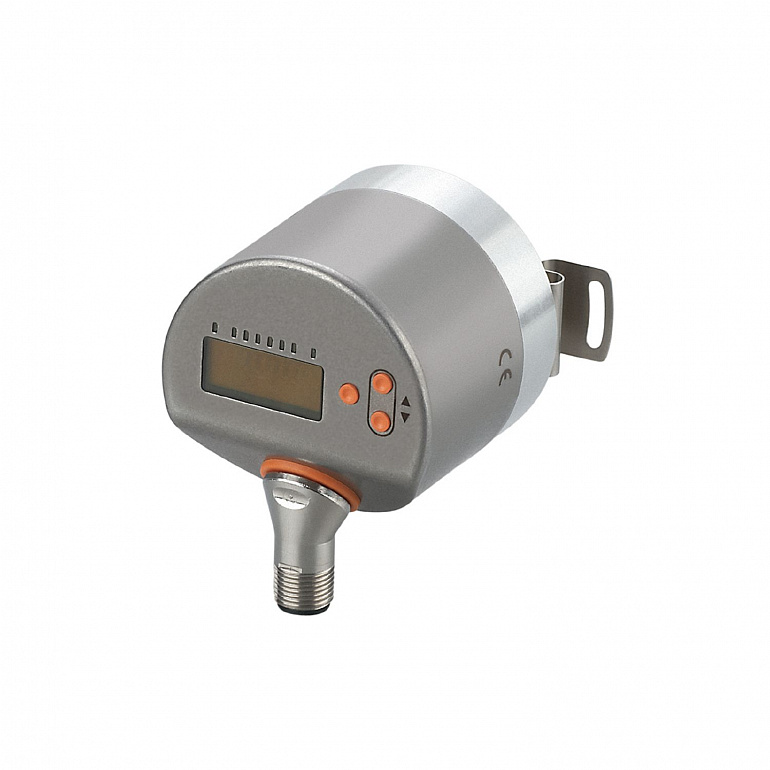

| Resolution |
1...10000; (configurable; Factory setting: 1024) resolution |
| Communication interface |
IO-Link |

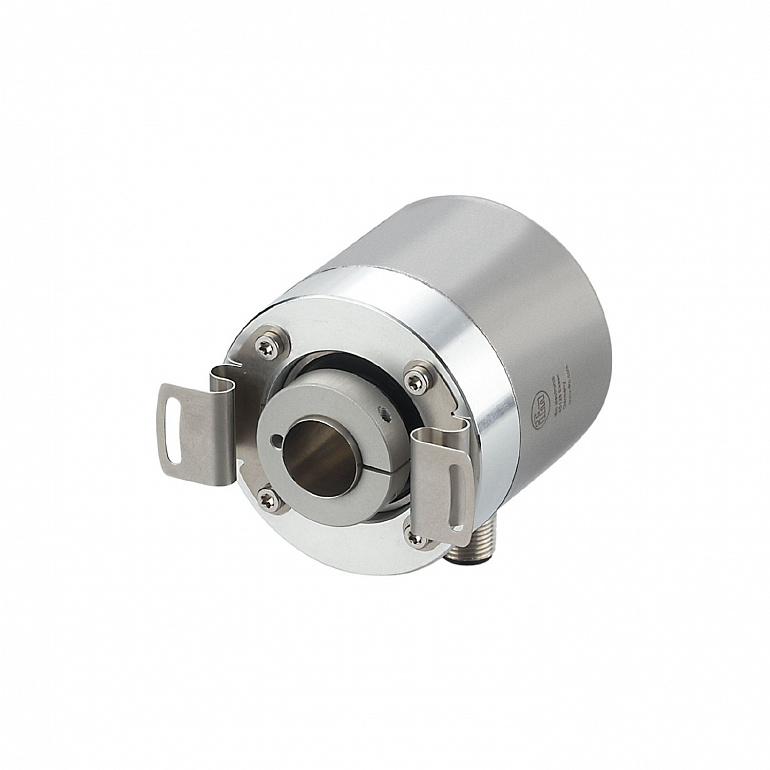

| Shaft design |
hollow shaft open to one side |
| Shaft diameter |
15.875 |
| Function principle |
incremental |
| Detection system |
magnetic |
| Application |
encoder; Speed monitor; Counter |
| Operating voltage |
4.75...30 DC |
| Current consumption |
< 350 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Max. revolution electrical |
12000 |
| Electrical design |
HTL/TTL |
| Switching frequency |
1000 |
| Factory setting |
| Output function: HTL (50 mA) |
|
| Short-circuit protection |
yes |
| Phase difference A und B |
90 |
| Resolution |
1...10000; (configurable; Factory setting: 1024) resolution |
| Set point SP |
| -9994...9999 U/min | -166.6...166.7 Hz |
|
| Reset point rP |
| -9999...9994 U/min | -166.7...166.6 Hz |
|
| Preset point |
1...9999 |
| Accuracy |
0.1 |
| Parameter setting options |
encoder; Resolution; Direction of rotation; HTL; TTL; Speed monitor; Resolution |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| Profiles |
| Smart Sensor - SSP 0 | Generic Profiled Sensor | | Function | Device identification | | Function | Process data variable | | Function | Device diagnosis |
|
| SIO mode |
yes |
| Min. process cycle time |
2.7 |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 496 |
|
| Ambient temperature |
-40...85 |
| Storage temperature |
-40...85 |
| Max. relative air humidity |
95; (Condensation not permissible) |
| Protection |
IP 65; (on the housing: IP 67; on the shaft: IP 65) |
| Shock resistance |
|
| Vibration resistance |
|
| MTTF |
218 |
| Weight |
465.5 |

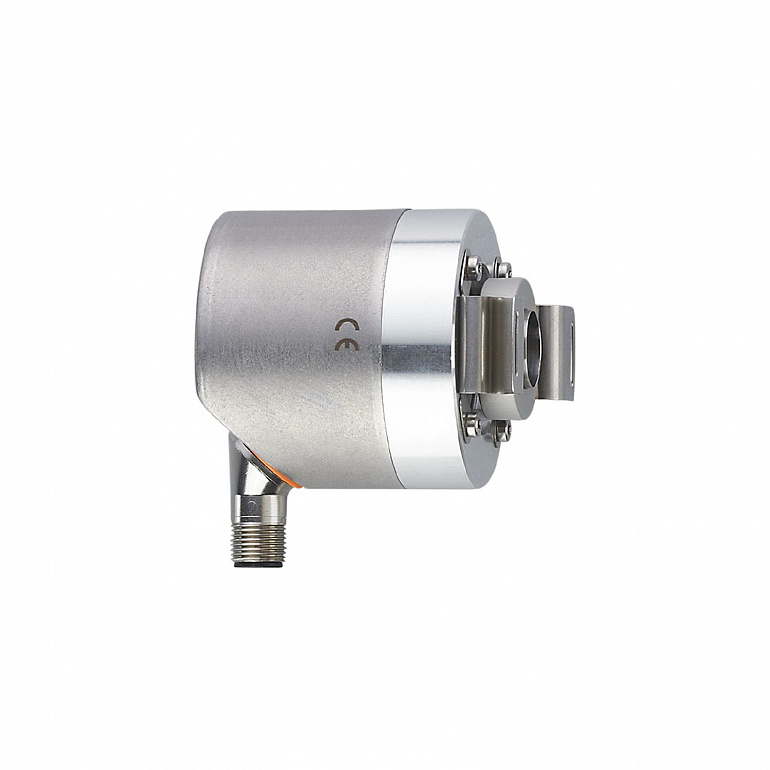

| Housing |
tubular |
| Dimensions |
Ø 58.5 / L = 69 |
| Material |
flange: aluminum; housing: stainless steel (1.4521 / 444); display window: PEI |
| Max. revolution, mechanical |
12000 |
| Max. starting torque |
0.02 |
| Reference temperature torque |
20 |
| Shaft design |
hollow shaft open to one side |
| Shaft diameter |
15.875 |
| Shaft material |
|
| Installation depth/shaft |
27 |
| Max. axial shaft misalignment |
0,5 |
| Fixing flange |
Ø 58.5 mm |
| Display |
| 10-segment display, red/green 4-digit configurable | | 2 x LED, yellow | | 5 x LED, green |
|
| Items supplied |
|
| Pack quantity |
1 pcs. |
| IO-Link |
Connector: 1 x M12, radial, can also be used axially; coding: A; Moulded body: stainless steel (1.4401 / 316); Maximum cable length: 100 m; (IO-Link: max. 20 m) |
