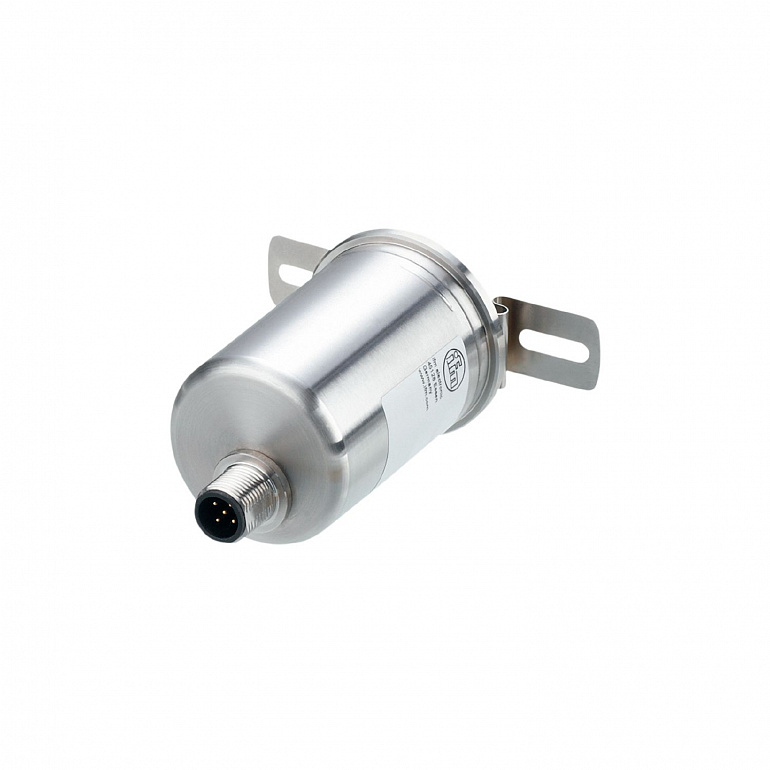

| Resolution |
1...10000; (configurable; Factory setting: 1024) resolution |
| Communication interface |
IO-Link |

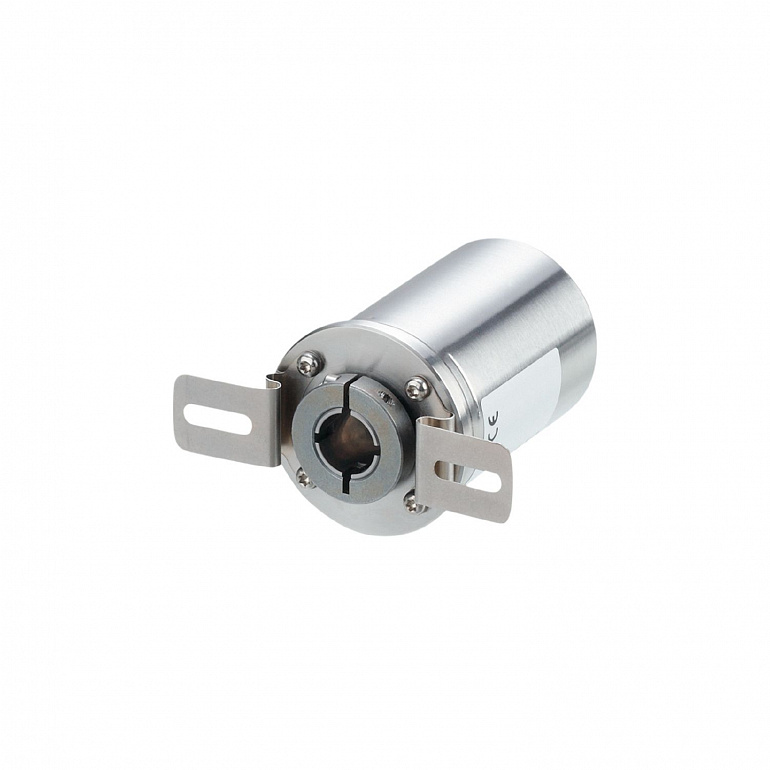

| Shaft design |
hollow shaft open to one side |
| Shaft diameter |
12 |
| Function principle |
incremental |
| Revolution type |
incremental /singleturn |
| Detection system |
magnetic |
| Operating voltage |
4.75...30 DC |
| Current consumption |
< 150 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Max. power-on delay time |
500 |
| Max. revolution electrical |
6000 |
| Electrical design |
HTL/TTL |
| Switching frequency |
1000 |
| Factory setting |
| Output function: HTL (50 mA) |
|
| Short-circuit protection |
yes |
| Phase difference A und B |
90 |
| Resolution |
1...10000; (configurable; Factory setting: 1024) resolution |
| Accuracy |
0.1 |
| Parameter setting options |
Resolution; Direction of rotation; HTL; TTL |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| Profiles |
| Smart Sensor - SSP 0 | Generic Profiled Sensor | | Function | Device identification | | Function | Process data variable | | Function | Device diagnosis |
|
| SIO mode |
yes |
| Min. process cycle time |
2.3 |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 499 |
|
| Ambient temperature |
-40...85 |
| Storage temperature |
-40...85 |
| Max. relative air humidity |
95; (Condensation not permissible) |
| Protection |
IP 68; IP 69K |
| Vibration resistance |
|
| Shock resistance |
| DIN EN 60068-2-27 | 200 g 11 ms |
|
| Continuous shock resistance |
| DIN EN 60068-2-29 | 20 g / 10...1000 Hz |
|
| MTTF |
292 |
| Weight |
372.9 |

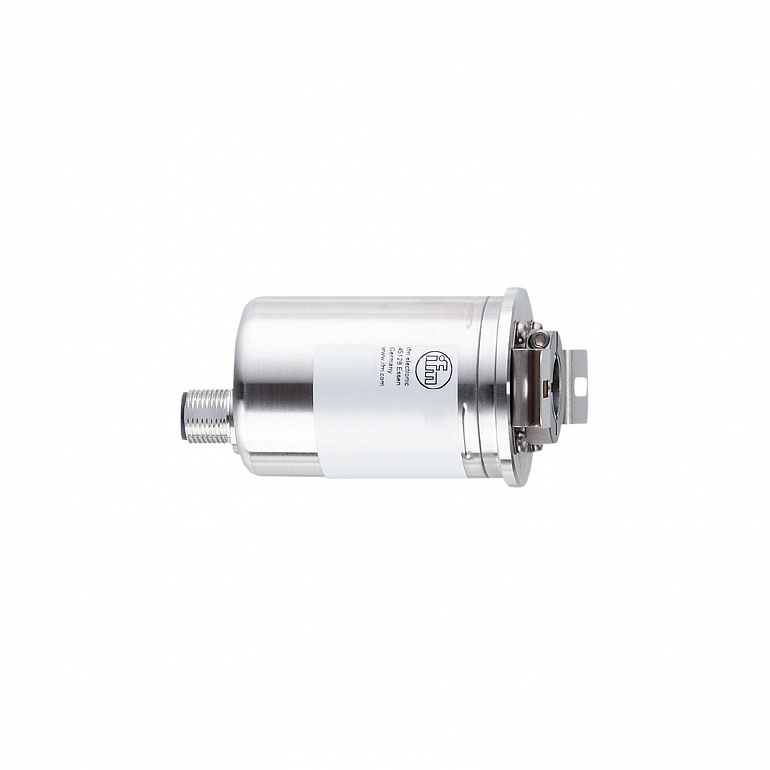

| Housing |
tubular |
| Dimensions |
Ø 42 / L = 79.5 |
| Material |
flange: stainless steel (1.4404 / 316L); housing: stainless steel (1.4404 / 316L) |
| Tightening torque |
< 0.7; (Mounting screw) |
| Max. revolution, mechanical |
6000 |
| Max. starting torque |
0.05 |
| Reference temperature torque |
20 |
| Shaft design |
hollow shaft open to one side |
| Shaft diameter |
12 |
| Shaft material |
| stainless steel (1.4112 / 440B) |
|
| Installation depth/shaft |
22 |
| Max. axial shaft misalignment |
0,5 |
| Fixing flange |
Ø 42 mm |
| Pack quantity |
1 pcs. |
| IO-Link |
Connector: 1 x M12, axial; coding: A; Moulded body: stainless steel (1.4401 / 316) |
