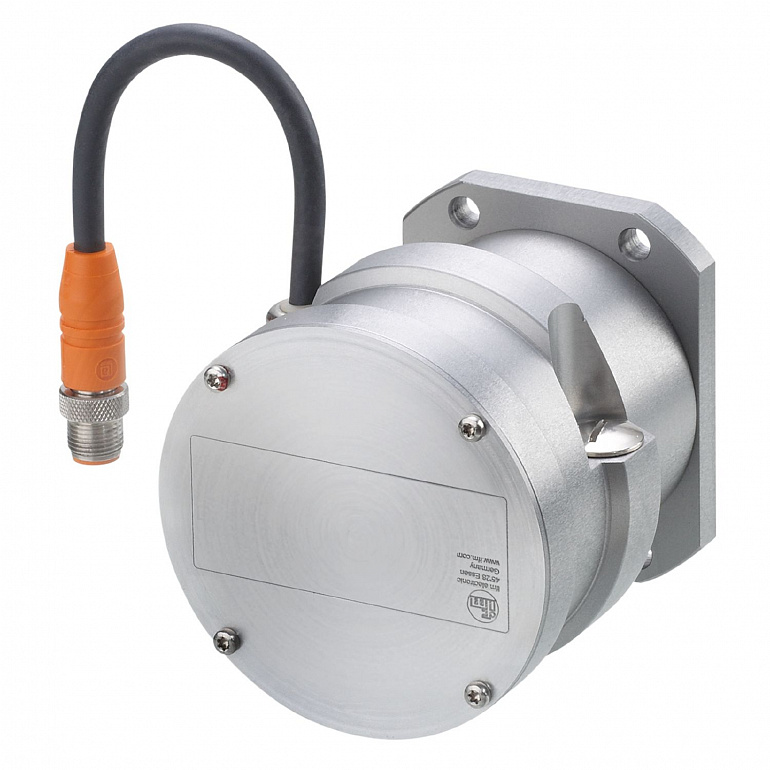

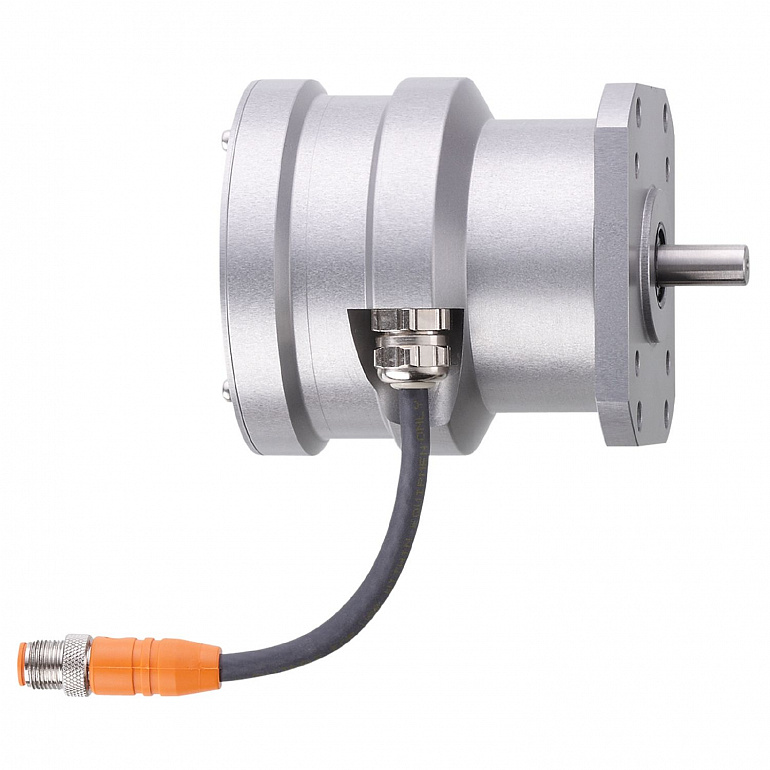

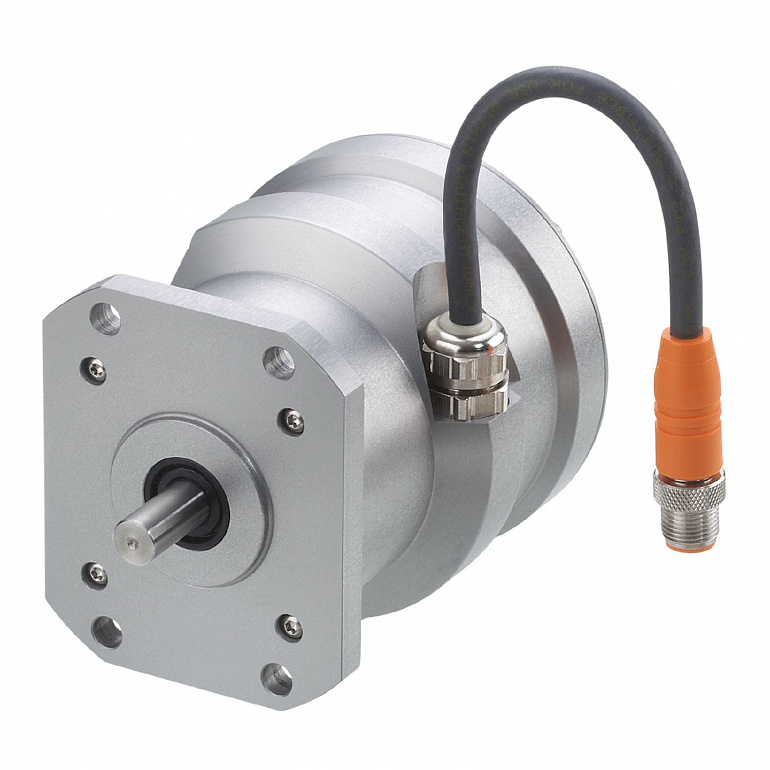

| Resolution |
65536 steps |
| Communication interface |
SSI data interface |
| Shaft design |
solid shaft |
| Shaft diameter |
10 |
| Function principle |
absolute |
| Revolution type |
singleturn |
| Operating voltage |
10...30 DC |
| Current consumption |
< 100 |
| Inputs |
reversal of direction of rotation; reset to zero |
| Code |
Gray code; (increasing code values when turned clockwise (seen on the shaft)) |
| Code signal |
Clock input; TTL-compatible signals; clock and clock (inv.) from drivers to RS 422; data output; synchronous serial; TTL-compatible signal data and data (inv.) |
| Resolution |
65536 steps |
| Communication interface |
SSI data interface |
| Ambient temperature |
-40...100 |
| Max. relative air humidity |
98 |
| Protection |
IP 67 |
| EMC |
| EN IEC 61000-6-4 | radiation of interference / industrial environments | | EN IEC 61000-6-2 | noise immunity / industrial environments |
|
| Shock resistance |
|
| Vibration resistance |
| EN 60068-2-6 | < 10 g / 55...2000 Hz |
|
| MTTF |
289 |
| Weight |
1113.3 |
| Housing |
tubular |
| Dimensions |
Ø 89 / L = 116 |
| Material |
flange: aluminum anodized; housing: aluminum anodized |
| Max. revolution, mechanical |
6000 |
| Max. starting torque |
0.04 |
| Reference temperature torque |
25 |
| Shaft design |
solid shaft |
| Shaft diameter |
10 |
| Shaft material |
| stainless steel (1.4305 / 303) |
|
| Max. shaft load axial (at the shaft end) |
40 |
| Max. shaft load radial (at the shaft end) |
110 |
| Fixing flange |
Ø 89 mm |
| Remarks |
| Wires/pins not connected (n.c.) must not be used. |
|
| Pack quantity |
1 pcs. |
| Connection |
Connector: 1 x M12; coding: A |
