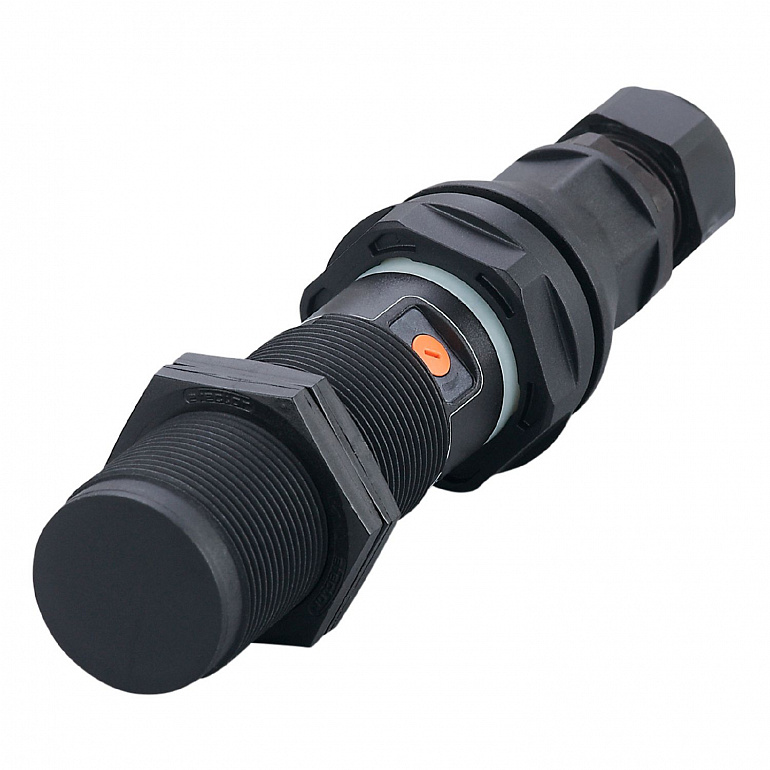

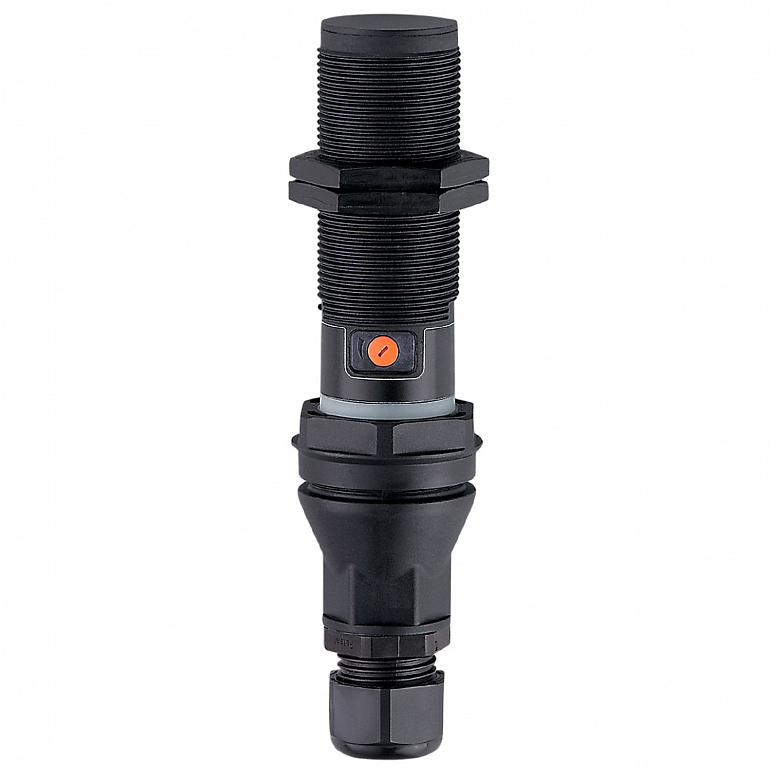

| Electrical design |
PNP |
| Output function |
complementary |
| Sensing range |
3...26 |
| Communication interface |
IO-Link |
| Housing |
Threaded type |
| Dimensions |
M30 x 1.5 / L = 150 |
| Operating voltage |
10...30 DC |
| Rated insulation voltage |
60 |
| Current consumption |
< 22 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Max. power-on delay time |
300 |
| Measuring principle |
capacitive |
| Electrical design |
PNP |
| Output function |
complementary |
| Max. voltage drop switching output DC |
2.5 |
| Max. leakage current |
0.1 |
| Permanent current rating of switching output DC |
200 |
| Short-time current rating of switching output |
200 |
| Switching frequency DC |
10 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Sensing range |
3...26 |
| Sensing range adjustable |
yes |
| Real sensing range Sr |
15 ± 10 % |
| Hysteresis |
1...15 |
| Switch-point drift |
-20...20 |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
| Smart Sensor - SSP 0 | Generic Profiled Sensor | | Function | Device identification | | Function | Multiple switching signal | | Function | Process data variable | | Function | Device diagnosis |
|
| SIO mode |
yes |
| Required master port class |
A |
| Min. process cycle time |
20 |
| IO-Link functions (acyclical) |
application specific tag; operating hours counter; PNP / NPN (parametrierbar); Switch point setting; Hysteresis |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 1286 |
|
| Ambient temperature |
-20...60 |
| Protection |
IP 65; IP 67 |
| ATEX marking |
II 3D Ex tc IIIC T90°C Dc |
|
BVS 20 ATEX E 058 X; IECEx BVS 20.0061X |
| EMC |
| EN 61000-4-2 ESD | kV / 8 kV AD | | EN 61000-4-3 HF radiated | 3 V/m (80...2000 MHz) | | EN 61000-4-4 Burst | 2 kV | | EN 61000-4-6 HF conducted | 3 V 0,15...80 MHz | | EN 55011 | class B | | IEC 60255-5 | 1 kV line to line, Ri: 500 Ohm |
|
| Vibration resistance |
| EN 60068-2-6 Fc | 10...55 Hz 1 mm amplitude, vibration duration 5 min., 30 min. per axis with resonance or 55 Hz |
|
| Shock resistance |
| EN 60068-2-27 Ea | 30 g 6 shocks / 11 ms half-sine (x, y, z) |
|
| MTTF |
623 |
| Weight |
146.4 |
| Housing |
Threaded type |
| Mounting |
non-flush mountable |
| Dimensions |
M30 x 1.5 / L = 150 |
| Thread designation |
M30 x 1.5 |
| Material |
housing: PA; potentiometer: LCP; PBT |
| Display |
| Switching status | 1 x LED, yellow |
|
| Items supplied |
|
| Pack quantity |
1 pcs. |

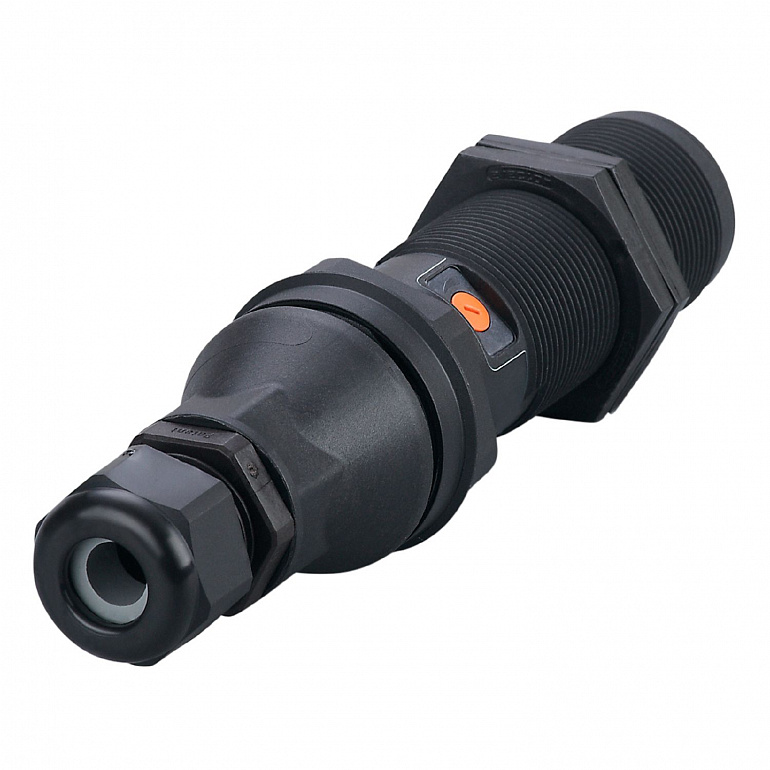

| Connection |
terminals: 0.34...1.5 mm²; Cable sheath: Ø 5...9 mm; Cable gland: M20 X 1.5 |
