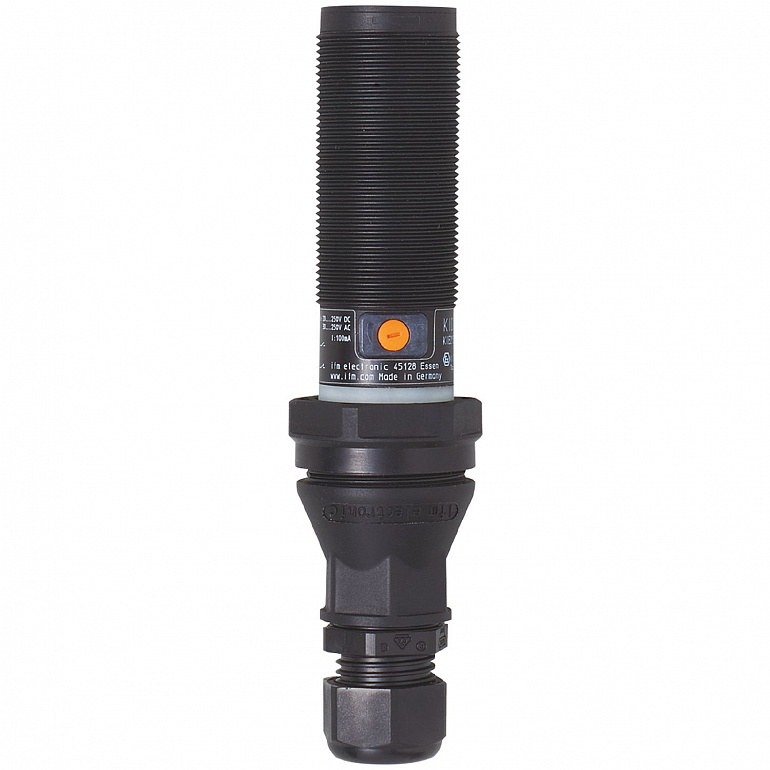

| Output function |
normally open / closed; (selectable) |
| Sensing range |
15 |
| Housing |
Threaded type |
| Dimensions |
M30 x 1.5 / L = 150 |
| Operating voltage |
30...250 AC / 20...250 DC |
| Protection class |
II |
| Reverse polarity protection |
yes |
| Measuring principle |
capacitive |
| Output function |
normally open / closed; (selectable) |
| Max. voltage drop switching output DC |
8 |
| Max. voltage drop switching output AC |
10 |
| Minimum load current |
5 |
| Max. leakage current |
2.5 (250 V AC) / 1.7 (110 V AC) / 1.5 (24 V DC) |
| Permanent current rating of switching output AC |
100; (150 (...40 °C)) |
| Permanent current rating of switching output DC |
100; (150 (...40 °C)) |
| Short-time current rating of switching output |
1000; (20ms / 0,5Hz) |
| Switching frequency AC |
10 |
| Switching frequency DC |
10 |
| Notes on switching frequency |
| only for resistive loads; 2 Hz for utilization category AC-140 |
|
| Short-circuit proof |
no |
| Overload protection |
no |
| Sensing range |
15 |
| Sensing range adjustable |
yes |
| Factory setting sensing range |
15 |
| Real sensing range Sr |
15 ± 10 % |
| Correction factor |
glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2 |
| Hysteresis |
1...15 |
| Switch-point drift |
-20...20 |
| Ambient temperature |
-20...60 |
| Protection |
IP 65; IP 67 |
| ATEX marking |
II 3D Ex tc IIIC T90°C Dc |
|
BVS 20 ATEX E 058 X; IECEx BVS 20.0061X |
| EMC |
| EN 61000-4-2 ESD | kV / 8 kV AD | | EN 61000-4-3 HF radiated | 3 V/m | | EN 61000-4-4 Burst | 2 kV | | EN 61000-4-5 Surge | 1 kV line to line, Ri: 2 Ohm | | EN 61000-4-6 HF conducted | 3 V | | EN 55011 | class B |
|
| MTTF |
305 |
| Weight |
150 |
| Housing |
Threaded type |
| Mounting |
non-flush mountable |
| Dimensions |
M30 x 1.5 / L = 150 |
| Thread designation |
M30 x 1.5 |
| Material |
PBT; PA |
| Display |
| Switching status | 1 x LED, yellow |
|
| Connection |
terminals: 0.34...2.5 mm²; Cable sheath: Ø 5...9 mm; Cable gland: M20 X 1.5 |
| Items supplied |
|
| Remarks |
| Recommendation: check the unit for reliable function after a short circuit. |
|
| Pack quantity |
1 pcs. |
