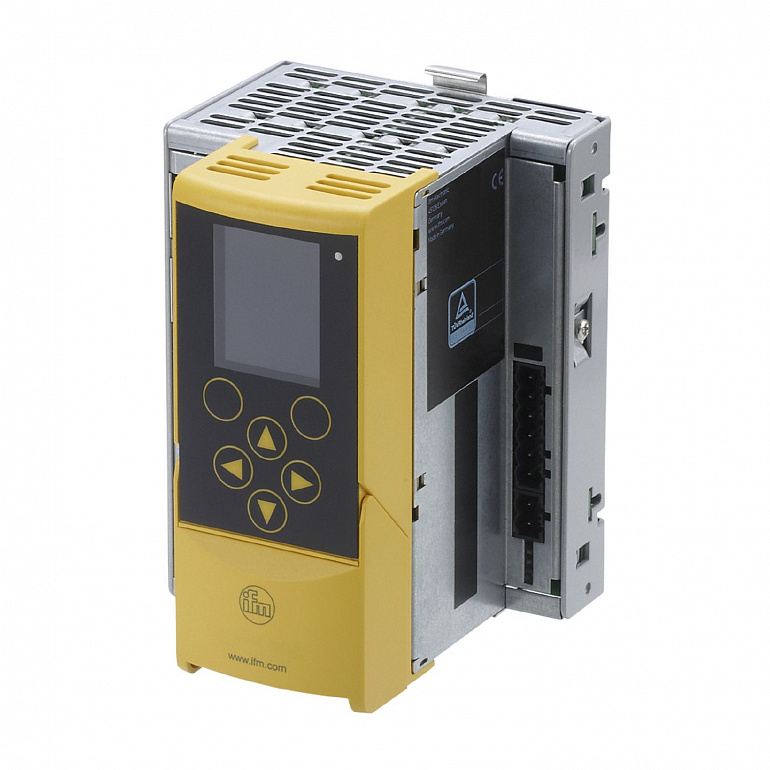

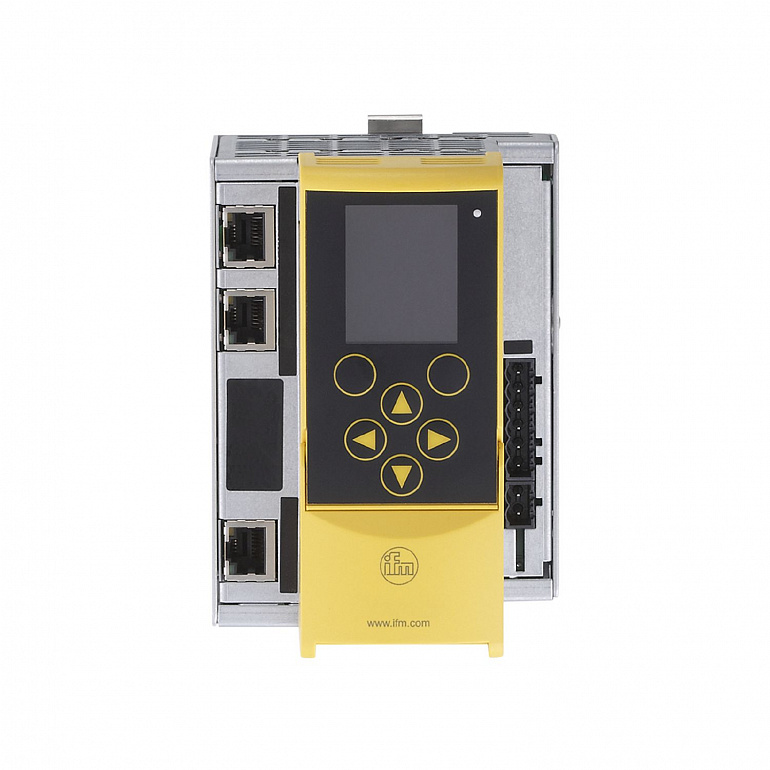

| Design |
housing for DIN rail mounting |
| Application |
PROFINET gateway with safe preprocessing |
| Operating voltage |
18...32 DC; (AUX) |
| Current consumption |
< 750 |
| Max. current consumption from AS-i |
AS-i 1: 10 mA; AS-i 2: 10 mA |
| Number of AS-i masters |
2 |
| Electrical separation |
yes |
| Input circuit of digital inputs |
PNP; (type 2 according to IEC 61131-2) |
| Sensor supply of the inputs |
to SELV/PELV |
| Voltage supply |
18...24 |
| Circuit |
PNP |
| Voltage range DC |
18...32; (to SELV/PELV) |
| Max. current load per output |
500; (utilization category DC-13 (control of electromagnets)) |
| Switching frequency AC |
< 25 |
| Short-circuit proof |
yes |
| Electrically separated |
yes |
| Communication interface |
Ethernet; OPC-UA |
| Protocol |
EtherCAT |
| Usage type |
Data transmission; Programming |
| Transmission rate |
100 MBaud |
| Protocol |
EtherNet/IP |
| Usage type |
Programming |
| Protocol |
FSoE |
| Transmission rate |
10 MBaud; 100 MBaud |
| Type of connector |
RJ45 |
| Protocol |
Modbus TCP |
| Usage type |
Programming |
| Transmission rate |
100 MBaud |
| Type of connector |
RJ45 |
| Protocol |
PROFINET |
| Usage type |
Data transmission |
| Note on interfaces |
|
| Transmission rate |
10 MBaud; 100 MBaud |
| Type of connector |
RJ45 |
| Protocol |
TCP/IP |
| Usage type |
Programming |
| Transmission rate |
10 MBaud; 100 MBaud |
| Type of connector |
RJ45 |
| Protocol |
UDP/IP |
| Usage type |
Programming |
| Ambient temperature |
0...45 |
| Note on ambient temperature |
|
| Storage temperature |
-20...70 |
| Max. relative air humidity |
95; (non condensing) |
| Max. height above sea level |
2000 |
| Protection |
IP 20 |
| Complies with the requirements |
| ISO 13849-1: 2015 Category 4, PL e | | IEC 61508 SIL 3 |
|
| MIssion time TM |
175200 |
| Mission time TM (additional indication) |
|
| PFH |
1,21E-08 |
| PFD |
1,04E-04 |
| AS-i version |
3.0 |
| AS-i master profile |
M4 |
| AS-i certificate |
125301 |
| Weight |
840.7 |
| Housing |
rectangular |

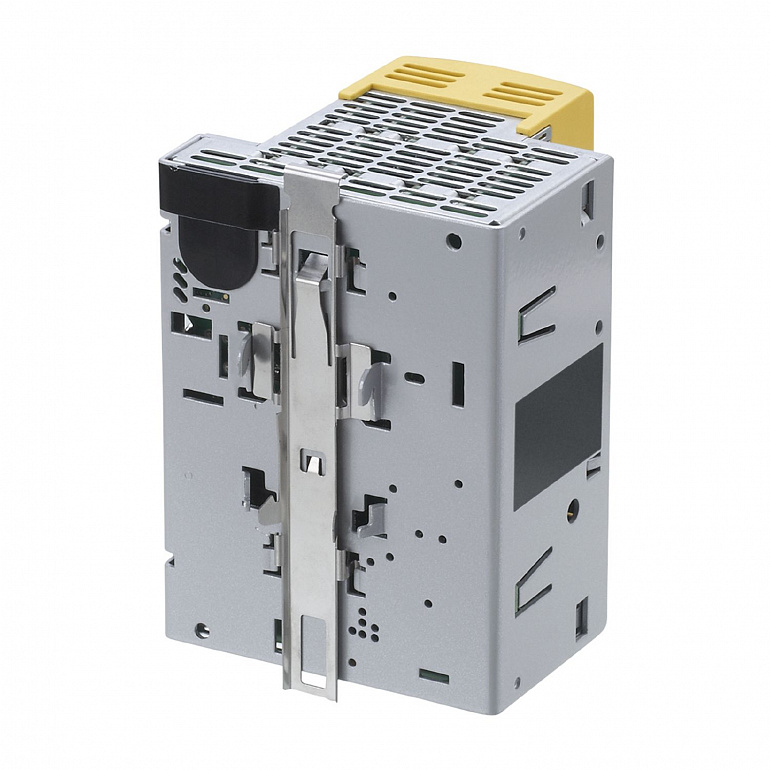

| Type of mounting |
Mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions |
135.5 x 93 x 106.2 |
| Material |
aluminum powder-coated; steel sheet galvanized; PC |
| Display |
| Function | 1 x LED, red/green | | full graphic LCD display |
|
| Items supplied |
|
| Pack quantity |
1 pcs. |
