| Application |
field installation; sanitary and wet areas in the food industry |
| Operating voltage |
26.5...31.6 DC |
| Max. current consumption from AS-i |
80 |
| Sensor supply of the inputs |
AS-i |
| Electrical design |
AS-i |
| Ambient temperature |
-25...70 |
| Storage temperature |
-40...80 |
| Protection |
IP 67; IP 68; IP 69K |
| EMC |
|
| AS-i version |
2.11; 3.0 |
| Extended addressing mode |
yes |
| AS-i master profile |
M2; M3; M4 |
| AS-i profile |
S-B.A.E |
| AS-i I/O configuration |
B |
| AS-i ID code |
A.E |
| AS-i certificate |
135301 |
| Data bits |
| Data bit | D0 | D1 | D2 | D3 | | LED 1 red | DO-0 | - | - | - | | LED 2 green | - | DO-1 | - | - | | pushbuttons 1 | - | - | DI-2 (NC) | - | | pushbuttons 2 | - | - | - | DI-3 (NO) |
|
| Weight |
276.55 |
| Housing |
rectangular |
| Type of mounting |
screw mounting |
| Dimensions |
118 x 46.5 x 50 |
| Material |
housing: stainless steel |
| Display |
| Power | LED, green | | errors | LED, red |
|
| Operating elements |

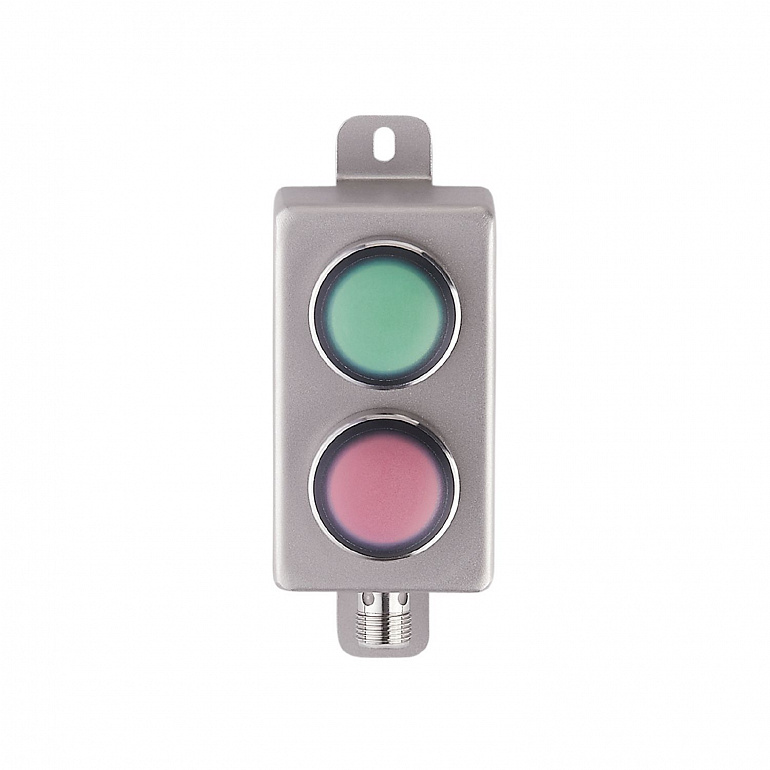

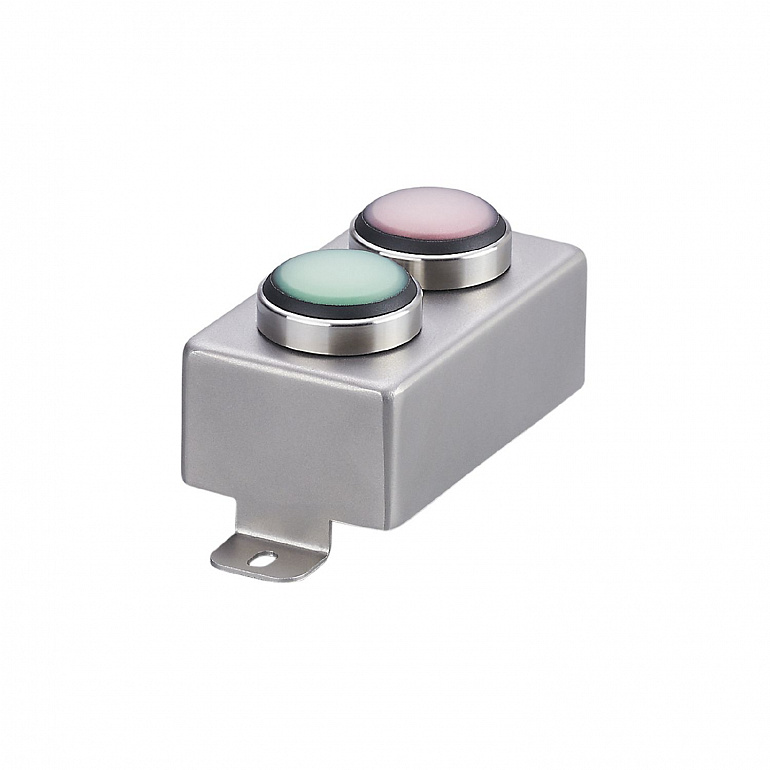

| 2 | freely programmable backlit function keys |
|
| Module connection |

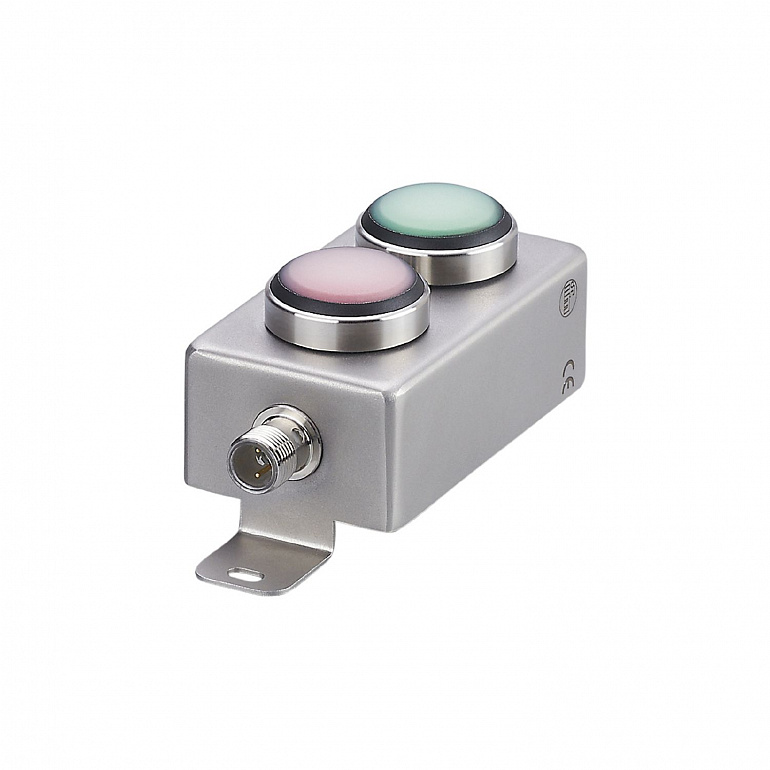

M12 |
| Remarks |
| The pushbutton modules (RAFI type RAFIX22) offer protection against accidental contact. |
|
| Pack quantity |
1 pcs. |
