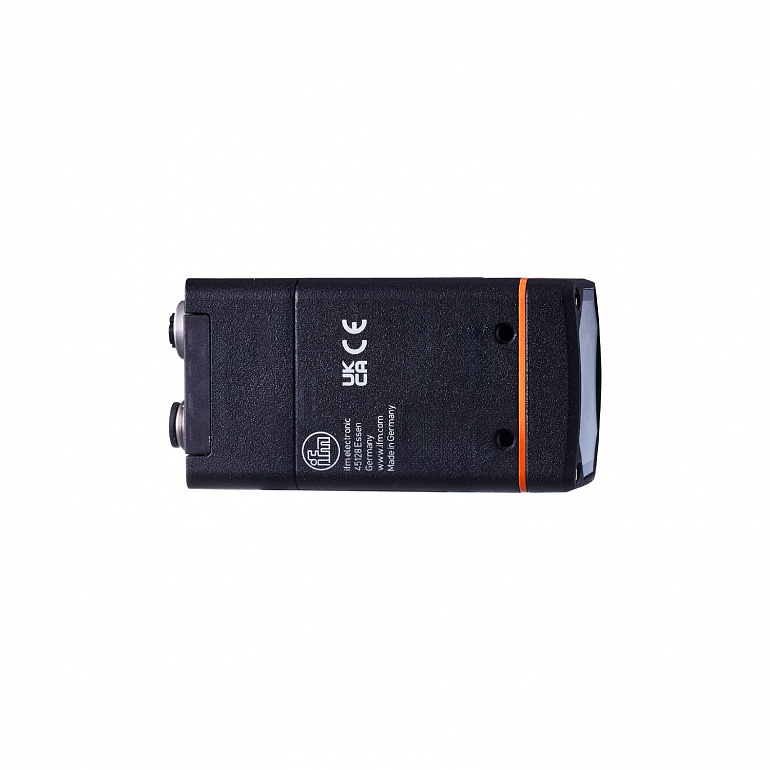

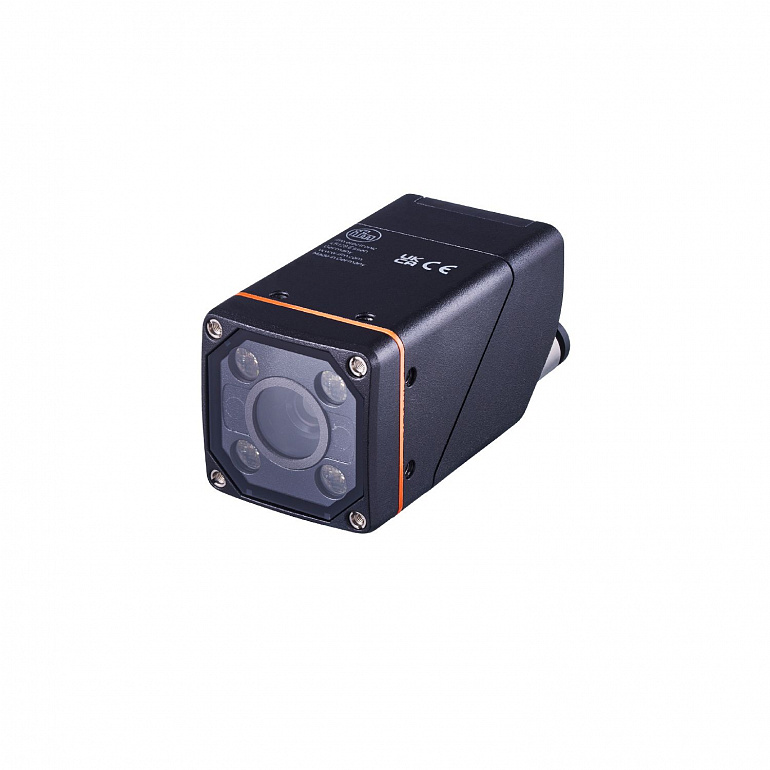

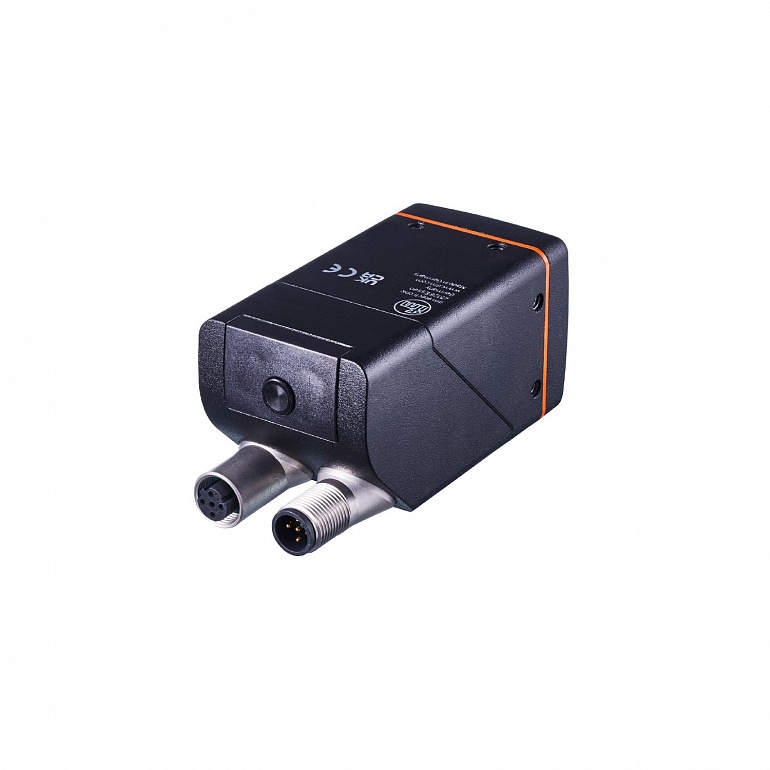

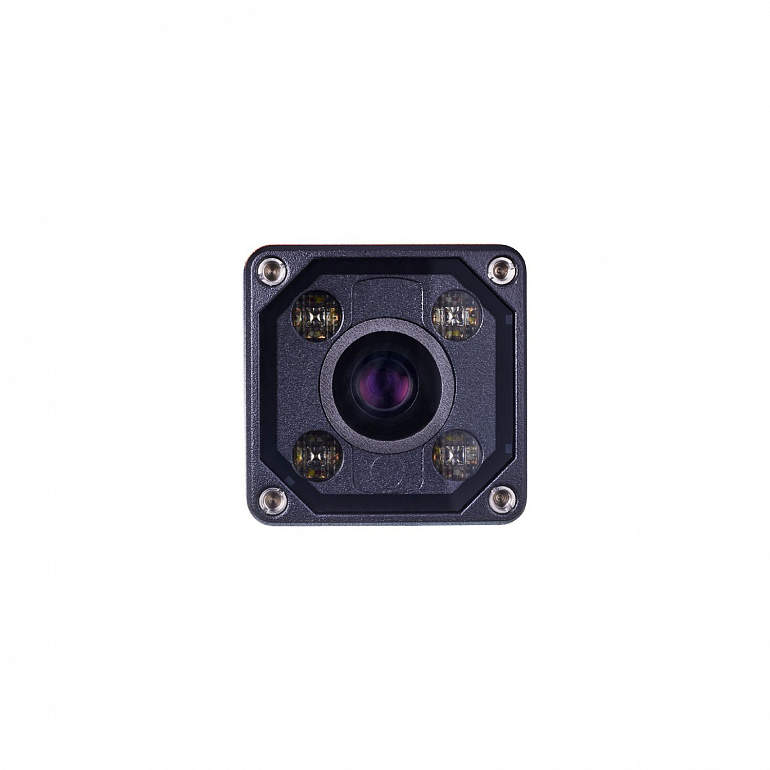

| Type of light |
RGBW |
| Image resolution |
1280 x 960 |
| Max. reading rate |
40 |
| System |
polarization filter |
| Operating voltage |
18...30 DC |
| Current consumption |
< 400; (18 V DC typical) |
| Max. current consumption |
800; (18V DC, with switched outputs, memory stick active) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Overvoltage category |
II |
| Type of light |
RGBW |
| Wave length |
625; 525; 453 |
| Image sensor |
CMOS image sensor black/white |
| Number of inputs and outputs |
Number of digital outputs: 2 |
| Trigger |
external; 24 V PNP/NPN (IEC 61131-2 Typ 3); internal |
| Total number of outputs |
2 |
| Electrical design |
PNP/NPN; (configurable) |
| Number of digital outputs |
2; (configurable) |
| Output function |
configurable |
| Max. voltage drop switching output DC |
2 |
| Max. current load per output |
100 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Field of view size |
| Operating distance | Field of view | | | | 85 | 28 x 21 | | | | 300 | 92 x 69 | | | | 500 | 152 x 114 | | | | 1000 | 302 x 227 | | |
|
| Operating distance |
> 85 |
| Image resolution |
1280 x 960 |
| Lens type |
standard |
| Readable codes |
Interleaved 2-of-5; Industrial 2-of-5; Code 39; Code 93; Code 128; Pharmacode; Codabar; EAN8; EAN8 Add-On 2; EAN8 Add-On 5; EAN13; EAN13 Add-On 2; EAN13 Add-On 5; UPC-A; UPC-A Add-On 2; UPC-A Add-On 5; UPC-E; UPC-E Add-On 2; UPC-E Add-On 5; GS1 DataBar Omnidirectional; GS1 DataBar Truncated; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Limited; GS1 DataBar Expanded; GS1 DataBar Expanded Stacked; GS1 - 128; MSI Barcode; ECC200; PDF-417; QR; Micro-QR; Aztec Code; GS1 ECC200; GS1 QR Code; GS1 Aztec Code |
| Code quality based on |
| | ISO / IEC 15415 | | | ISO / IEC 15416 | | | AIM DPM | | | ISO/IEC TR 29158 | | | SEMI T10 |
|
| Legible fonts |
Industrial; Document; OCR-A; OCR-B; Pharma; Semi; Universal; Dot Print |
| Text recognition |
yes |
| Polarization filter available |
yes |
| Omnidirectional reading |
yes |
| Max. inclination to the image plane |
45 |
| Max. reading rate |
40 |
| Parameter setting options |
teach button; via PC with ifm Vision Assistant |
| Communication interface |
IO-Link |
| Transmission type |
COM3 (230,4 kBaud) |
| IO-Link revision |
1.1 |
| Profiles |
| Common - I&D | Identification and Diagnosis | | Function | Locator | | Function | ProductURI |
|
| Required master port class |
A |
| Min. process cycle time |
4.2 |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 1699 |
|
| Number of Ethernet interfaces |
1 |
| Transmission standard |
10Base-T; 100Base-TX |
| Transmission rate |
10 MBit/s; 100 MBit/s |
| Protocol |
TCP/IP |
| Factory settings |
| IP address: 192.168.0.69 | | subnet mask: 255.255.255.0 (Class C) | | gateway IP address: 192.168.0.201 | | MAC address: see type label |
|
| Usage type |
Parameter setting |
| Ambient temperature |
-10...50 |
| Storage temperature |
-40...70 |
| Max. relative air humidity |
90; (non condensing) |
| Max. height above sea level |
4000 |
| Protection |
IP 65 |
| Degree of soiling |
3 |
| EMC |
| EN IEC 61000-6-4 radiation of interference | industrial environments | | EN IEC 61000-6-2 noise immunity | industrial environments |
|
| Shock resistance |
| EN 60068-2-27 | 50 g 11 ms / not repetitive | | EN 60068-2-27 | 40 g 6 ms / repetitive |
|
| Vibration resistance |
| EN 60068-2-6 | 2 g (10 ... 150 Hz) |
|
| Photobiological safety |
risk group 1; (EN 62471) |
| Electrical safety |
| EN IEC 61010-2-201 | electrical supply only via PELV circuits |
|
| MTTF |
58 |
| UL approval |
| Ta | -10... +50°C °C | | Enclosure type | 1 | | voltage supply | Limited Energy | | File number UL | E364788 |
|
| Weight |
592 |
| Type of mounting |
screw mounting; (bore hole M4 x 7 mm) |
| Dimensions |
45 x 45 x 86 |
| Material |
housing: diecast zinc powder-coated; front lens: PMMA; LED window: PC; pushbuttons: POM |
| Sealing material |
FKM |
| Tightening torque |
2.1 |
| Display |
| Function | 2 x LED, green | | Function | 2 x LED, yellow | | Teach-Funktion | 1 x LED, green | | Teach-Funktion | 1 x LED, yellow |
|
| Operating elements |
|
| Accessories (optional) |
| Operating software | | Mounting accessories | | Adapter cable | | protective and filter windows |
|
| Pack quantity |
1 pcs. |
