| Radio approval for |
USA; Canada; Australia; Singapore; Mexico; South Africa |
| Operating voltage |
24 DC |
| Current consumption |
700 |
| Operating frequency |
902...928 (FCC), 920...926 (ACMA), 920...923 (SDPPI ) max. 400 mW EIRP, 919...923 (SIRIM), 920...925 (IMDA), 915,3...920,9 (ICASA) |

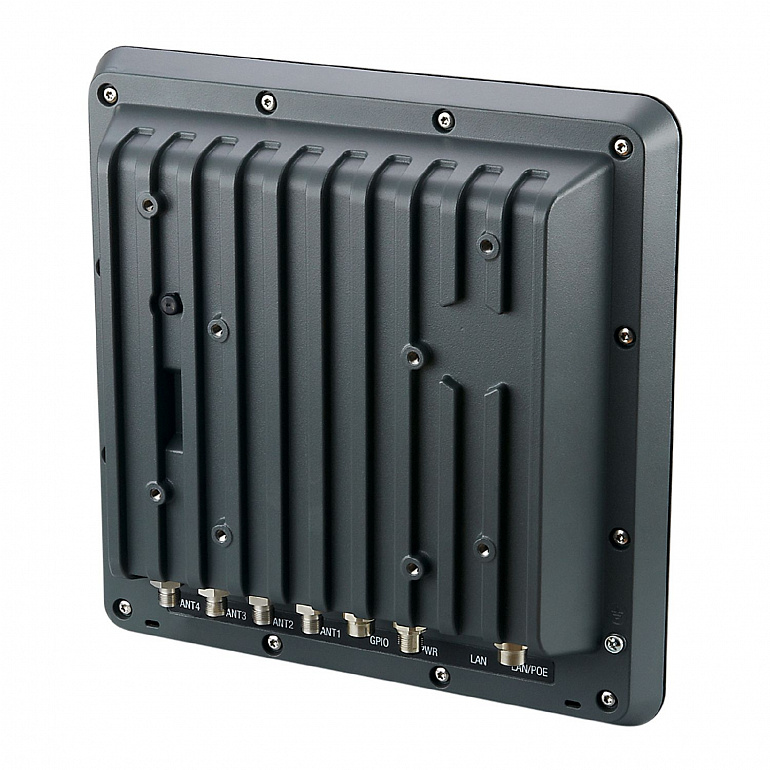

| Antenna connections |
4; (TNC Reverse) |
| RFID standard |
EPC Class1 GEN2/ISO 18000-6C |
| Transmission power ERP |
2000; (parameterizable in steps: 1 dB 50mW ... 2W) |
| Impedance |
50 |
| Number of inputs and outputs |
Number of digital inputs: 4; Number of digital outputs: 4 |
| Number of digital inputs |
4 |
| Number of digital outputs |
4 |
| Max. current load per output |
500; (max.) |
| RSSI threshold |
adjustable via software |
| Communication interface |
Ethernet |
| Protocol |
EtherNet/IP |
| Usage type |
Data transmission |
| Protocol |
TCP/IP |
| Usage type |
Parameter setting; Data transmission |
| Ambient temperature |
-20...55 |
| Storage temperature |
-40...85 |
| Protection |
IP 67 |
| Radio approval |
FCC Part15 |
| UL approval |
| Ta | -20...60 °C | | Enclosure type | IP67 | | voltage supply | SELV | | File number UL | E347020 |
|
| Weight |
3417.8 |
| Dimensions |
300 x 300 x 71 |
| Material |
housing: aluminum; Protective cover: plastics; TNC socket: brass / PTFE; connector: brass / plastics |

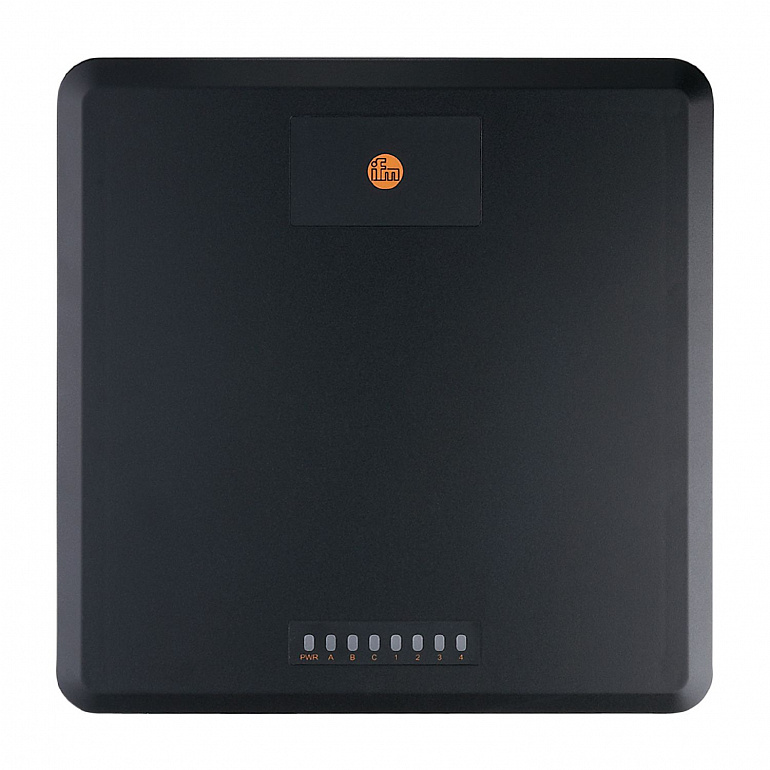

| Display |
| Power | 1 x LED, yellow/green | | 4 x LED, multi-color programmable |
|
| Acoustic signal |
buzzer |
| Pack quantity |
1 pcs. |
| LAN |
Connector: 1 x M12; coding: X |
| GPIO |
Connector: 1 x M12 |
| Power Supply |
Connector: 1 x M12; coding: A |
