| Pressure rating |
|
| Note on pressure rating |
| applies to the connection sensor/adapter | | higher pressure ranges on request |
|
| Pressure equipment directive |
A possible classification to PED depends on the application and has to be carried out by the user / operator. |
| Safety instructions |
The compatibility between medium and product material has to be checked in all applications. |
| Weight |
282.3 |
| Materials (wetted parts) |

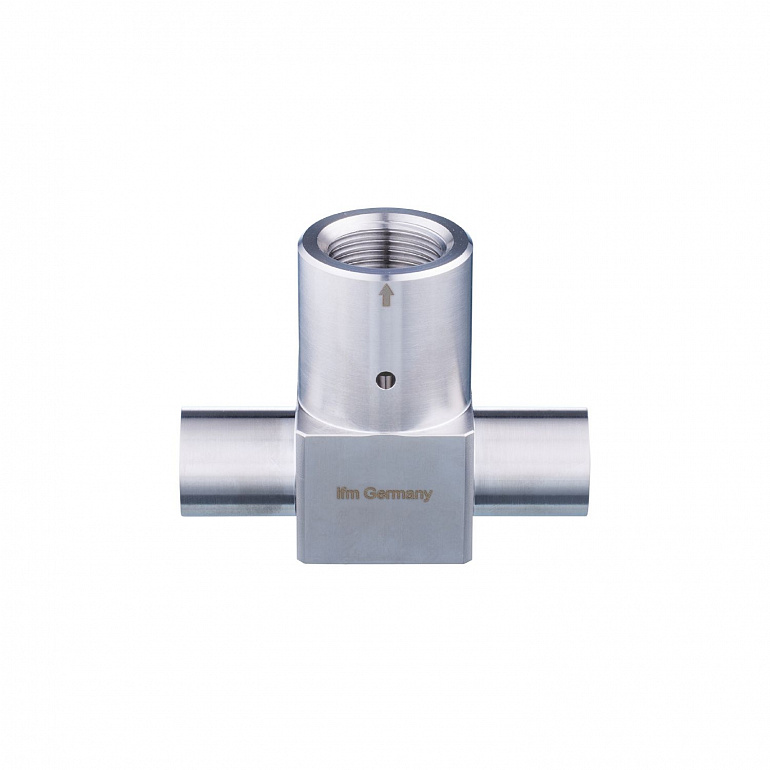

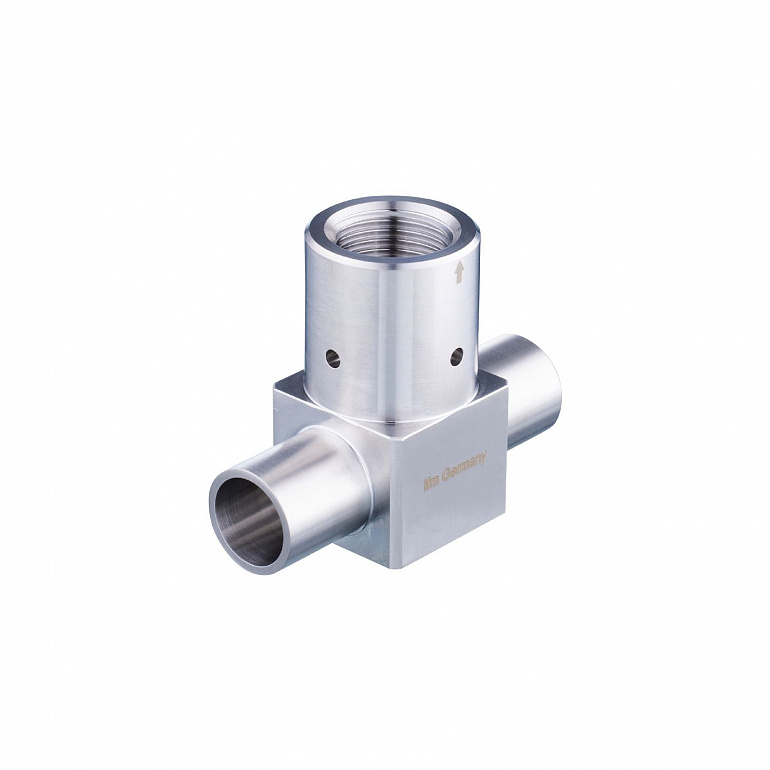

T-piece: stainless steel (1.4435 / 316L) surface characteristics: Ra < 0,8 µm / Rz = 4 µm |
| Sensor connection |
G 1/2 sealing cone |
| Process connection |
T-piece DN15 (19 x 1,5); Maße gemäß DIN 11866; Reihe A DIN |
| Pack quantity |
1 pcs. |
