| Protection | IP 67 |
| Material | housing: PBT / PC; screw: stainless steel (1.4305 / 303) |

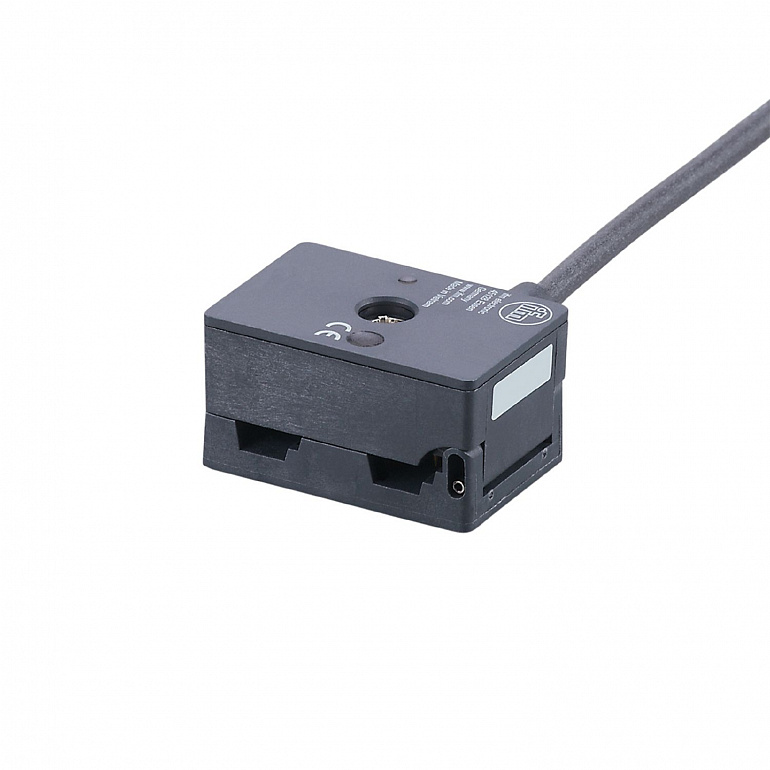

| Product designation | Flat cable insulation displacement connector |
| Ambient temperature | -25...75 |
Все характеристики
| Design | AS-i | ||
| Protection class | III | ||
| Max. current load per module/slot | 4 | ||
| Ambient temperature | -25...75 | ||
| Protection | IP 67 | ||
| Weight | 108.1 | ||
| Material | housing: PBT / PC; screw: stainless steel (1.4305 / 303) | ||
| Tightening torque | < 1.65 | ||
| Accessories (optional) |
|
||
| Remarks |
|
||
| Pack quantity | 1 pcs. | ||
| Connection | Cable: 2 m, Ø 4.3 mm; 2 x 0.5 mm² |
Приемущества
| For transition from AS-i flat cable to M12 connector |
| For extending the AS-i network |
| Easy and quick connection due to insulation displacement technology |
| connection cable with open cable end |
| High protection rating for the requirements of harsh industrial environments |
