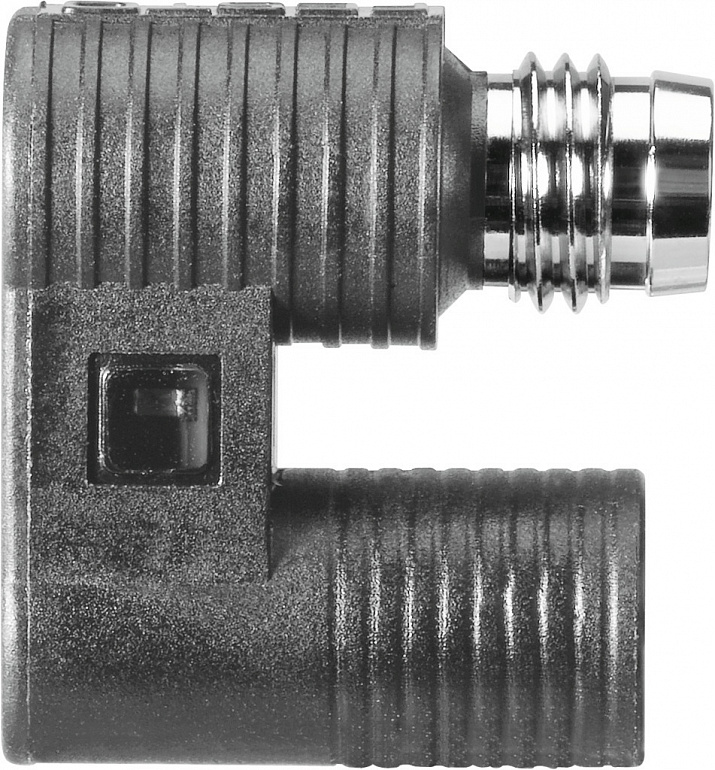

| Technical Data |
|
| Design |
Round |
| Based on standard |
EN 60947-5-2 |
| Symbol |
00991153 |
| Approval |
RCM trademark |
| CE mark (see declaration of conformity) |
To EU EMC DirectiveIn accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMCTo UK RoHS instructions |
| Note on materials |
RoHS-compliant |
| Measured variable |
Position |
| Measuring principle |
Magneto-inductive |
| Ambient temperature |
-2570 |
| Repetition accuracy |
0.2 |
| Switching output |
PNP |
| Switching element function |
N/O contact |
| Switch-on time |
0.5 |
| Switch-off time |
0.5 |
| Max. output current |
200 |
| Max. switching capacity DC |
6 |
| Voltage drop |
2 |
| Inductive protective circuit |
Integrated |
| Min. load current |
0.1 |
| Off-state current |
0.01 |
| Short circuit current rating |
Pulsed |
| Overload protection |
Available |
| Operational voltage range DC |
1030 |
| Residual ripple |
10 % |
| Reverse polarity protection |
For all electrical connections |
| Electrical connection 1, connection type |
Plugs |
| Electrical connection 1, connector system |
M8x1, A-coded, to EN 61076-2-104 |
| Electrical connection 1, number of connections/cores |
3 |
| Electrical connection 1, type of mounting |
Snap-lockingScrew-type lockNot rotatable |
| Electrical connection 1, compatible type of mounting |
Compatible with latching lockCompatible with rotatable screw-type lock |
| Electrical connection 1, connection pattern |
00991155 |
| Connection outlet orientation |
In-line |
| Material electrical contact |
Gold-plated brass |
| Type of mounting |
With accessories |
| Max. tightening torque |
0.8 |
| Mounting position |
optional |
| Product weight |
6 |
| Housing colour |
Black |
| Material housing |
PAPETPUR |
| Switching status indication |
Yellow LED |
| Degree of protection |
IP67 |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
