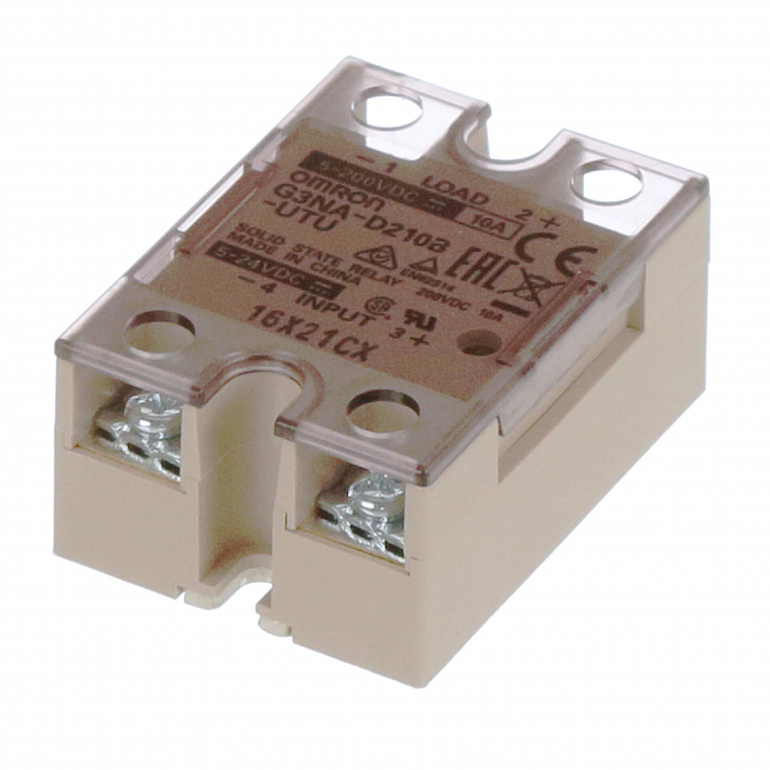

Solid state relay, surface mounting, 1-pole, 10 A, 5 to 200 VDC
Характеристики
| Application | ON/OFF control |
| Number of phases | 1 |
| Mounting method | Screw |
| Terminal type | Screw |
| Complete with socket | No |
| LED indicator | Yes |
| Rated operational voltage, AC | |
| Operating voltage range, AC | |
| Rated operational voltage, DC | 5-200 V |
| Operating voltage range, DC | 4-220 V |
| Rated operation current Ie at AC-1 | 20 A |
| Product Height (unpacked) | 58 mm |
| Product Width (unpacked) | 43 mm |
| Product Depth (unpacked) | 27 mm |
| Supply voltage DC | 5-24 V |
| Supply voltage AC | |
| Control current max. | 5 mA |
| Must operate voltage max. | 4 V |
| Must release voltage min. | 1 V |
| Maximum operating temperature | 80 °C |
| Minimum operating temperature | -30 °C |
| Isolation | Photocoupler |
| Switching at zero-crossing | No |
Все характеристики
| Specifications | |
| Application | ON/OFF control |
| Number of phases | 1 |
| Mounting method | Screw |
| Terminal type | Screw |
| LED indicator | Yes |
| Rated operational voltage, DC | 5-200 V |
| Operating voltage range, DC | 4-220 V |
| Rated operation current Ie at AC-1 | 20 A |
| Product Height (unpacked) | 58 mm |
| Product Width (unpacked) | 43 mm |
| Product Depth (unpacked) | 27 mm |
| Supply voltage DC | 5-24 V |
| Control current max. | 5 mA |
| Must operate voltage max. | 4 V |
| Must release voltage min. | 1 V |
| Maximum operating temperature | 80 °C |
| Minimum operating temperature | -30 °C |
| Switching at zero-crossing | No |
