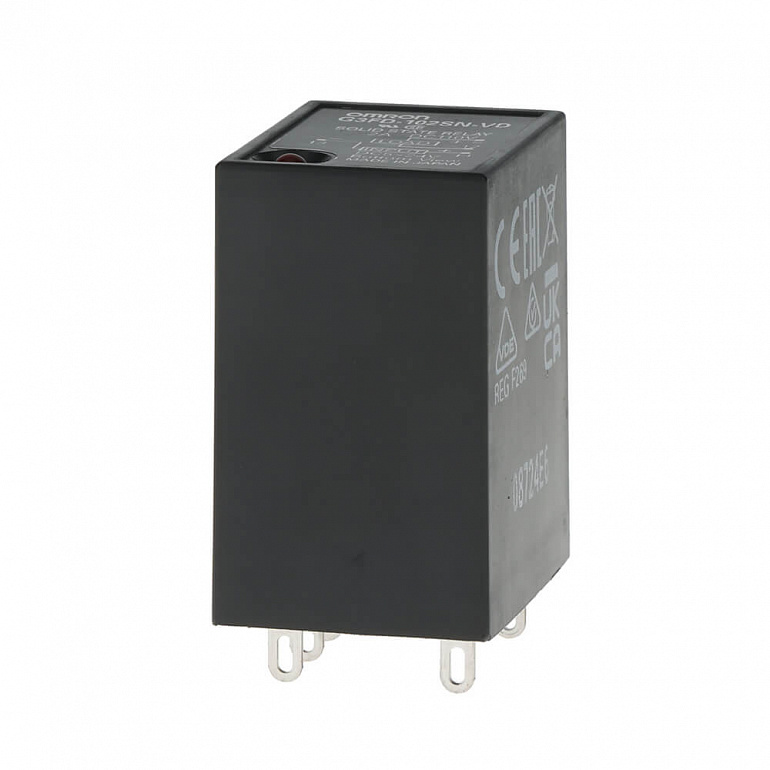

Solid state relay, 100VDC, 2A, plug-in, LED indicator, 5-24 VDC input
Характеристики
| Application | Interface |
| Number of phases | 1 |
| Mounting method | With plug-in socket |
| Terminal type | Plug-in |
| Complete with socket | No |
| LED indicator | Yes |
| Rated operational voltage, AC | |
| Operating voltage range, AC | |
| Rated operational voltage, DC | 5-110 V |
| Operating voltage range, DC | 3-125 V |
| Rated operation current Ie at AC-1 | 2 A |
| Product Height (unpacked) | |
| Product Width (unpacked) | |
| Product Depth (unpacked) | |
| Supply voltage DC | 5-24 V |
| Supply voltage AC | |
| Must operate voltage max. | 4 V |
| Must release voltage min. | 1 V |
| Maximum operating temperature | 80 °C |
| Minimum operating temperature | -30 °C |
| Isolation | Photocoupler |
| Switching at zero-crossing | No |
Все характеристики
| Specifications | |
| Application | Interface |
| Number of phases | 1 |
| Mounting method | With plug-in socket |
| Terminal type | Plug-in |
| Complete with socket | No |
| LED indicator | Yes |
| Rated operational voltage, DC | 5-110 V |
| Operating voltage range, DC | 3-125 V |
| Rated operation current Ie at AC-1 | 2 A |
| Supply voltage DC | 5-24 V |
| Must operate voltage max. | 4 V |
| Must release voltage min. | 1 V |
| Maximum operating temperature | 80 °C |
| Minimum operating temperature | -30 °C |
| Isolation | Photocoupler |
| Switching at zero-crossing | No |
