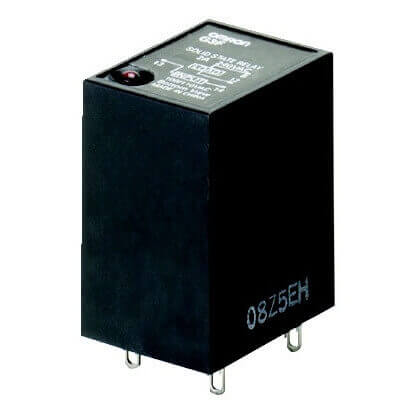

Solid State Relay, Phototriac coupler, Applied output load: 3 A at 100 to 240 VAC, Rated input voltage: 12 VDC, with operating indicator
Характеристики
| Application | Interface |
| Number of phases | 1 |
| Mounting method | With plug-in socket |
| Terminal type | Plug-in |
| Complete with socket | No |
| LED indicator | Yes |
| Rated operational voltage, AC | 100-240 V |
| Operating voltage range, AC | 75-264 V |
| Rated operational voltage, DC | |
| Operating voltage range, DC | |
| Rated operation current Ie at AC-1 | 3 A |
| Product Height (unpacked) | |
| Product Width (unpacked) | |
| Product Depth (unpacked) | |
| Supply voltage DC | 9.6-14.4 V |
| Supply voltage AC | |
| Must operate voltage max. | 9.6 V |
| Must release voltage min. | 1 V |
| Maximum operating temperature | 80 °C |
| Minimum operating temperature | -30 °C |
| Isolation | Phototriac |
| Switching at zero-crossing | No |
Все характеристики
| Specifications | |
| Application | Interface |
| Number of phases | 1 |
| Mounting method | With plug-in socket |
| Terminal type | Plug-in |
| Complete with socket | No |
| LED indicator | Yes |
| Rated operational voltage, AC | 100-240 V |
| Operating voltage range, AC | 75-264 V |
| Rated operation current Ie at AC-1 | 3 A |
| Supply voltage DC | 9.6-14.4 V |
| Must operate voltage max. | 9.6 V |
| Must release voltage min. | 1 V |
| Maximum operating temperature | 80 °C |
| Minimum operating temperature | -30 °C |
| Isolation | Phototriac |
| Switching at zero-crossing | No |
