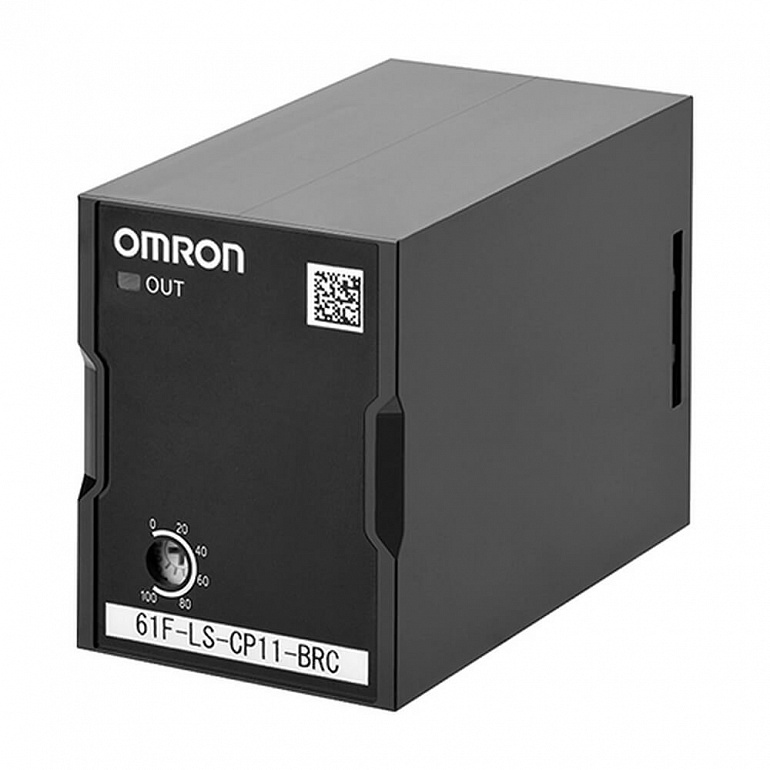

Floatless level switch, plug-in, DC power supply type, 11 pins, relay output, 24 VDC, adjustable sensitivity, (requires PF113A-E socket)
Характеристики
| Application | Acid chemicals, Alkali chemicals, Distilled water, Liquids with high specific resistance, Liquids with low specific resistance, Ordinary purified water, Salt water, Sewage water |
| Functions | Conductive level control |
| Features | |
| Cable length | |
| Installation type | Socket |
| Terminal type | Plug-in |
| Size | 41 mm |
| Supply voltage AC | |
| Supply voltage DC | 20.4-26.4 V |
| Output type | Relay |
| Contact description | SPST-NO |
| Body color | Black |
| Number of inputs for electrodes | 3 |
Все характеристики
| Specifications | |
| Application | Acid chemicals, Alkali chemicals, Distilled water, Liquids with high specific resistance, Liquids with low specific resistance, Ordinary purified water, Salt water, Sewage water |
| Functions | Conductive level control |
| Installation type | Socket |
| Terminal type | Plug-in |
| Size | 41 mm |
| Supply voltage DC | 20.4-26.4 V |
| Output type | Relay |
| Contact description | SPST-NO |
| Body color | Black |
| Number of inputs for electrodes | 3 |
