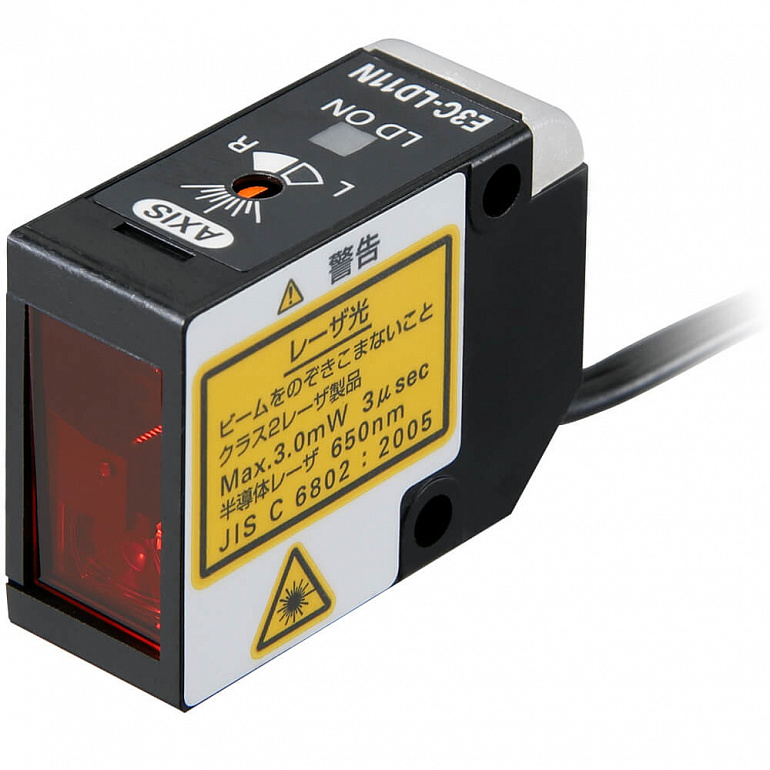

Laser sensor head, diffuse reflective, 1 m, spot beam, 2 m cable
Характеристики
| Shape | Cuboid |
| Sensing method | Diffuse reflective |
| Sensing distance | 1000 mm |
| Sensing distance (min.) | 30 mm |
| Setting method | Teach-In |
| Connection method | Cable |
| Cable length | 2 m |
| Response time | 0.08 ms |
| Material housing | ABS |
| Type of light | Laser diode, red light |
| Laser class | 2 |
| Spot size | 0.95 mm at 1 m |
| Power supply voltage | 12-24 V |
| Features | 28 x 0.2 mm at 150 mm (with lens), 33 x 15 mm at 150 mm (with lens), High precision positioning & detection |
Все характеристики
| Specifications | |
| Shape | Cuboid |
| Sensing method | Diffuse reflective |
| Sensing distance | 1000 mm |
| Sensing distance (min.) | 30 mm |
| Setting method | Teach-In |
| Connection method | Cable |
| Cable length | 2 m |
| Response time | 0.08 ms |
| Material housing | ABS |
| Type of light | Laser diode, red light |
| Laser class | 2 |
| Spot size | 0.95 mm at 1 m |
| Power supply voltage | 12-24 V |
| Features | 28 x 0.2 mm at 150 mm (with lens), 33 x 15 mm at 150 mm (with lens), High precision positioning & detection |
