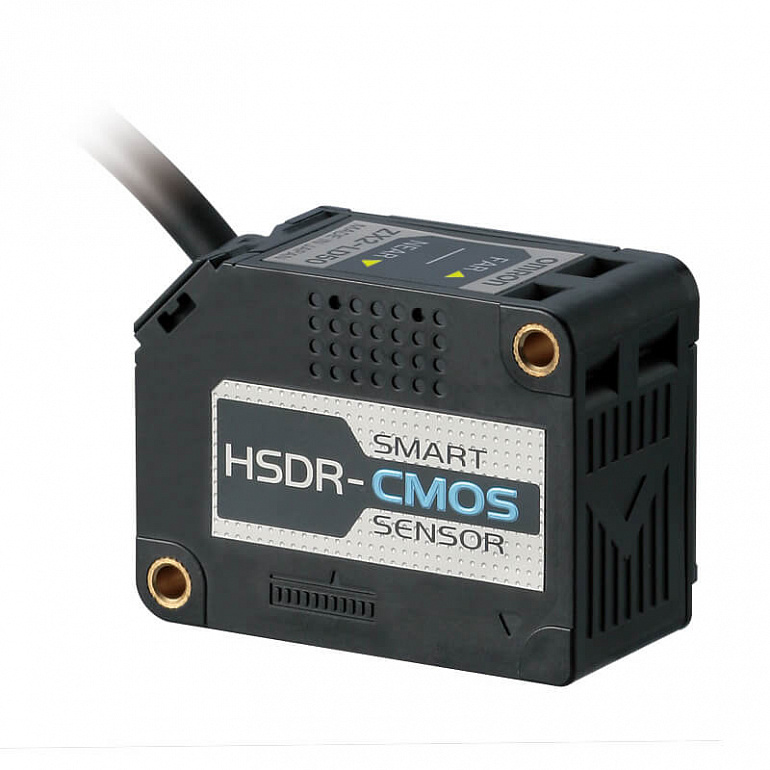

Laser displacement sensor, CMOS type, sensor head, spot beam type, 50mm +/-10mm, 1.5µm resolution, 0.5m cable
Характеристики
| Reference distance | 50 mm |
| Relative linearity deflection | 0.1 % |
| Measuring range length | 40-60 mm |
| Geometrical resolution | 0.0015 mm |
| Output type | |
| Sensing method | Diffuse reflective |
| Spot size | 60 µm |
| Height of sensor | 47.5 mm |
| Width of sensor | 22.6 mm |
| Overall length of sensor | 35.5 mm |
Все характеристики
| Specifications | |
| Reference distance | 50 mm |
| Relative linearity deflection | 0.1 % |
| Measuring range length | 40-60 mm |
| Geometrical resolution | 0.0015 mm |
| Sensing method | Diffuse reflective |
| Spot size | 60 µm |
| Height of sensor | 47.5 mm |
| Width of sensor | 22.6 mm |
| Overall length of sensor | 35.5 mm |
