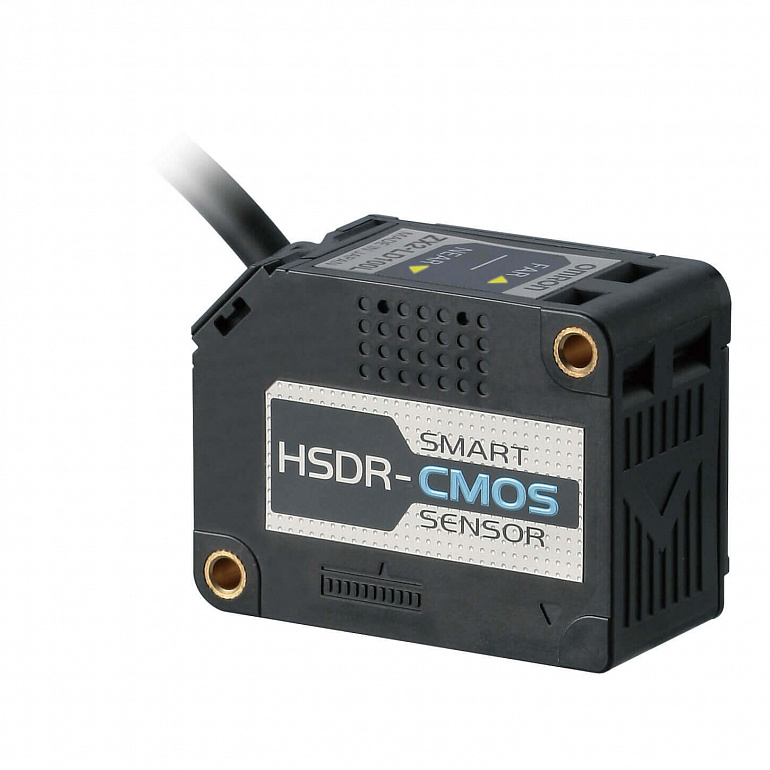

Laser displacement sensor, CMOS type, sensor head, spot beam type, 100mm +/-35mm, 5µm resolution, 0.5m cable
Характеристики
| Reference distance | 100 mm |
| Relative linearity deflection | 0.1 % |
| Measuring range length | 65-135 mm |
| Geometrical resolution | 0.005 mm |
| Output type | |
| Sensing method | Diffuse reflective |
| Spot size | 0.1 mm |
| Height of sensor | 47.5 mm |
| Width of sensor | 22.6 mm |
| Overall length of sensor | 35.5 mm |
Все характеристики
| Specifications | |
| Reference distance | 100 mm |
| Relative linearity deflection | 0.1 % |
| Measuring range length | 65-135 mm |
| Geometrical resolution | 0.005 mm |
| Sensing method | Diffuse reflective |
| Spot size | 0.1 mm |
| Height of sensor | 47.5 mm |
| Width of sensor | 22.6 mm |
| Overall length of sensor | 35.5 mm |
