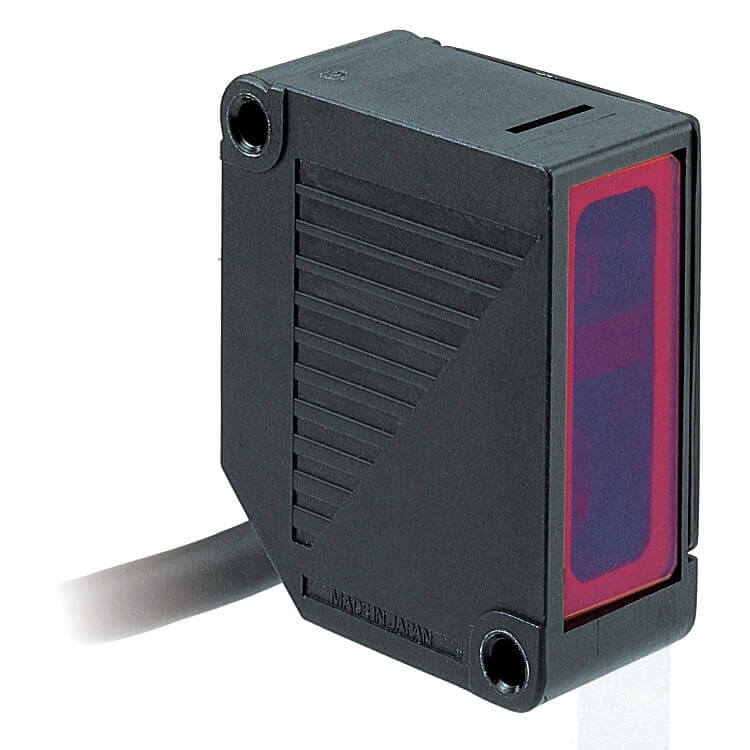

Laser displacement sensor head, 100+/-40mm, spot focus (requires amplifier)
Характеристики
| Reference distance | 100 mm |
| Relative linearity deflection | 0.2 % |
| Measuring range length | 60-140 mm |
| Measurement width | |
| Minimum sensing object | |
| Repeat accuracy | 16 µm |
| Output type | |
| Spot size | 0.1 mm |
| Sensing method | Diffuse reflective |
| Material housing | PBT |
| Degree of protection (IP) | IP50 |
Все характеристики
| Specifications | |
| Reference distance | 100 mm |
| Relative linearity deflection | 0.2 % |
| Measuring range length | 60-140 mm |
| Repeat accuracy | 16 µm |
| Spot size | 0.1 mm |
| Sensing method | Diffuse reflective |
| Material housing | PBT |
| Degree of protection (IP) | IP50 |
