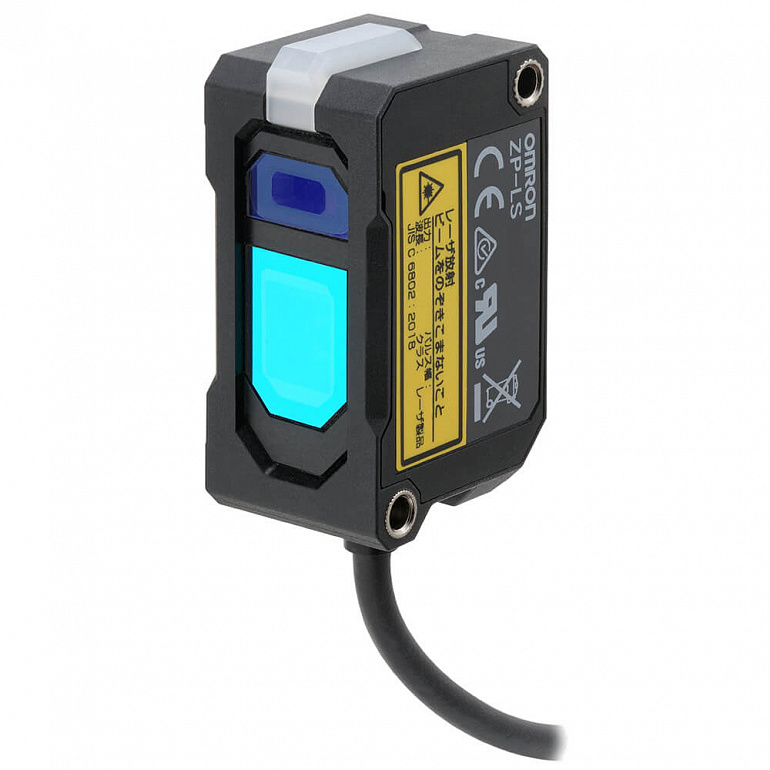

Laser displacement sensor, sensor head, diffuse, 100 mm±35 mm sensing range, 1.3 µm resolution, spot-beam, Class2, 2 m prewired
Характеристики
| Measuring range length | 65-135 mm |
| Geometrical resolution | 0.0013 mm |
| Reference distance | 100 mm |
| Relative linearity deflection | 0.085 % |
| Spot size | 0.12 mm |
| Repeat accuracy | 1.3 µm |
| Cable length | 2 m |
| Type of light | Laser diode, red light |
| Laser class | 2 |
Все характеристики
| Specifications | |
| Sensing method | Diffuse reflective |
| Measuring range length | 65-135 mm |
| Geometrical resolution | 0.0013 mm |
| Reference distance | 100 mm |
| Relative linearity deflection | 0.085 % |
| Spot size | 0.12 mm |
| Repeat accuracy | 1.3 µm |
| Cable length | 2 m |
| Type of light | Laser diode, red light |
| Laser class | 2 |
| Connection method | M8 pigtail connector 4 pin |
| Degree of protection (IP) | IP67 |
| Material housing | PBT |
