Описание

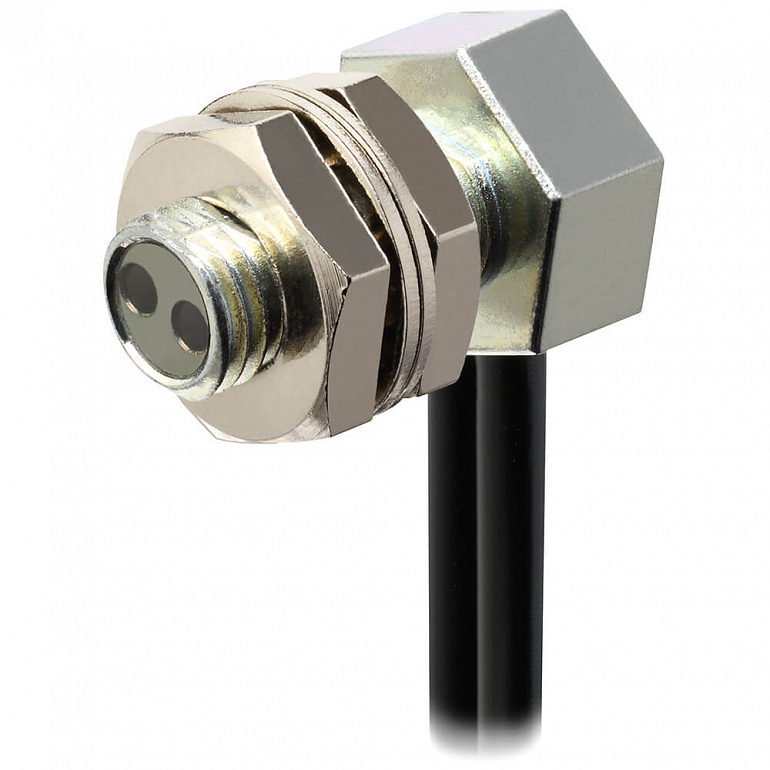

Fiber optic sensor head, retro-reflective, transparent object detection, M6 hexagonal back, right-angled head, integrated lens, R2 flexible fiber, 2 m cable
Характеристики
| Sensing method |
Retro-reflective |
| Shape |
Threaded |
| Size |
M6 |
| Application |
Transparent object detection |
| Features |
90° cable exit, Flexible fiber, Hexagonal back |
| Temperature range |
-40-70 °C |
| Sensing distance |
2020 mm |
| Cable length |
2 m |
| Bending radius |
2 mm |
| Free cut |
Yes |
| Material core |
Plastic |
| Degree of protection (IP) |
IP50 |
| Sensing surface orientation |
Right-angle |
| Material sheath |
Polyethylene |
Все характеристики
| Specifications |
|
| Sensing method |
Retro-reflective
|
| Shape |
Threaded
|
| Size |
M6
|
| Application |
Transparent object detection
|
| Features |
90° cable exit, Flexible fiber, Hexagonal back
|
| Temperature range |
-40-70 °C
|
| Sensing distance |
2020 mm
|
| Cable length |
2 m
|
| Bending radius |
2 mm
|
| Free cut |
Yes |
| Material core |
Plastic
|
| Degree of protection (IP) |
IP50
|
| Sensing surface orientation |
Right-angle
|
| Material sheath |
Polyethylene
|
