Описание

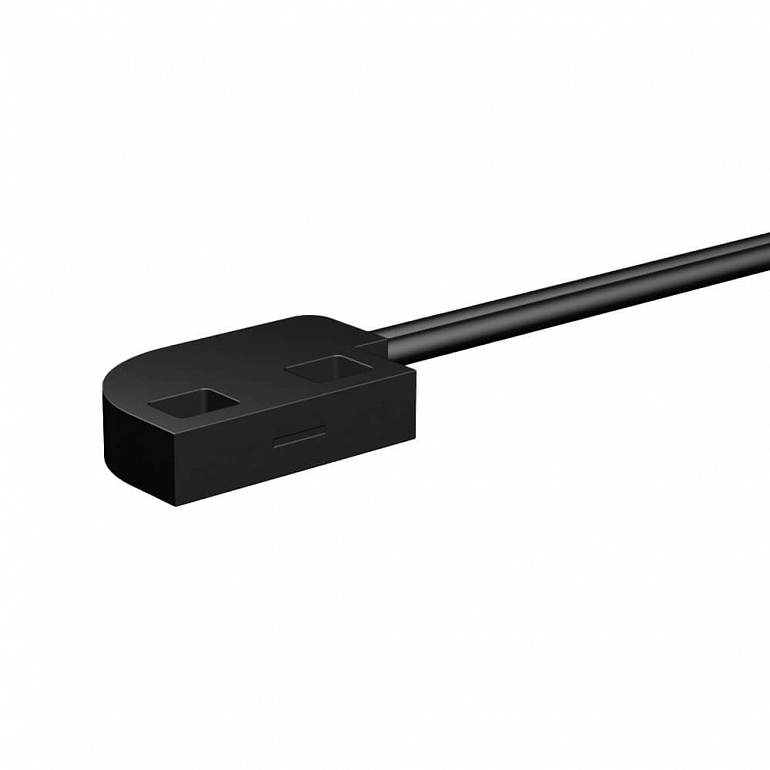

Fiber optic sensor head, diffuse, liquid level detection, tube mounting without diameter restrictions, R4 fiber, 2 m cable
Характеристики
| Sensing method |
Diffuse reflective |
| Shape |
Square |
| Size |
|
| Application |
Liquid level detection |
| Features |
|
| Temperature range |
-40-70 °C |
| Sensing distance |
0 mm |
| Cable length |
2 m |
| Bending radius |
4 mm |
| Free cut |
Yes |
| Material core |
Plastic |
| Degree of protection (IP) |
IP67 |
| Sensing surface orientation |
Side-view |
| Material sheath |
Polyethylene |
Все характеристики
| Specifications |
|
| Sensing method |
Diffuse reflective
|
| Shape |
Square
|
| Product Width (unpacked) |
15 mm
|
| Product Depth (unpacked) |
5 mm
|
| Product Height (unpacked) |
23.5 mm
|
| Application |
Liquid level detection
|
| Temperature range |
-40-70 °C
|
| Sensing distance |
0 mm
|
| Cable length |
2 m
|
| Bending radius |
4 mm
|
| Free cut |
Yes |
| Material core |
Plastic
|
| Degree of protection (IP) |
IP67
|
| Sensing surface orientation |
Side-view
|
| Material sheath |
Polyethylene
|
