Описание

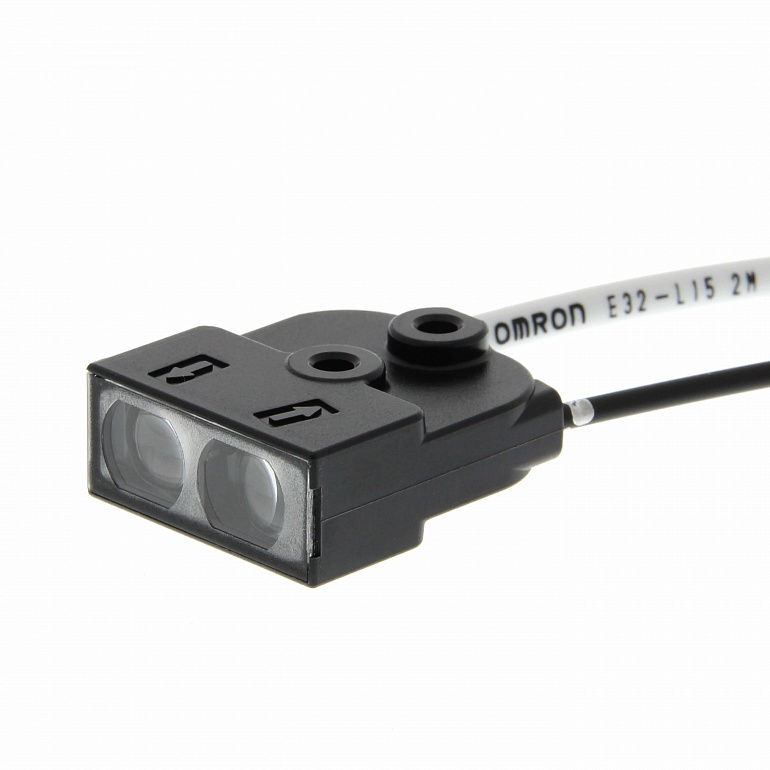

Fiber optic sensor head, limited reflective, square, top view, intregrated lens, R25 fiber, 2 m cable
Характеристики
| Sensing method |
Limited reflective |
| Shape |
Square |
| Size |
|
| Application |
Object detection |
| Features |
Small spot with lens |
| Temperature range |
-40-70 °C |
| Sensing distance |
50 mm |
| Cable length |
2 m |
| Bending radius |
25 mm |
| Free cut |
Yes |
| Material core |
Plastic |
| Degree of protection (IP) |
IP50 |
| Sensing surface orientation |
Top-view |
| Material sheath |
Polyethylene |
Все характеристики
| Specifications |
|
| Sensing method |
Limited reflective
|
| Shape |
Square
|
| Product Width (unpacked) |
25.6 mm
|
| Product Depth (unpacked) |
11.6 mm
|
| Product Height (unpacked) |
29 mm
|
| Application |
Object detection
|
| Features |
Small spot with lens
|
| Temperature range |
-40-70 °C
|
| Sensing distance |
50 mm
|
| Cable length |
2 m
|
| Bending radius |
25 mm
|
| Free cut |
Yes |
| Material core |
Plastic
|
| Degree of protection (IP) |
IP50
|
| Sensing surface orientation |
Top-view
|
| Material sheath |
Polyethylene
|
