Описание

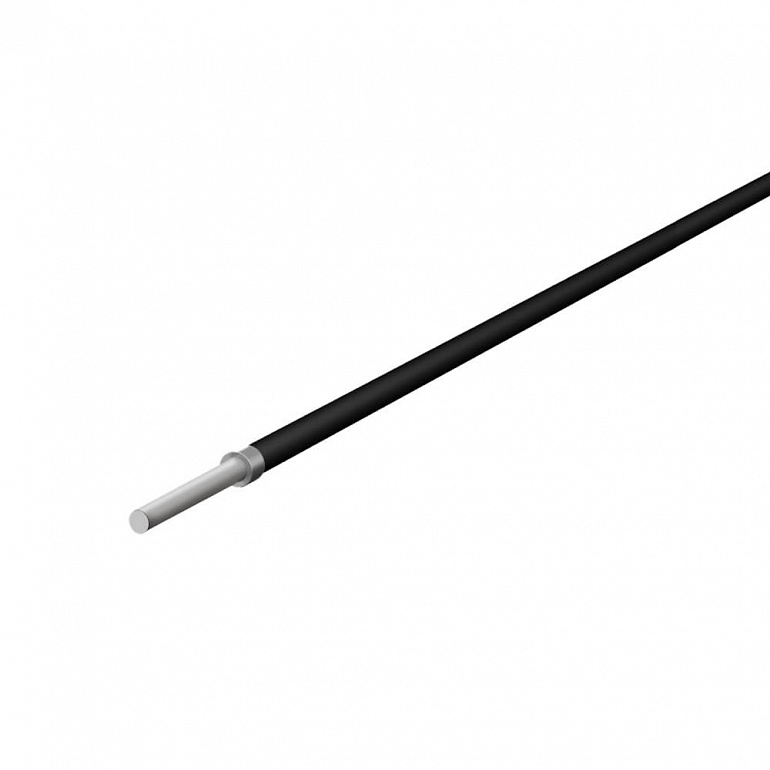

Fiber optic sensor head, diffuse, cylindrical axial, diameter 2 mm, to be used with lens, R25 fiber, 1 m cable
Характеристики
| Sensing method |
Diffuse reflective |
| Shape |
Cylindrical axial |
| Size |
dia 2 mm |
| Application |
Object detection |
| Features |
Miniature, Small spot with lens |
| Temperature range |
-40-70 °C |
| Sensing distance |
30 mm |
| Cable length |
1 m |
| Bending radius |
25 mm |
| Free cut |
Yes |
| Material core |
Plastic |
| Degree of protection (IP) |
|
| Sensing surface orientation |
Top-view |
| Material sheath |
Polyethylene |
Все характеристики
| Specifications |
|
| Sensing method |
Diffuse reflective
|
| Shape |
Cylindrical axial
|
| Size |
dia 2 mm
|
| Application |
Object detection
|
| Features |
Miniature, Small spot with lens
|
| Temperature range |
-40-70 °C
|
| Sensing distance |
30 mm
|
| Cable length |
1 m
|
| Bending radius |
25 mm
|
| Free cut |
Yes |
| Material core |
Plastic
|
| Sensing surface orientation |
Top-view
|
| Material sheath |
Polyethylene
|
