Описание

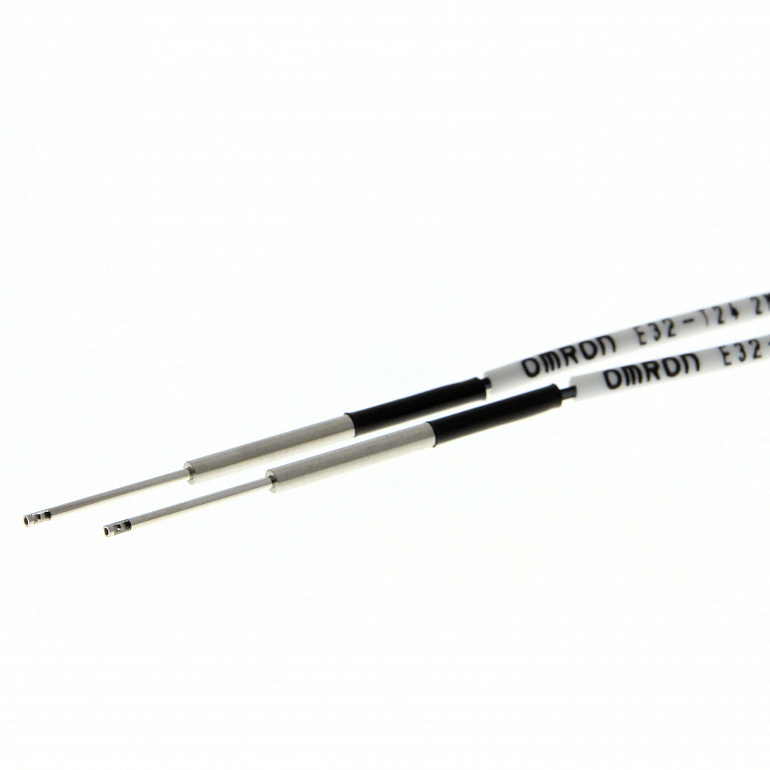

Fiber optic sensor head, through-beam, cylindrical radial diameter 2.5 mm with sleeve, diameter 0.81 mm, 15 mm lenght, R10 fiber, 2 m cable
Характеристики
| Sensing method |
Through-beam |
| Shape |
Sleeved |
| Size |
dia 2.5 mm |
| Application |
Object detection |
| Features |
Miniature |
| Temperature range |
-40-70 °C |
| Sensing distance |
670 mm |
| Cable length |
2 m |
| Sleeve diameter |
0.81 mm |
| Sleeve length |
15 mm |
| Bending radius |
10 mm |
| Free cut |
Yes |
| Material core |
Plastic |
| Degree of protection (IP) |
IP67 |
| Sensing surface orientation |
Side-view |
| Material sheath |
Polyethylene |
Все характеристики
| Specifications |
|
| Sensing method |
Through-beam
|
| Shape |
Sleeved
|
| Size |
dia 2.5 mm
|
| Application |
Object detection
|
| Features |
Miniature
|
| Temperature range |
-40-70 °C
|
| Sensing distance |
670 mm
|
| Cable length |
2 m
|
| Sleeve diameter |
0.81 mm
|
| Sleeve length |
15 mm
|
| Bending radius |
10 mm
|
| Free cut |
Yes |
| Material core |
Plastic
|
| Degree of protection (IP) |
IP67
|
| Sensing surface orientation |
Side-view
|
| Material sheath |
Polyethylene
|
