Описание

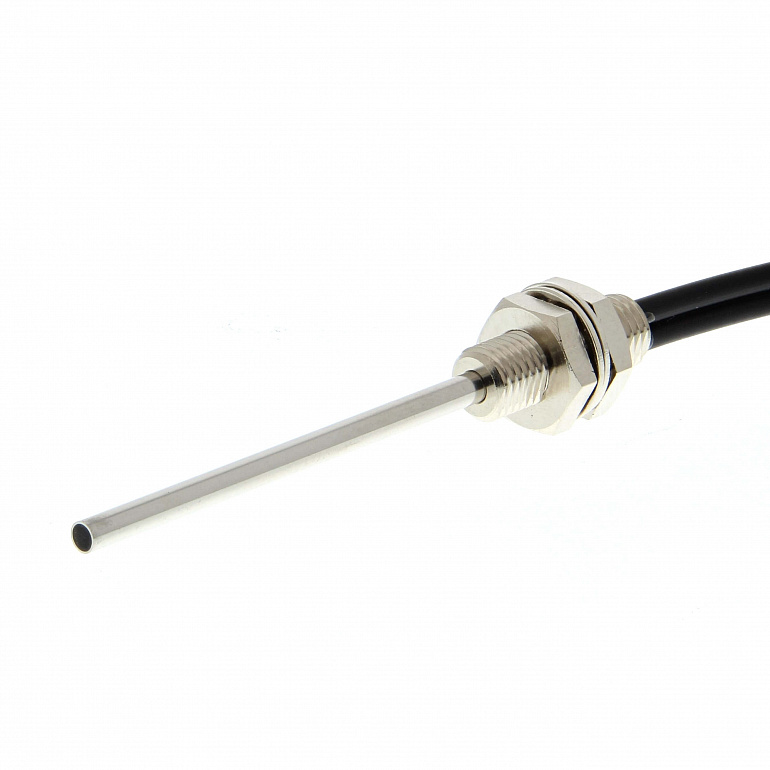

Fiber optic sensor head, diffuse, M6 cylindrical axial with sleeve, diameter 2.5 mm, 40 mm lenght, R25 fiber, 2 m cable
Характеристики
| Sensing method |
Diffuse reflective |
| Shape |
Sleeved |
| Size |
M6 |
| Application |
Object detection |
| Features |
Flexible fiber, Miniature |
| Temperature range |
-40-70 °C |
| Sensing distance |
900 mm |
| Cable length |
2 m |
| Sleeve diameter |
2.5 mm |
| Sleeve length |
40 mm |
| Bending radius |
25 mm |
| Free cut |
Yes |
| Material core |
Plastic |
| Degree of protection (IP) |
IP67 |
| Sensing surface orientation |
Top-view |
| Material sheath |
PVC |
Все характеристики
| Specifications |
|
| Sensing method |
Diffuse reflective
|
| Shape |
Sleeved
|
| Size |
M6
|
| Application |
Object detection
|
| Features |
Flexible fiber, Miniature
|
| Temperature range |
-40-70 °C
|
| Sensing distance |
900 mm
|
| Cable length |
2 m
|
| Sleeve diameter |
2.5 mm
|
| Sleeve length |
40 mm
|
| Bending radius |
25 mm
|
| Free cut |
Yes |
| Material core |
Plastic
|
| Degree of protection (IP) |
IP67
|
| Sensing surface orientation |
Top-view
|
| Material sheath |
PVC
|
