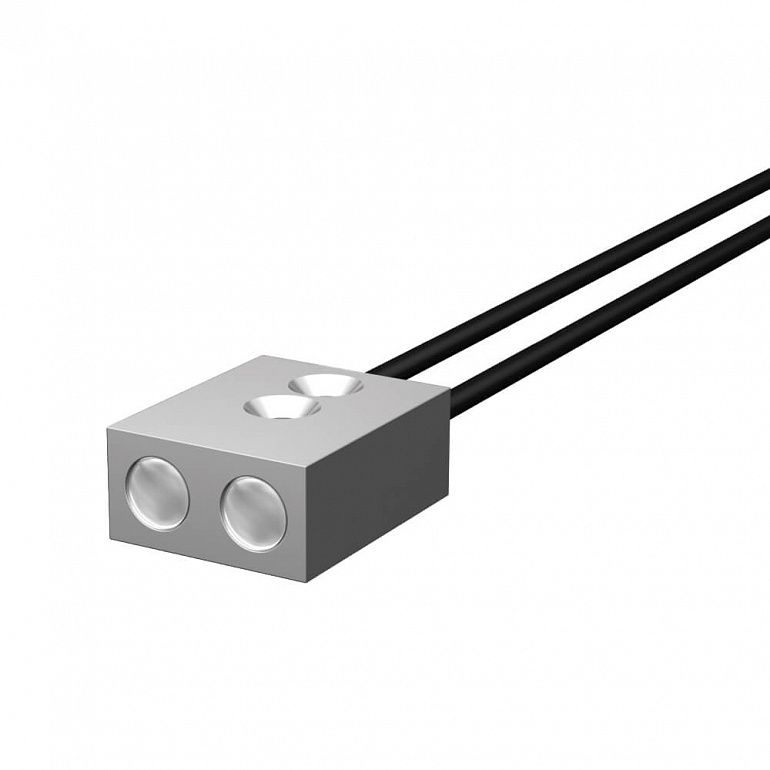

Fiber optic sensor head, diffuse, long distance detection, square, top-view, R4 bend resistant fiber, 2 m cable
Характеристики
| Sensing method | Diffuse reflective |
| Shape | Square |
| Size | |
| Application | Long distance detection |
| Features | Bend resistant |
| Temperature range | -40-70 °C |
| Sensing distance | 4000 mm |
| Cable length | 2 m |
| Bending radius | 4 mm |
| Free cut | Yes |
| Material core | Plastic |
| Degree of protection (IP) | IP67 |
| Sensing surface orientation | Top-view |
| Material sheath | PVC |
Все характеристики
| Specifications | |
| Sensing method | Diffuse reflective |
| Shape | Square |
| Product Width (unpacked) | 22 mm |
| Product Depth (unpacked) | 9 mm |
| Product Height (unpacked) | 17.5 mm |
| Application | Long distance detection |
| Features | Bend resistant |
| Temperature range | -40-70 °C |
| Sensing distance | 4000 mm |
| Cable length | 2 m |
| Bending radius | 4 mm |
| Free cut | Yes |
| Material core | Plastic |
| Degree of protection (IP) | IP67 |
| Sensing surface orientation | Top-view |
| Material sheath | PVC |
