Описание

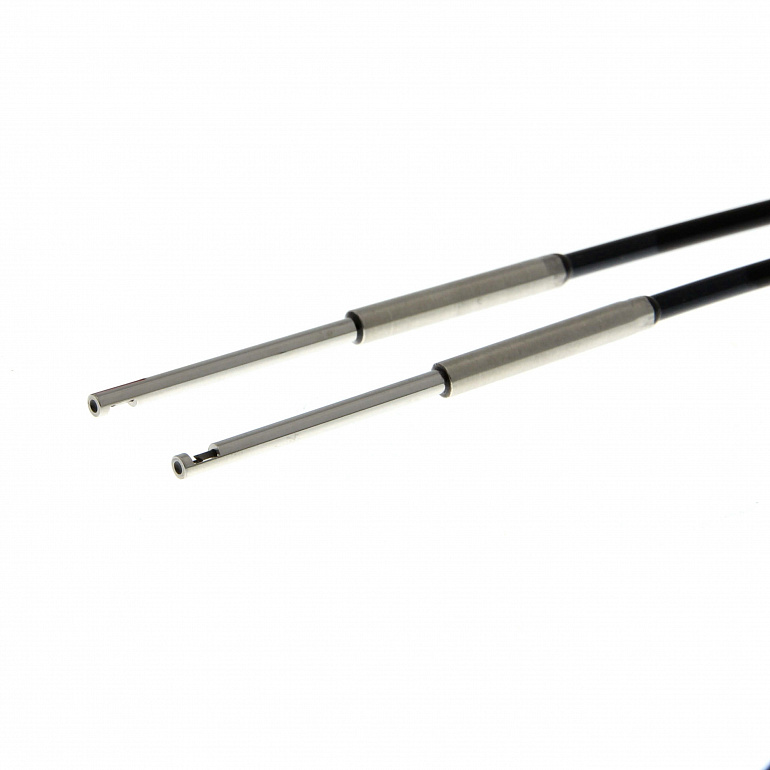

Fiber optic sensor head, through-beam, cylindrical radial, diameter 3 mm, R35 heat resistant fiber, up to 150ºC, 2 m cable
Характеристики
| Sensing method |
Through-beam |
| Shape |
Cylindrical radial |
| Size |
dia 3 mm |
| Application |
Object detection |
| Features |
Heat-resistant |
| Temperature range |
-40-150 °C |
| Sensing distance |
670 mm |
| Cable length |
2 m |
| Sleeve diameter |
|
| Sleeve length |
|
| Bending radius |
35 mm |
| Free cut |
Yes |
| Material core |
Plastic |
| Degree of protection (IP) |
IP67 |
| Sensing surface orientation |
Top-view |
| Material sheath |
Fluororesin |
Все характеристики
| Specifications |
|
| Sensing method |
Through-beam
|
| Shape |
Cylindrical radial
|
| Size |
dia 3 mm
|
| Application |
Object detection
|
| Features |
Heat-resistant
|
| Temperature range |
-40-150 °C
|
| Sensing distance |
670 mm
|
| Cable length |
2 m
|
| Bending radius |
35 mm
|
| Free cut |
Yes |
| Material core |
Plastic
|
| Degree of protection (IP) |
IP67
|
| Sensing surface orientation |
Top-view
|
| Material sheath |
Fluororesin
|
