Описание

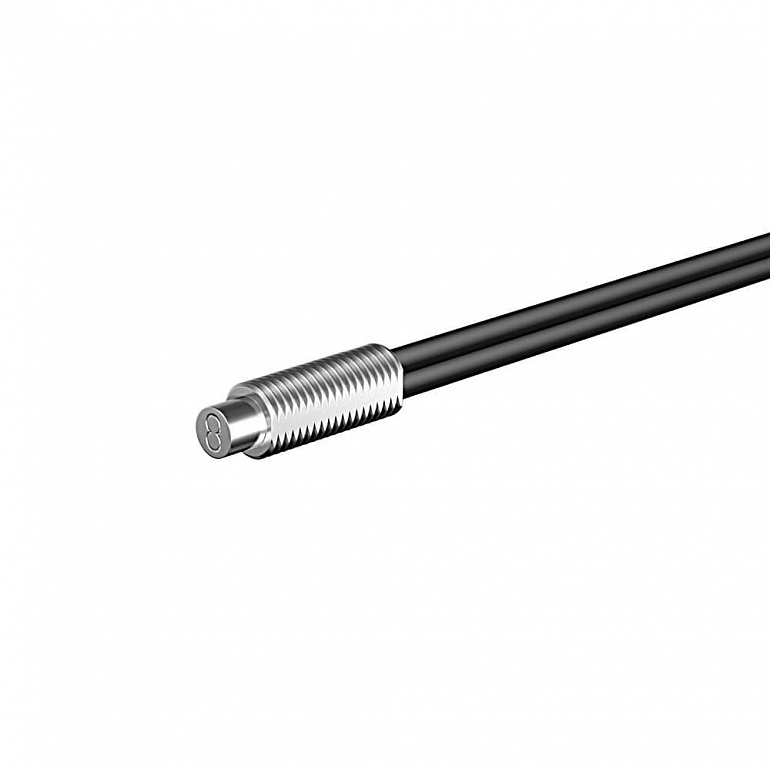

Fiber optic sensor head, diffuse, M6 cylindrical axial, R2 flexible and heat resistant fiber, up to 100ºC, 2 m cable
Характеристики
| Sensing method |
Diffuse reflective |
| Shape |
Threaded |
| Size |
M6 |
| Application |
Object detection |
| Features |
Flexible fiber, Heat-resistant |
| Temperature range |
-40-100 °C |
| Sensing distance |
1000 mm |
| Cable length |
2 m |
| Sleeve diameter |
|
| Sleeve length |
|
| Bending radius |
2 mm |
| Free cut |
Yes |
| Material core |
Plastic |
| Degree of protection (IP) |
IP50 |
| Sensing surface orientation |
Top-view |
| Material sheath |
PUR |
Все характеристики
| Specifications |
|
| Sensing method |
Diffuse reflective
|
| Shape |
Threaded
|
| Size |
M6
|
| Application |
Object detection
|
| Features |
Flexible fiber, Heat-resistant
|
| Temperature range |
-40-100 °C
|
| Sensing distance |
1000 mm
|
| Cable length |
2 m
|
| Bending radius |
2 mm
|
| Free cut |
Yes |
| Material core |
Plastic
|
| Degree of protection (IP) |
IP50
|
| Sensing surface orientation |
Top-view
|
| Material sheath |
PUR
|
