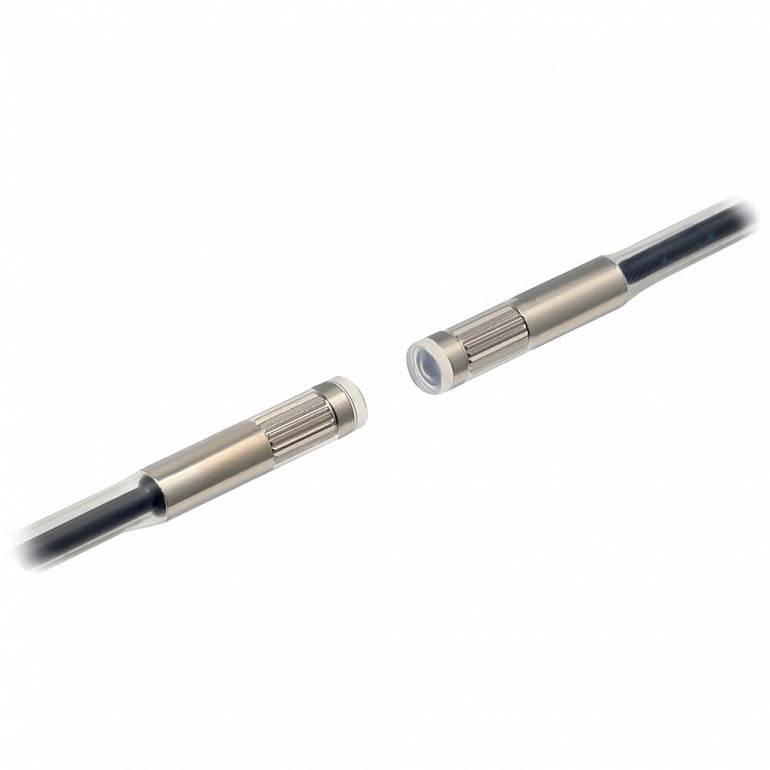

Fiber optic sensor head, through-beam, cylindrical axial, diameter 5 mm, R40 chemical and oil resistant fiber, 2 m cable
Характеристики
| Sensing method | Through-beam |
| Shape | Cylindrical axial |
| Size | dia 5 mm |
| Application | Object detection |
| Features | Chemical-resistant, Oil-resistant |
| Temperature range | -40-70 °C |
| Sensing distance | 4000 mm |
| Cable length | 2 m |
| Bending radius | 40 mm |
| Free cut | Yes |
| Material core | Plastic |
| Degree of protection (IP) | IP67 |
| Sensing surface orientation | Top-view |
| Material sheath | Fluororesin |
Все характеристики
| Specifications | |
| Sensing method | Through-beam |
| Shape | Cylindrical axial |
| Size | dia 5 mm |
| Application | Object detection |
| Features | Chemical-resistant, Oil-resistant |
| Temperature range | -40-70 °C |
| Sensing distance | 4000 mm |
| Cable length | 2 m |
| Bending radius | 40 mm |
| Free cut | Yes |
| Material core | Plastic |
| Degree of protection (IP) | IP67 |
| Sensing surface orientation | Top-view |
| Material sheath | Fluororesin |
