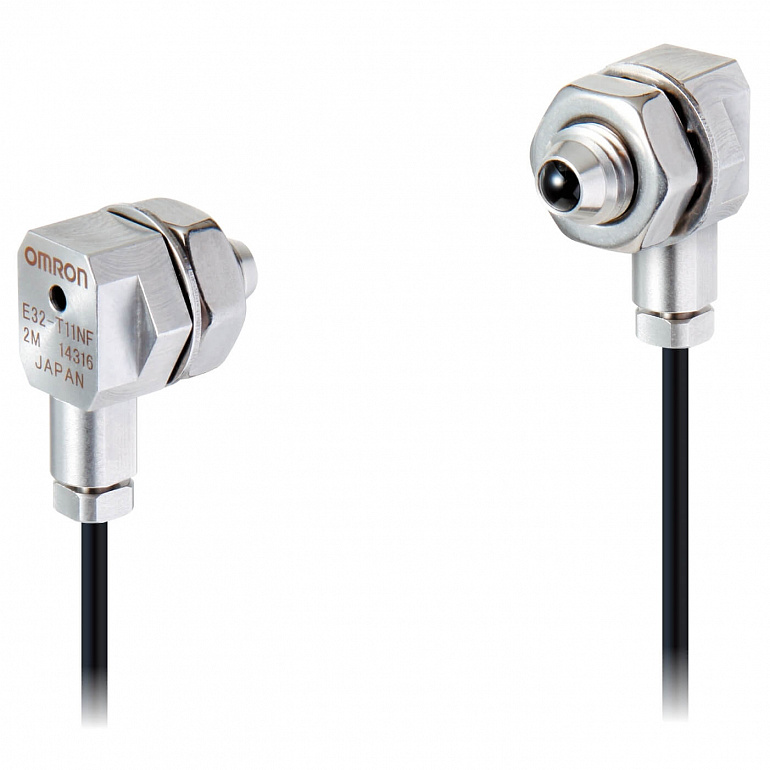

Fiber optic sensor head, through-beam, M8 hexagonal back, right-angled head, integrated lens, R1 flexible and oil resistant fiber, 2 m cable
Характеристики
| Sensing method | Through-beam |
| Shape | Threaded |
| Size | M8 |
| Application | Object detection |
| Features | 90° cable exit, Hexagonal back, Oil-resistant |
| Temperature range | -25-70 °C |
| Sensing distance | 4000 mm |
| Cable length | 2 m |
| Bending radius | 1 mm |
| Free cut | Yes |
| Material core | Plastic |
| Degree of protection (IP) | IP68G |
| Sensing surface orientation | Right-angle |
| Material sheath | Fluororesin |
Все характеристики
| Specifications | |
| Sensing method | Through-beam |
| Shape | Threaded |
| Size | M8 |
| Application | Object detection |
| Features | 90° cable exit, Hexagonal back, Oil-resistant |
| Temperature range | -25-70 °C |
| Sensing distance | 4000 mm |
| Cable length | 2 m |
| Bending radius | 1 mm |
| Free cut | Yes |
| Material core | Plastic |
| Degree of protection (IP) | IP68G |
| Sensing surface orientation | Right-angle |
| Material sheath | Fluororesin |
