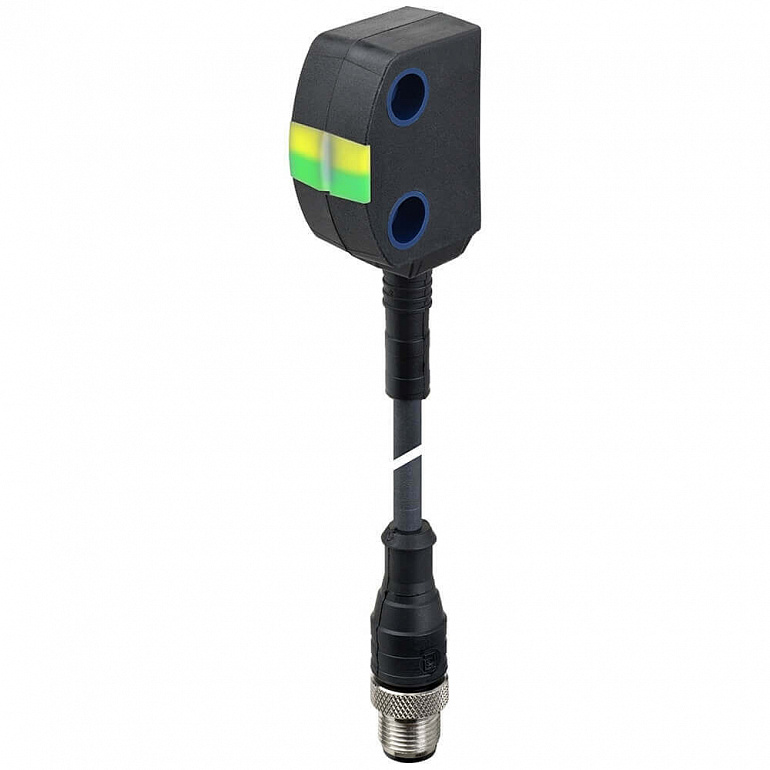

Non-contact Interlock Switch, RFID High-coded, PNP, Test Pulse, Pigtail with M12 connector 8-pole
Характеристики
| Coding | Unique |
| Connection method | M12 pigtail connector |
| Degree of protection (IP) | IP65/IP67 |
| Diagnostic LED | Yes |
| Door contacts NC | 2 |
| Door contacts NO | 1 |
| Door switch type | Non-contact, RFID coded |
| Guard-lock | No |
| High coding level | Yes |
| Material housing | PBT |
| Number of auxiliary outputs | 1 |
| Auxiliary monitoring output | PNP type, short-circuit proof |
| Cable exit direction | Bottom |
| Make before break | No |
| Max. differential travel | 20 % |
| Max. operating distance ON to OFF | 18 mm |
| Min. operating distance OFF to ON | 10 mm |
| Number of connectable switches | 30 max. (wiring length: 100 m max.) |
| Output test pulses | Yes |
| Output type | PNP |
| Teaching limitation | No |
| Vibration resistance | 10 to 55 Hz, amplitude 1.0 mm |
Все характеристики
| Specifications | |
| Coding | Unique |
| Connection method | M12 pigtail connector |
| Degree of protection (IP) | IP65/IP67 |
| Diagnostic LED | Yes |
| Door contacts NC | 2 |
| Door contacts NO | 1 |
| Door switch type | Non-contact, RFID coded |
| Guard-lock | No |
| High coding level | Yes |
| LED indicator | Yes |
| Material housing | PBT |
| Number of auxiliary outputs | 1 |
| Auxiliary monitoring output | PNP type, short-circuit proof |
| Cable exit direction | Bottom |
| Make before break | No |
| Max. differential travel | 20 % |
| Max. operating distance ON to OFF | 18 mm |
| Min. operating distance OFF to ON | 10 mm |
| Mounting method | M4 screws |
| Number of connectable switches | 30 max. (wiring length: 100 m max.) |
| Number of OSSD | 2 |
| Output test pulses | Yes |
| Output type | PNP |
| Shape | Rectangular compact |
| Switch without actuator | Yes |
| Teaching limitation | No |
| Vibration resistance | 10 to 55 Hz, amplitude 1.0 mm |
