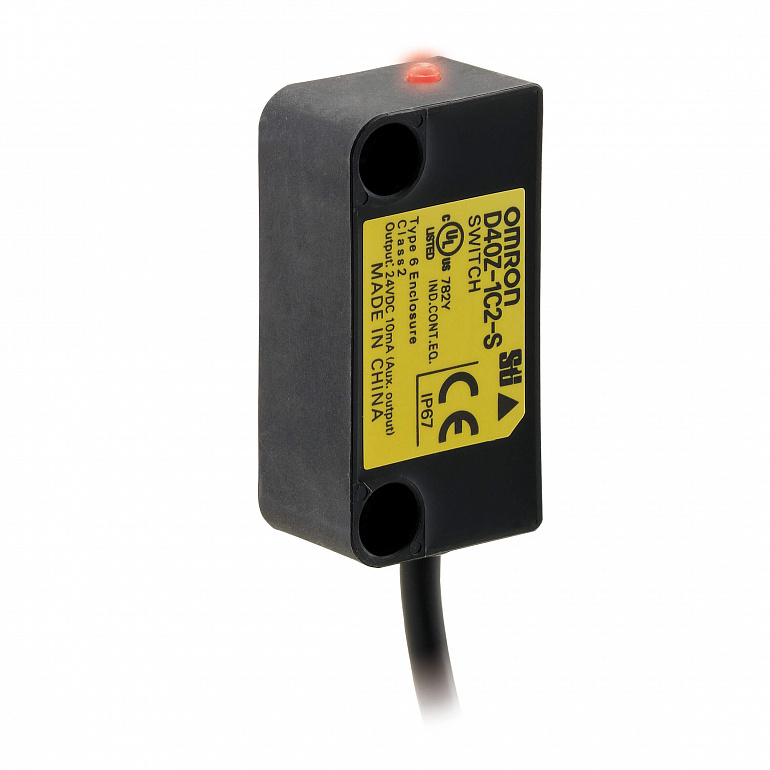

Safety non-contact door switch, Cat 4/Ple, 5m cable, switch only
Характеристики
| Switch without actuator | Yes |
| Ambient temperature (operating) | -10-65 °C |
| Degree of protection (IP) | IP67 |
| Material housing | PBT |
| Cable length | 5 m |
Все характеристики
| Specifications | |
| Switch without actuator | Yes |
| Min. operating distance OFF to ON | 5 mm |
| Max. operating distance ON to OFF | 15 mm |
| Max. differential travel | 20 % |
| Ambient temperature (operating) | -10-65 °C |
| Vibration resistance | 10 to 55 to 10 Hz (single amplitude: 0.75 mm, double amplitude: 1.5 mm) |
| Min. shock resistance | 300 m/s² |
| Degree of protection (IP) | IP67 |
| Material housing | PBT |
| Mounting method | M4 screws |
| Max. power consumption | 0.5 W |
| Auxiliary monitoring output | Photocoupler output: 24 V DC, load current: 10 mA |
| Cable length | 5 m |
| Number of connectable switches | 30 max. (wiring length: 100 m max.) |
| LED indicator | Yes |
