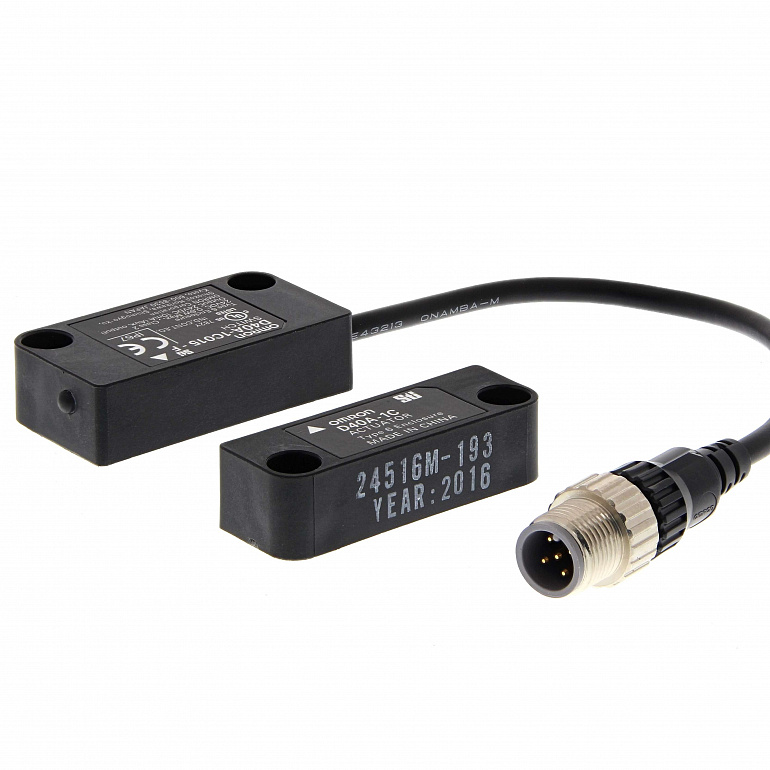

Non-contact door switches, D40A, 1 aux output, Pigtail with M12 connector 5-pole
Характеристики
| Door switch type | Non-contact |
| Guard-lock | No |
| Coding | Basic |
| Material housing | PBT |
| Ambient temperature (operating) | -10-55 °C |
| Door contacts NC | 1 |
| Door contacts NO | 1 |
| LED indicator | Yes |
| Connection method | M12 pigtail connector |
| Cable length | 0.15 m |
| Cable exit direction | Bottom |
| Degree of protection (IP) | IP67 |
| Switch without actuator | No |
Все характеристики
| Specifications | |
| Door switch type | Non-contact |
| Guard-lock | No |
| Coding | Basic |
| Material housing | PBT |
| Ambient temperature (operating) | -10-55 °C |
| Door contacts NC | 1 |
| Door contacts NO | 1 |
| LED indicator | Yes |
| Connection method | M12 pigtail connector |
| Cable length | 0.15 m |
| Cable exit direction | Bottom |
| Degree of protection (IP) | IP67 |
| Output type | PNP |
| Shape | Cuboid |
| Overall length of sensor | 13 mm |
| Height of sensor | 48 mm |
| Width of sensor | 25 mm |
| Switch without actuator | No |
