Описание

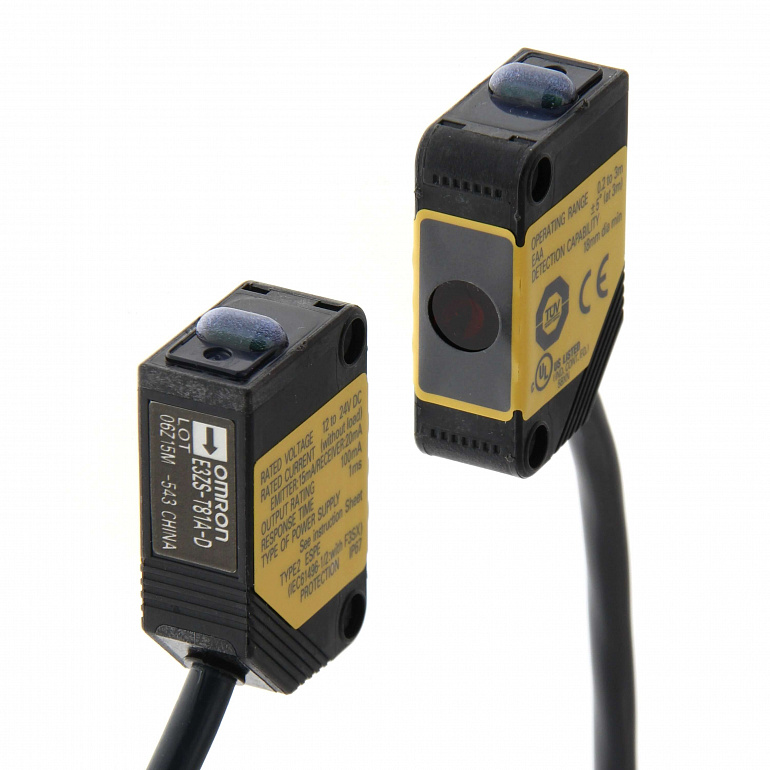

Photoelectric sensor, E3ZS, rectangular housing, through-beam, red LED, PLc, Safety Category 2, 3 m, DC, 3-wire, PNP, 2 m cable
Характеристики
| Sensing method |
Safety single-beam |
| Type of safety according to IEC 61496-1 |
2 |
| Number of beams |
1 |
| Maximum safety range |
3 m |
| Key features |
External test |
| Cascadable |
No |
Все характеристики
| Specifications |
|
| Sensing method |
Safety single-beam
|
| Type of safety according to IEC 61496-1 |
2
|
| Number of beams |
1
|
| Maximum safety range |
3 m
|
| Minimum operating distance |
0.2 m
|
| Key features |
External test
|
| Degree of protection (IP) |
IP67
|
| Cascadable |
No |
| Suitable for safety functions |
Yes |
| Scope of delivery |
Transmitter and receiver
|
| Response time |
1 ms
|
| Wavelength of the sensor |
660 nm
|
| Connection method |
Cable
|
| Supply voltage DC |
12-24 V
|
| Type of switching output of the OSSD |
PNP
|
| Ambient temperature |
-10-55 °C
|
| Product Width (unpacked) |
10.8 mm
|
| Product Height (unpacked) |
31 mm
|
| Product Depth (unpacked) |
20 mm
|
