Фото
Видео
Описание

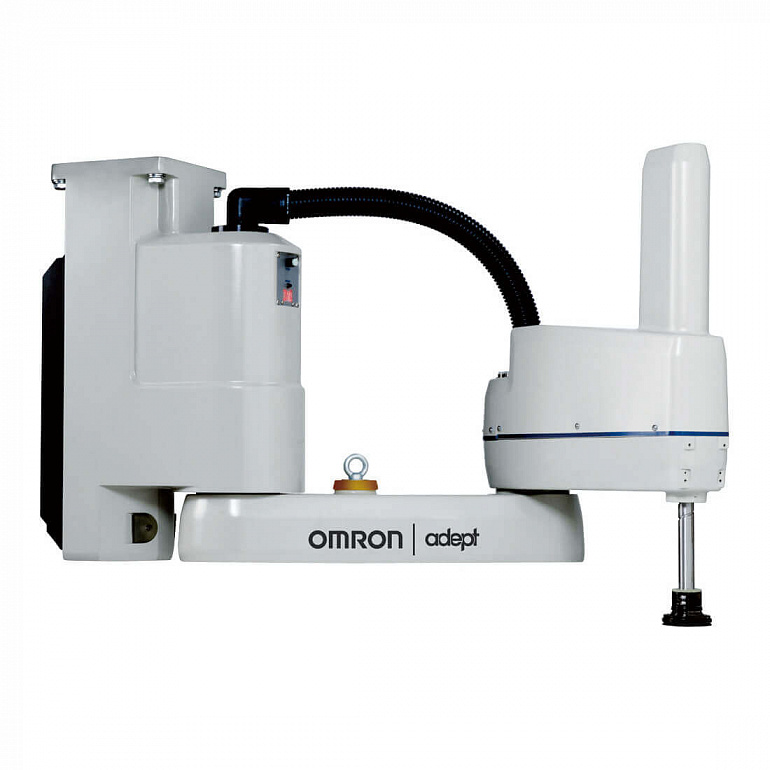

eCobra 800 Pro Inverted, Add-On, 5.5 kg payload, 800mm reach, 4 axis, 210mm Zaxis, IP20
Характеристики
| Payload | 5.5 kg |
| Reach | 800 mm |
| Robot controller | EX Controller |
| eCobra type | Pro |
| Degree of protection (IP) | IP20 |
| Cleanroom class | None |
| ePLC | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for ceiling mounting | Yes |
| EtherCAT communication | No |
| TCP/IP communication | Yes |
| RS232 communication | Yes |
| Vision | Yes |
| Conveyor tracking | Yes |
| PackXpert | Yes |
| Number of I/O-Blox | 8 |
Все характеристики
| Specifications | |
| Robot type | Scara |
| Robot controller | EX Controller |
| eCobra type | Pro |
| Degree of protection (IP) | IP20 |
| Cleanroom class | None |
| Payload | 5.5 kg |
| Reach | 800 mm |
| Z-Stroke | 210 mm |
| Cycle time | 0.54 s |
| Moment of inertia | 450 kg·cm² |
| Repeatability | 0.017 mm |
| Degrees of freedom | 4 |
| Number of joints | 4 |
| Suitable for pedestal/floor mounting | No |
| Suitable for ceiling mounting | Yes |
| ePLC | No |
| EtherCAT communication | No |
| TCP/IP communication | Yes |
| RS232 communication | Yes |
| Vision | Yes |
| Conveyor tracking | Yes |
| PackXpert | Yes |
| I/O-Blox | Yes |
| Number of I/O-Blox | 8 |
